Operation Manual – Multicast Protocol
Quidway S5600 Series Ethernet Switches-Release 1510 Chapter 7 PIM Configuration
Huawei Technologies Proprietary
7-20
II. Network diagram
Lanswitch3
Lanswitch1
RECEIVER 1
Lanswitch2
VLAN10 VLAN11
VLAN12
Multicast
Source
RECEIVER 2
VLAN20
VLAN30
Lanswitch3
Lanswitch1
RECEIVER 1
Lanswitch2
VLAN10 VLAN11
VLAN12
Multicast
Source
RECEIVER 2
VLAN20
VLAN30

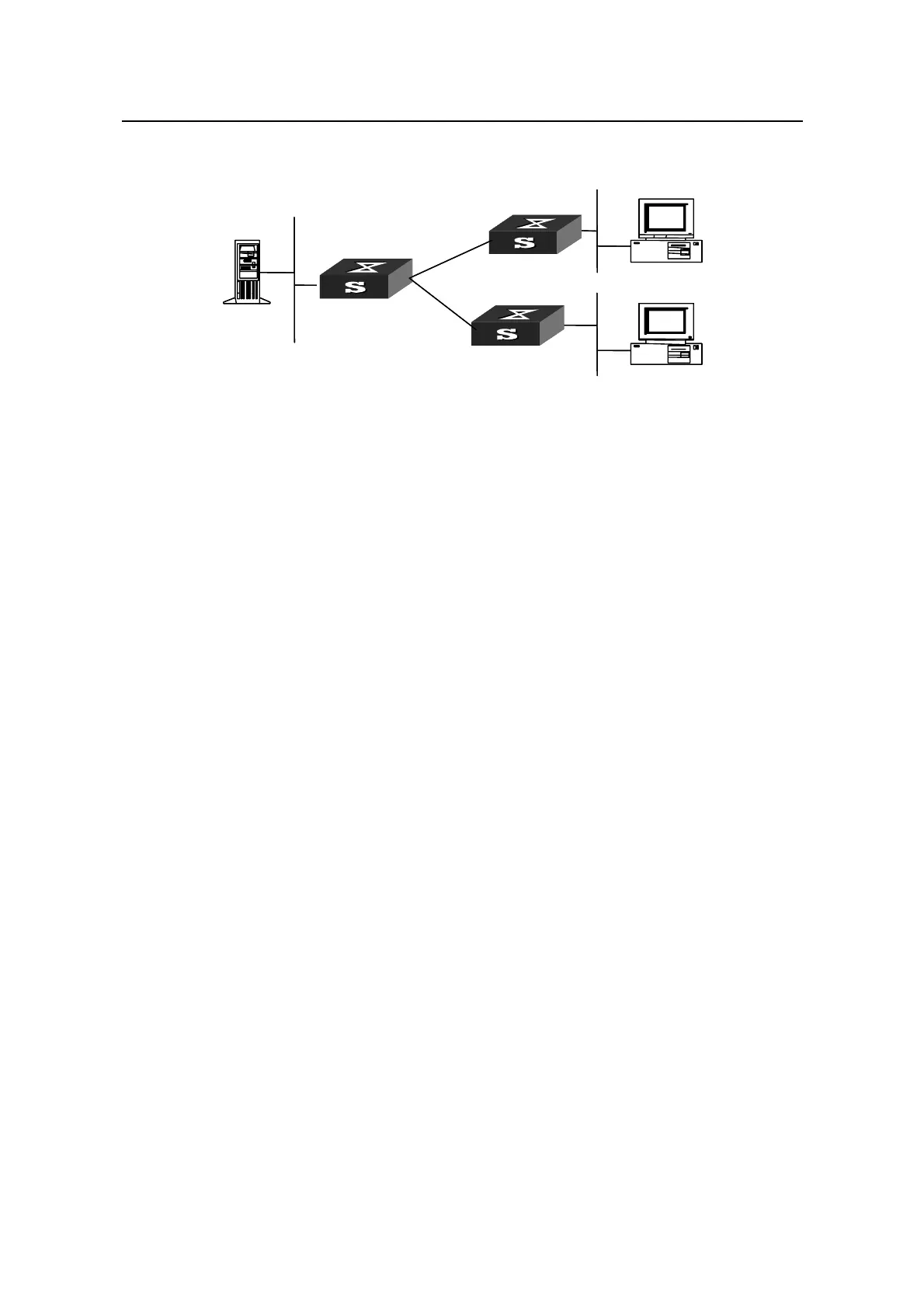

Figure 7-7 Network diagram for PIM-DM configuration
III. Configuration procedure
Only the configuration procedure on Lanswitch1 is listed. The configuration procedure
of Lanswitch2 and Lanswitch3 is similar to that of Lanswitch1.
# Enable multicast routing protocol
<Quidway> system-view
[Quidway] multicast routing-enable
# Enable IGMP and PIM-DM on the interfaces.
[Quidway] vlan 10
[Quidway-vlan10] port GigabitEthernet 1/0/2 to GigabitEthernet 1/0/3
[Quidway-vlan10] quit
[Quidway] vlan 11
[Quidway-vlan11] port GigabitEthernet 1/0/4 to GigabitEthernet 1/0/5
[Quidway-vlan11] quit
[Quidway] vlan 12
[Quidway-vlan12] port GigabitEthernet 1/0/6 to GigabitEthernet 1/0/7
[Quidway-vlan12] quit
[Quidway] interface Vlan-interface 10
[Quidway-Vlan-interface10] ip address 1.1.1.1 255.255.0.0
[Quidway-Vlan-interface10] igmp enable
[Quidway-Vlan-interface10] pim dm
[Quidway-Vlan-interface10] quit
[Quidway] interface Vlan-interface 11
[Quidway-Vlan-interface11] ip address 2.2.2.2 255.255.0.0
[Quidway-Vlan-interface11] pim dm
[Quidway-Vlan-interface11] quit
[Quidway] interface Vlan-interface 12
[Quidway-Vlan-interface12] ip address 3.3.3.3 255.255.0.0
[Quidway-Vlan-interface12] pim dm
