7.6.2 PIM-SM Configuration Example
I. Network requirements
All Ethernet switches are reachable for each other in the practical network.
z LS_A is connected to LS_B through Vlan-interface 10, to Host A through
Vlan-interface 11 and to LS_C through Vlan-interface 12.
z LS_B is connected to LS_A through Vlan-interface 10, to LS_C through
Vlan-interface 11 and to LS_D through Vlan-interface 12.
z LS_C is connected to Host B through Vlan-interface 10, to LS_B through
Vlan-interface 11 and to LS_A through Vlan-interface 12.
Host A is the receiver of the multicast group whose multicast IP address is 225.0.0.1.
Host B begins to send data to the destination 225.0.0.1 and LS_A receives the
multicast data from Host B through LS_B.
II. Network diagram
LSD
LSB
LSC
LSA
HostA HostB
VLAN11 VLAN12
VLAN10
VLAN10
VLAN11
VLAN12
VLAN12 VLAN10
VLAN11

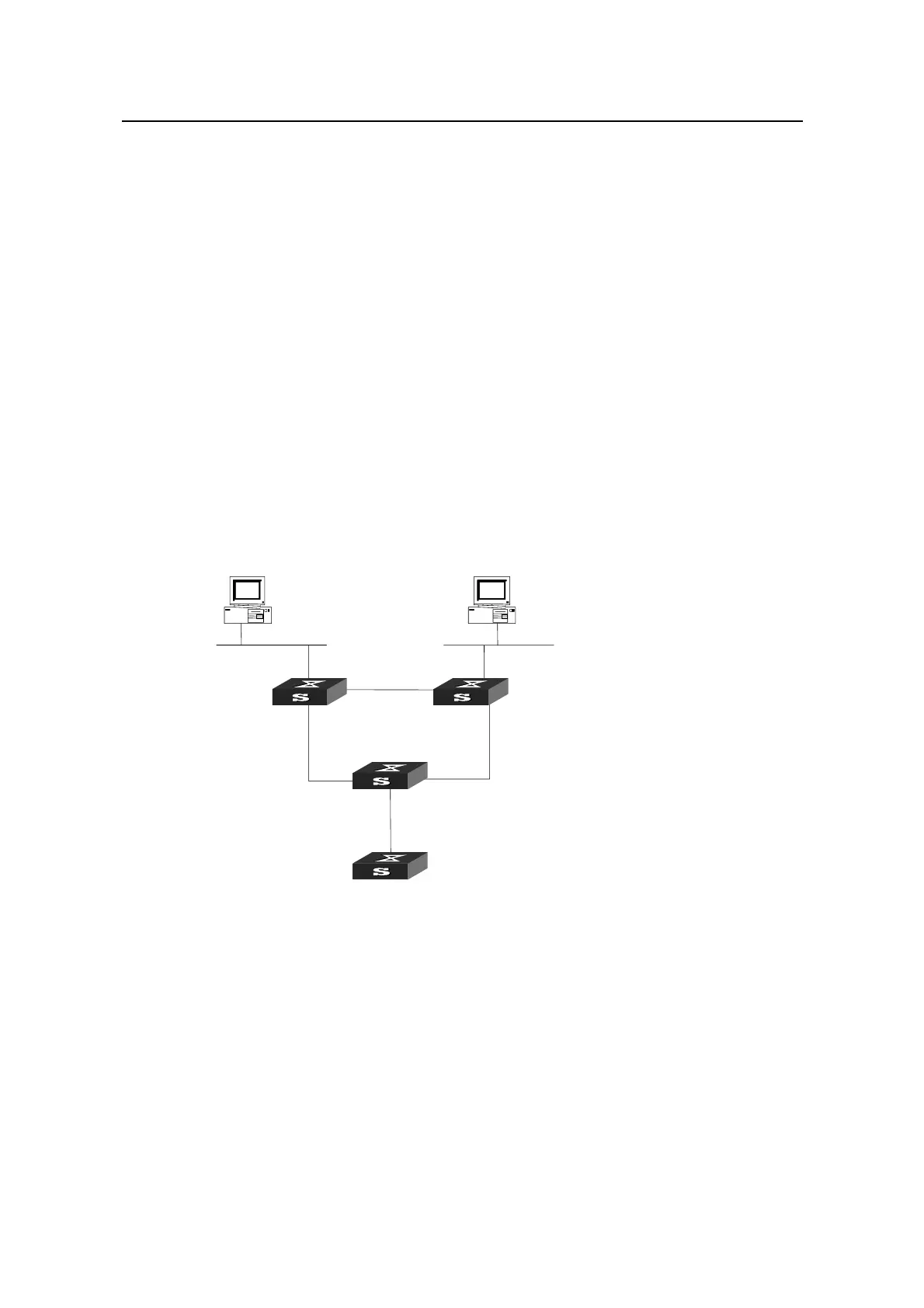

Figure 7-8 Network diagram for PIM-SM configuration
III. Configuration procedure
1) Configure LS_A
# Enable PIM-SM.
<Quidway> system-view
[Quidway] multicast routing-enable
[Quidway] vlan 10
[Quidway-vlan10] port GigabitEthernet 1/0/2 to GigabitEthernet 1/0/3
[Quidway-vlan10] quit
