z Configure an FTP user, whose name and password are switch and hello
respectively. Authorize the user with the read-write right of the Switch directory on
the PC.
z Make appropriate configuration so that the IP address of a VLAN interface on the
switch is 1.1.1.1, the IP address of the PC is 2.2.2.2, and the switch and the PC is
reachable to each other.
The host software switch.bin and the BootROM file boot.btm of the switch are stored
into the directory of the switch. Use FTP to download the switch.bin and boot.btm files
from the FTP server to the switch.
II. Network diagram
PC
Switch
PC
NetworkNetwork
PC
SwitchSwitchSwitch
PC
NetworkNetwork
PC
SwitchSwitchSwitch
PC
NetworkNetwork
PC
SwitchSwitchSwitchSwitchSwitch
PC
NetworkNetwork

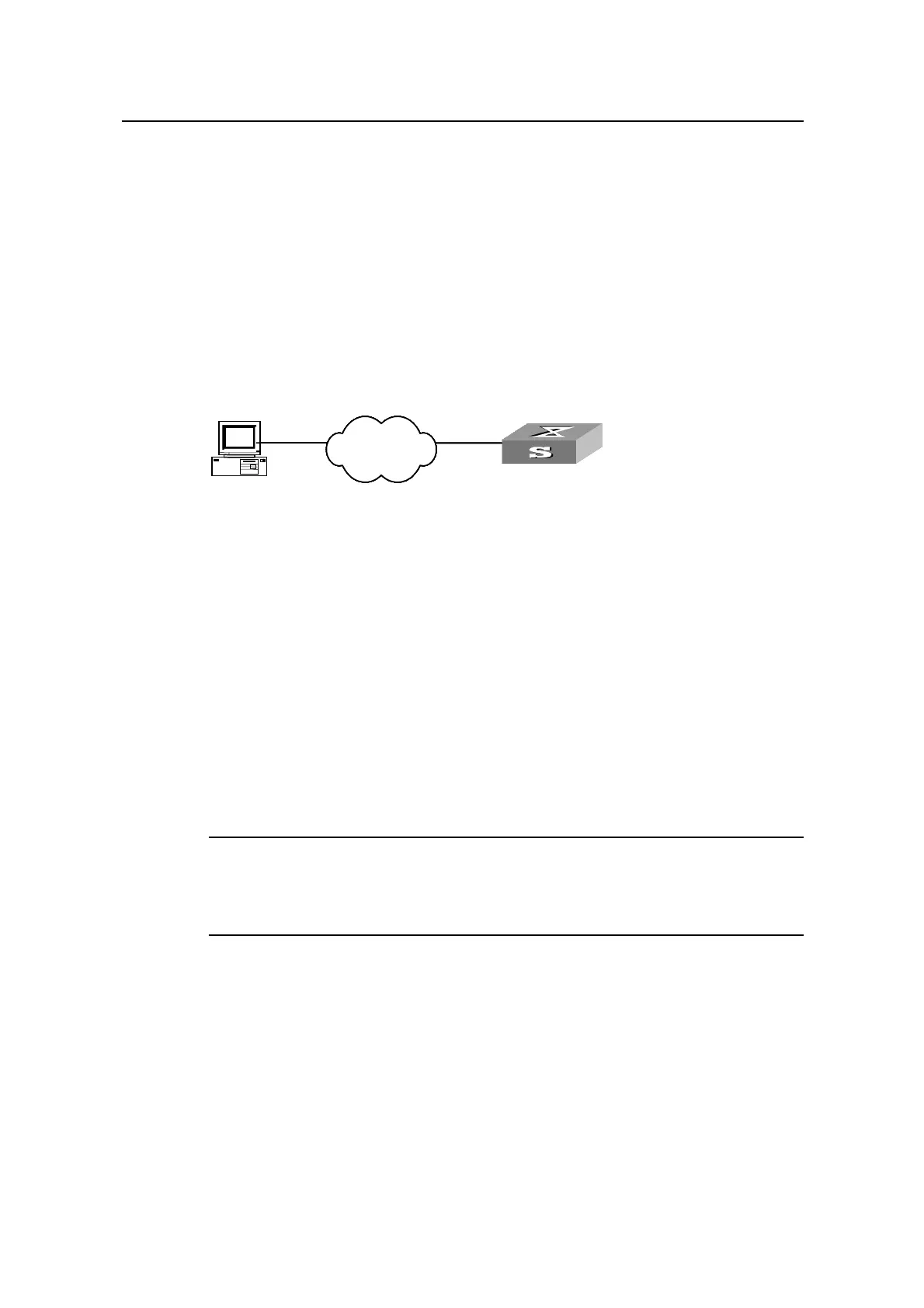

Figure 4-1 Network diagram of FTP configuration
III. Configuration procedure
1) Configure the following FTP server–related parameters on the PC: an FTP user
with the username and password as switch and hello respectively, being
authorized with the read-write right of the Switch directory on the PC. The detailed
configuration is omitted here.
2) Configure the switch as follows:
# On the switch, configure a level 3 telnet user with the username and password as
user and hello respectively. Authentication by user name and password is required for
the user.
 Note:
Refer to the Chapter “Logging into an Ethernet Switch” for configuration commands
and steps about telnet user.
# Execute the telnet command on the PC to log into the switch. The following prompt
appears:
<Quidway>
