Husqvarna TE511 - Valve Clearance Check

F.3
H01716
H01715
ADJUSTMENTS - ENGINE
1
st
edition (08-2010) _Rev. 11-2010

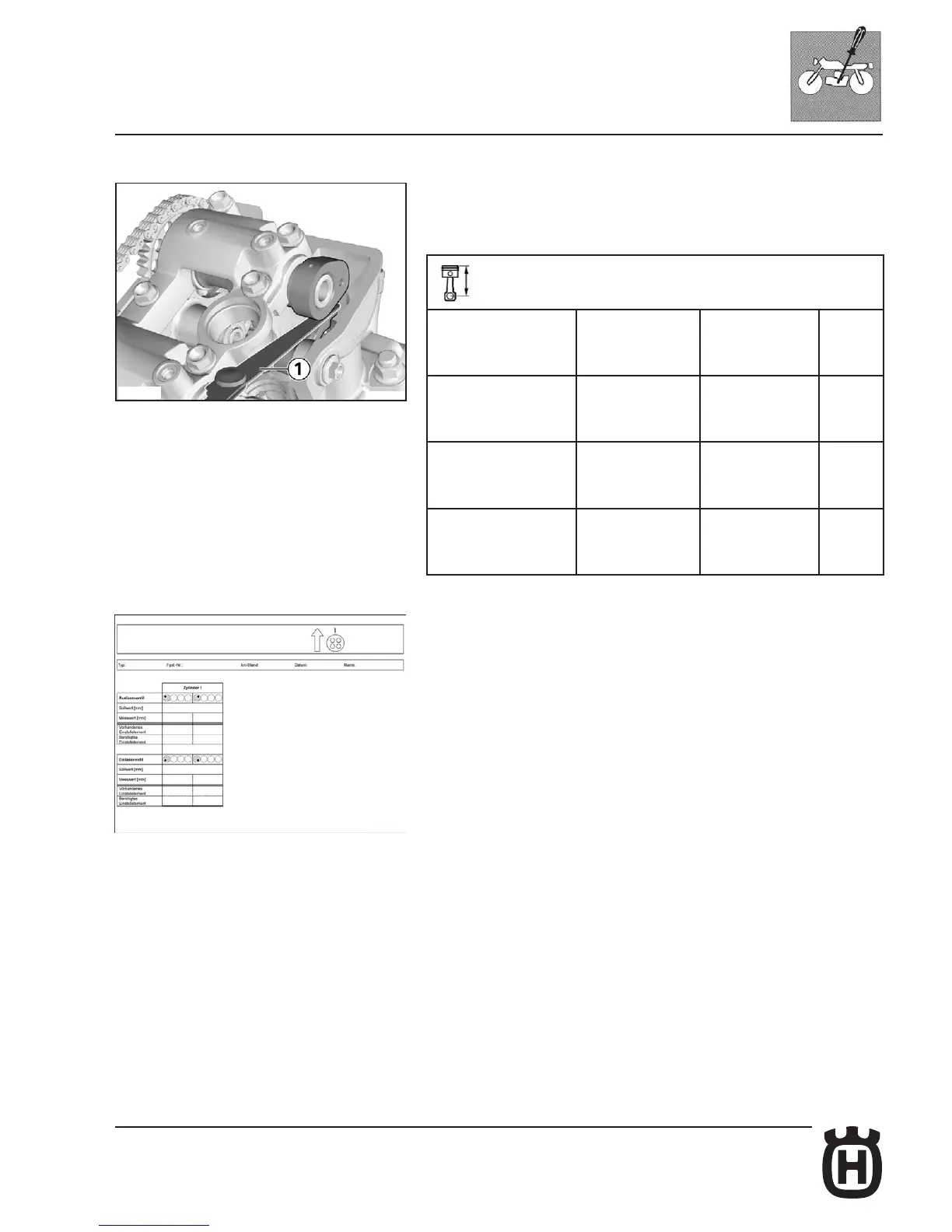

Remove head cover as described in section F1
Check
• Check valve clearance using a feeler gauge (1).
Technical specications
Intake valve clearance with cold engine
Max. 35 °C
0,71...15,65 in
(0,05...0,10 mm)
TE - TXC
- SMR
Intake valve clearance with cold engine
Max. 35 °C
2,84...3,56 in
(0,20...0,25 mm)
TC
Exhaust valve clearan-
ce
with cold engine
Max. 35 °C
3,56...4,27 in
(0,25...0,30 mm)
TE - TXC
- SMR
Exhaust valve clearan-
ce
with cold engine
Max. 35 °C
4,27...4,98 in
(0,30...0,35 mm)
TC
Result: Valve clearance outside tolerance values.
Action:
• When assembling, use adjuster plates, and the correct half-balls.
Take note of readings.
• Take note of readings on a measurement card.
Valve clearance check
