Husqvarna TE511 - Set Valve Clearance

F.4
H01727
H01712
H01713
8000H5009
ADJUSTMENTS - ENGINE
1
st
edition (08-2010) _Rev. 11-2010

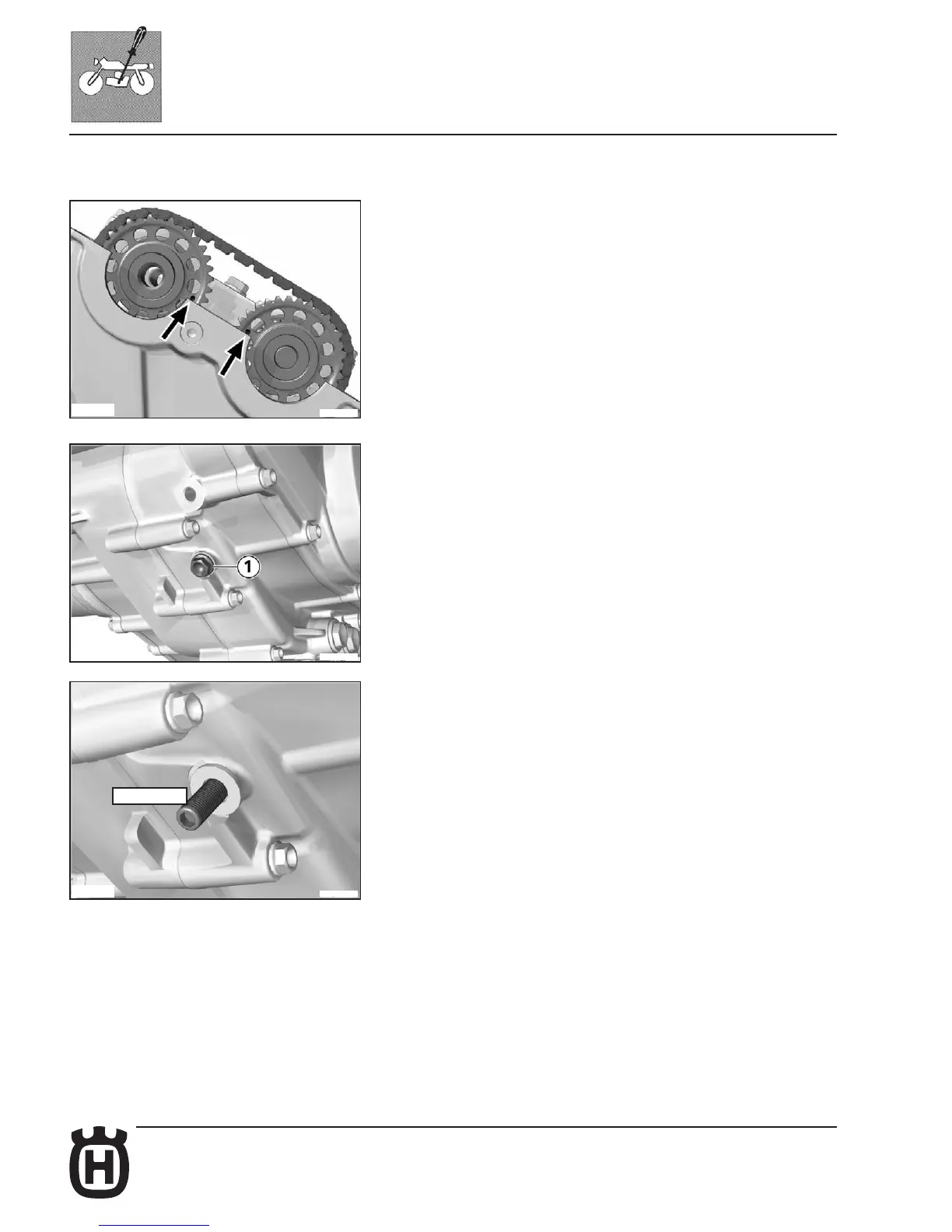

Engine positioning at ignition TDC
• Turn engine until reaching TDC.
• Reference marks (arrows) parallel with cylinder head.
Securing crankshaft at TDC
• Remove screw (1) with sealing ring.
• Lock crankshaft at TDC using special tool (8000H5009).
Set valve clearance (cylinder head cover removed).
