Chapter 7 Appendix7.1 Work and Tool Coordinate System Features for Linear Axis
244
7.1.1 Coordinates for Coordinate System Definition Unit
The coordinate system for the coordinate system definition unit consists of four coordinate axes at
the maximum (X-axis, Y-axis, Z-axis and R-axis).
At this time, it should be premised that the physical axes applicable for each coordinate axis satisfy
the following conditions.

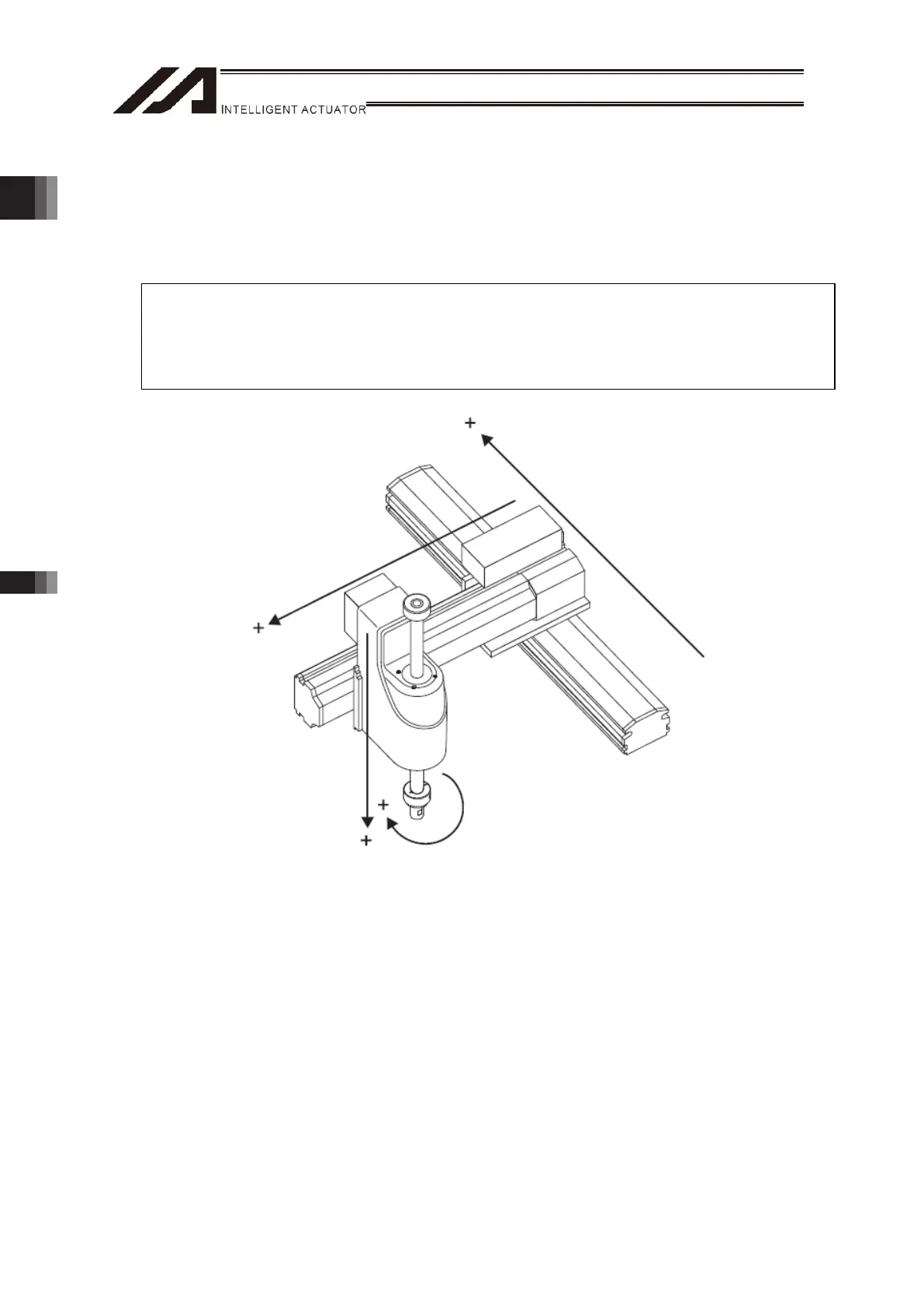

Figure: Example for orthogonal unit satisfying conditions above
・X-axis, Y-axis and Z-axis are laid orthogonally to each other.
・The center axis of rotary for the R-axis is laid orthogonally to XY plane. (It is parallel to Z-axis if
there is Z-axis.)
・A tool is attached on the R-axis if there is R-axis. (It should be premised that the tool attachment
datum point is on the R rotation axis.)
Y-Axis
X-Axis
Z-Axis
R-Axis
