Chapter 2 Installation 2.3 How to Install
75
2.3.2 How to Fix Unit
This product is equipped with rubber legs that provide the structure to prevent from moving the unit
easily during its operation.
There may be a case that the unit moves depending on the condition of use (such as load weight or
acceleration/deceleration speed).
By using the optional fixing brackets, move of the unit can be prevented.
Attached the fixing brackets to the T-grooves on the body with M6 × 12 hex socket head cap screws.

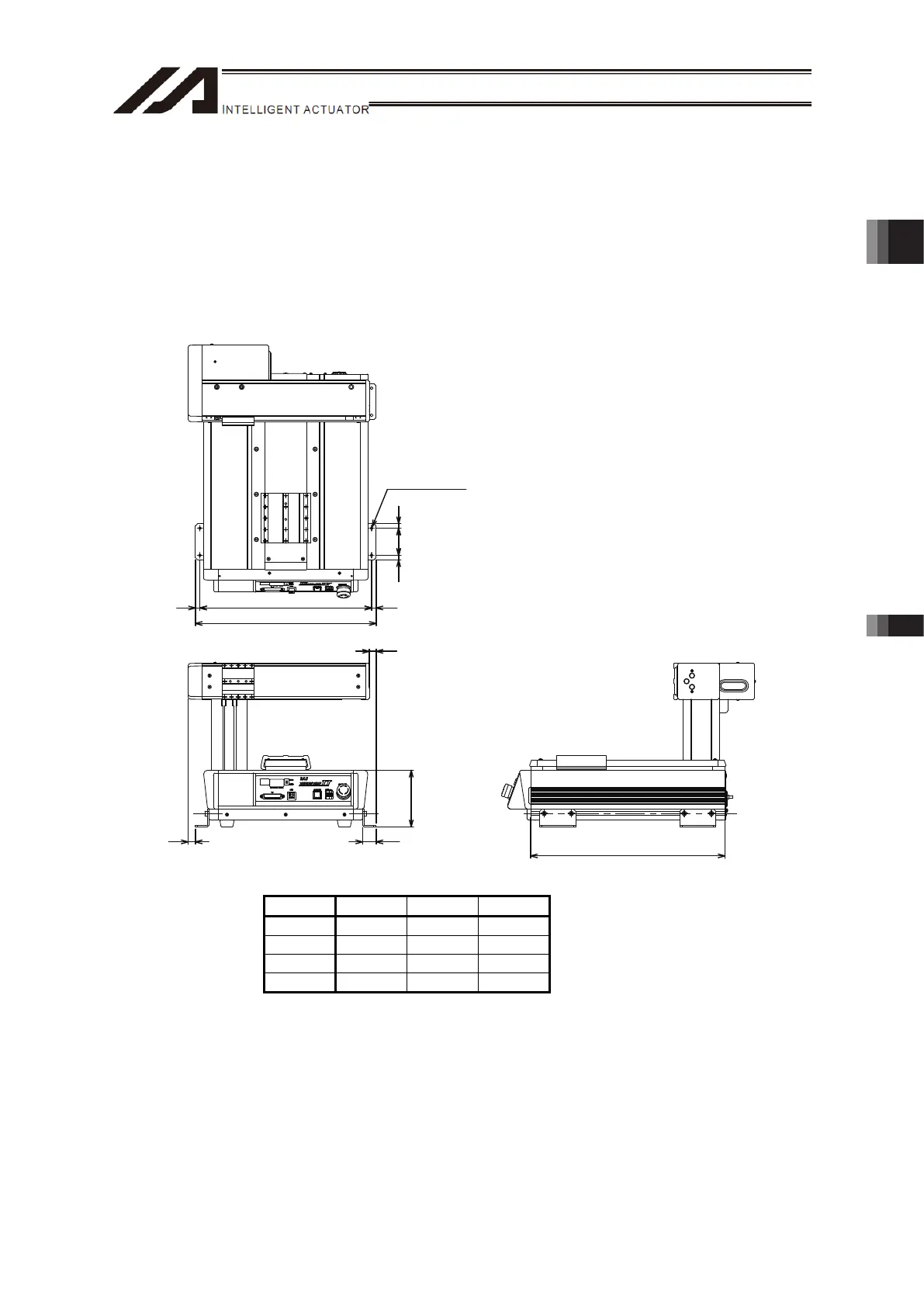

[1] Work Moving Type
125
15
3016
T-Groove Length: L2
A10 10
(L1)
60 1010
2-φ6.5 Through
Model L1 L2 A
2020 400 430 380
3030 500 530 480
4040 600 630 580
5050 700 730 680
To Next Page
