Chapter 2 Installation2.3 How to Install
78
2.3.4 Loadable Weight on Table
Refer to the table below for the weight available to load on TTA Table portion (top surface of main unit,
portion other than the slider for the table moving type).
Loadable Weight on Table
Model Mass [kg]
A-2020 20
A-3030 30
A-4040 40
A-5050 50
C-2015 40
C-3025 60
C-4035 80
C-5045 100

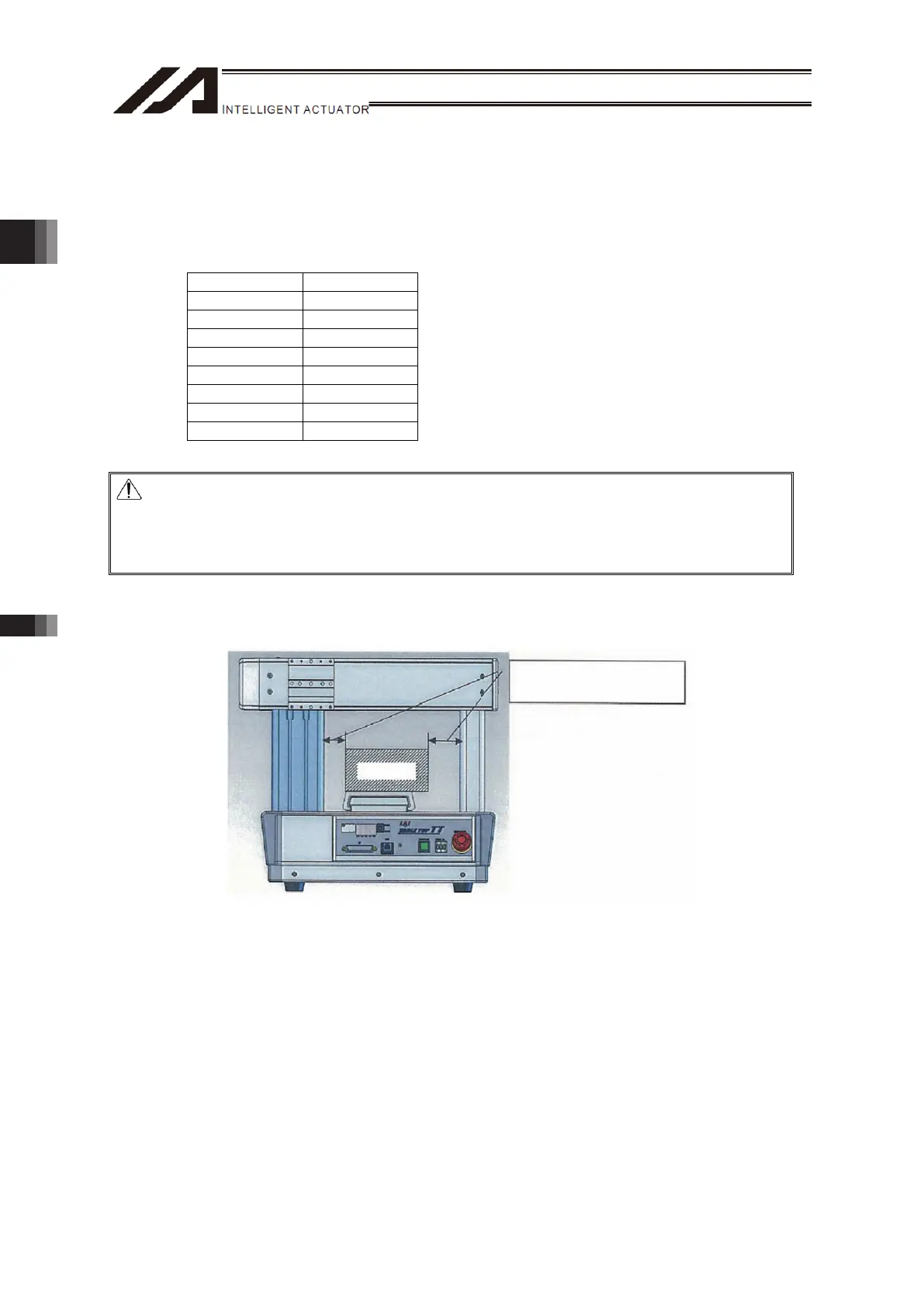

Secure 2mm or more of clearance to the frames on the main body when loading a work piece on the X
slider.
Work Piece
Secure 2mm or more
clearance in these areas
Caution: Rubber feet to support the main unit get compressed by a work piece, tools and
table load. The amount of compression is approximately 1.0mm when the
maximum loaded weight is applied.
The unit may get tilted depending on the position to apply a load. Consider to fix
the main unit if necessary.
To Next Page
