Chapter 2 Installation 2.3 How to Install
79
2.3.5 How to Attach Supportive Tools
There are T-grooves equipped on the main unit and the frame to support the Y-axis. By using a nut,
supportive tools can be attached.
It is recommended to apply a T-nut or square nut on the T-groove, but a hexagon nut can also be used.
Pay attention to the screw length so the tip of the screw would not touch the bottom of the T-groove
when attaching.

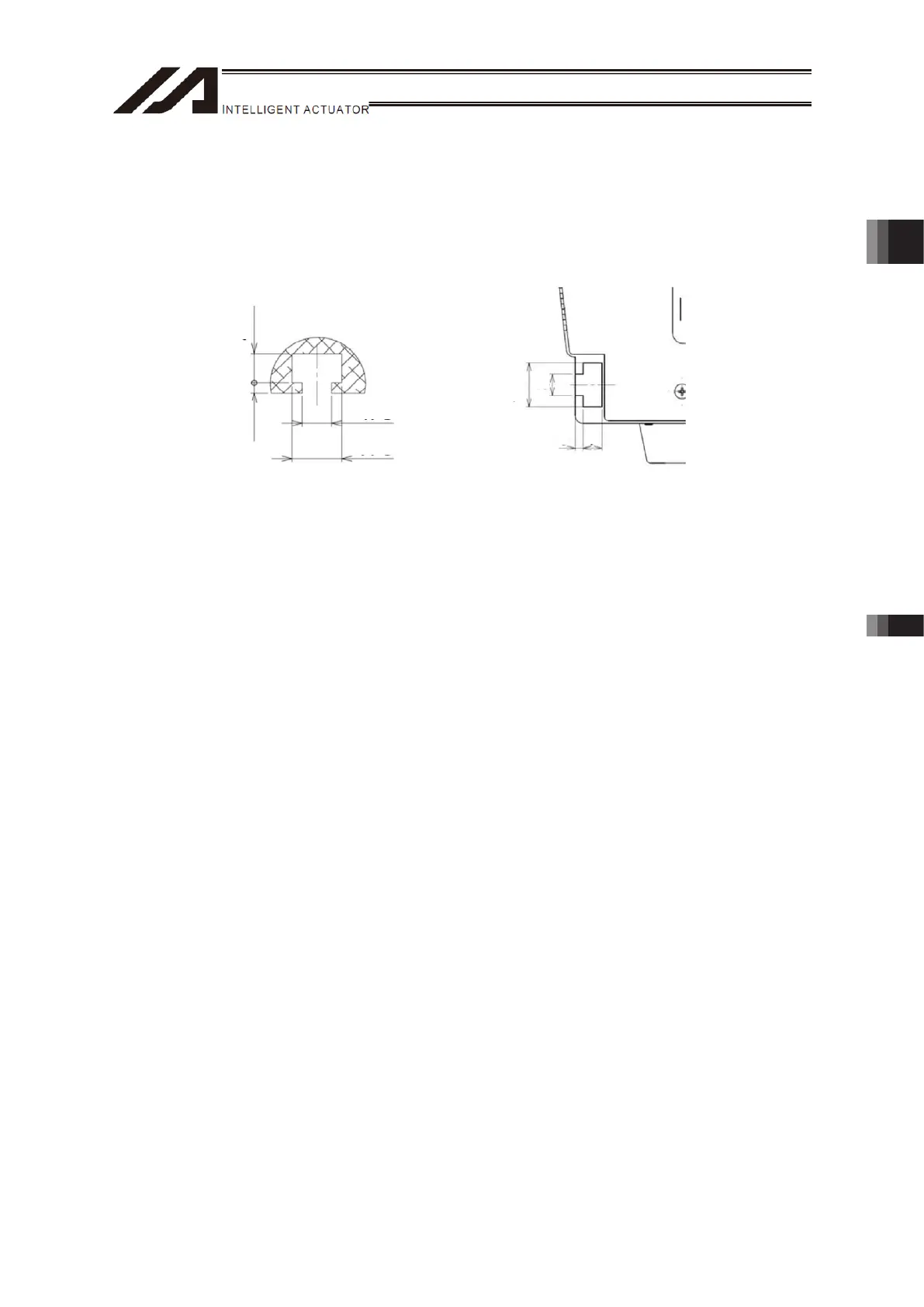

T-Groove on Frame
T-Groove on Main Unit
3
7
4.3
7.3
4.5 1.5
8
16.5
