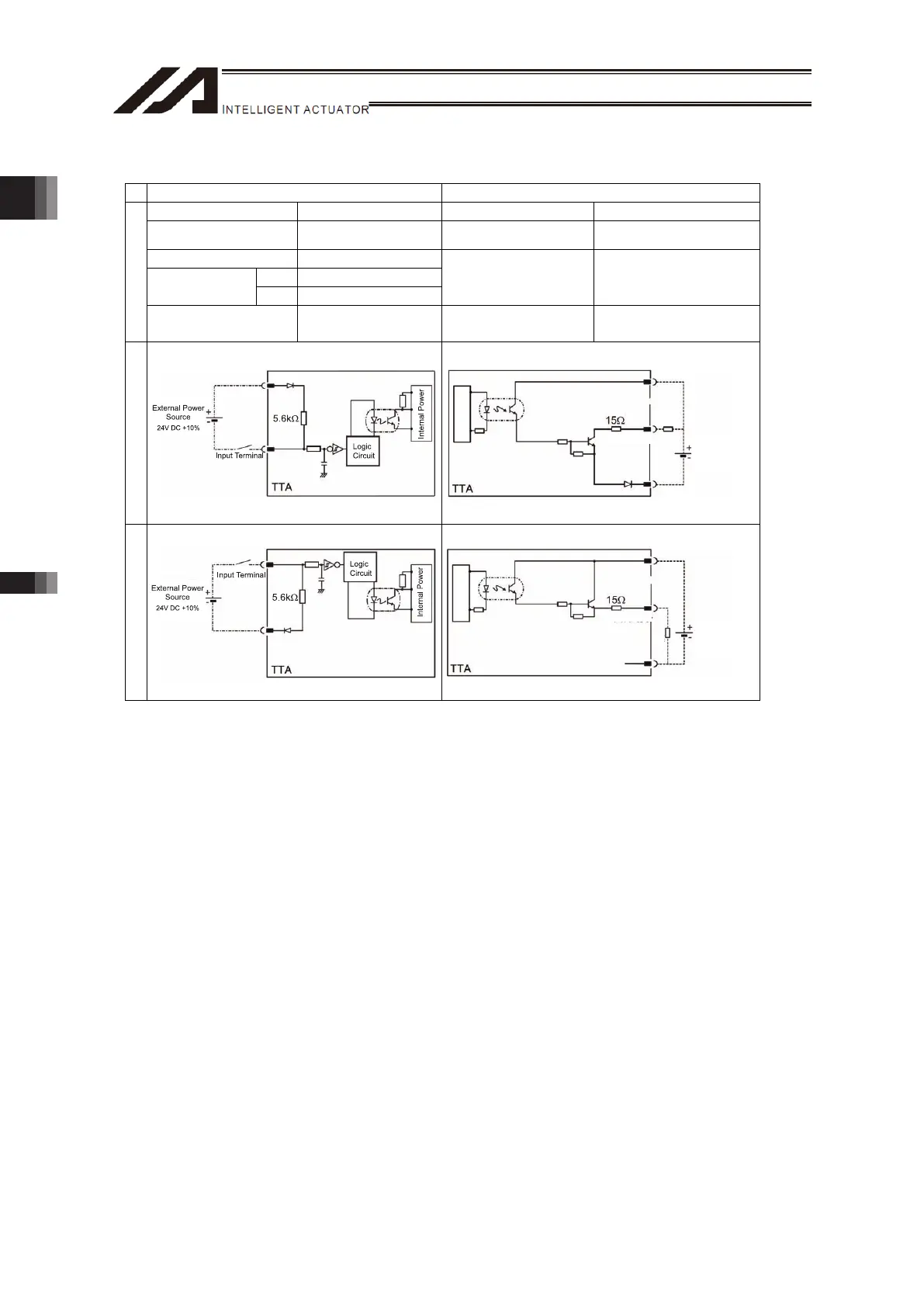

Chapter 1 Specications Check1.3 Electrical Specications

1.3.4 Extension I/O Input and Output Interface

Input Section Output Section

Input Points 16 points Output Points 16 points

Input Voltage 24V DC ±10% Load Voltage 24V DC ±10%

Input Current 4mA / per output

ON Min. 18V DC ON/OFF

Voltage

OFF Max. 6V DC

Load Current 50mA/1 per circuit

Type

Insulation Type

Photocoupler

Insulation

Insulation Type

Photocoupler

Insulation

NPN

Load

External Power

Source

24V DC +10%

Internal Power

Output Terminal

PNP

Note 1: The maximum load current total becomes 400mA for every 8 ports from Output Port No. 316.

(Maximum in every point is 100mA)
