IAI TTA Series User Manual

Chapter 1 Specications Check 1.1 Product Check
37

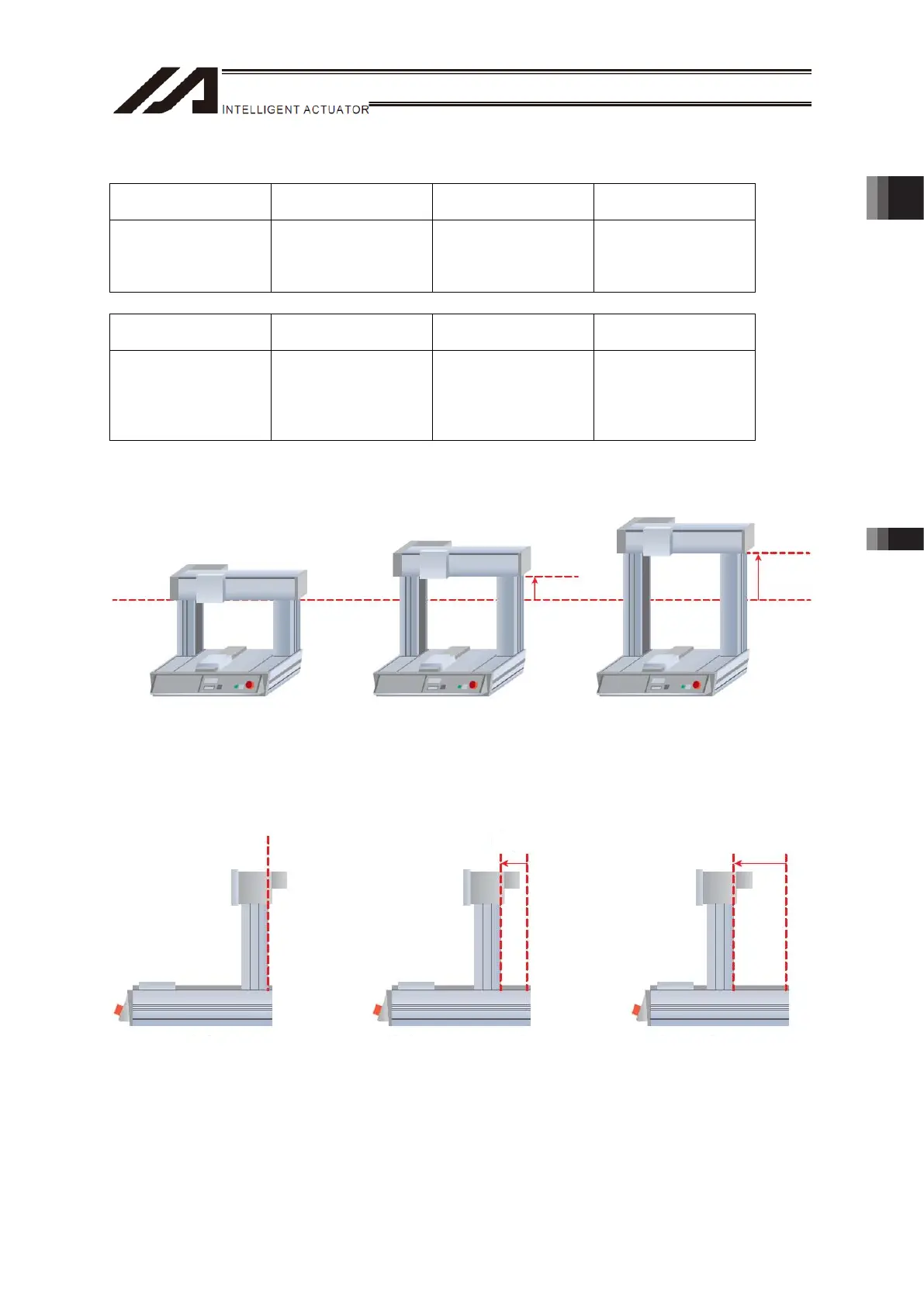

1.1.5 Model Codes for Option of Y-axis Mount Position Change
Standard
Higher in +50mm
from standard
Higher in +100mm
from standard
Model code for
changed in Y-axis
mounting position in
height
- H1 H2
Standard
Forward in +90mm
from standard
Forward in +180mm
from standard
Model code for
changed in Y-axis
mounting position in
back and forth
direction
- F1 F2
Y-axis mounting position in height * The figure below shows TTA in view from front
Y-axis position in back and forth direction * The figure below shows TTA in view from top
Standard
Height
50mm
100mm
(Standard) H1 (Standard+50mm) H2 (Standard+100mm)
(Standard) F1 (Forward in 90mm from standard) F2 (Forward in 180mm from standard)
Standard Position
90mm 180mm
