17

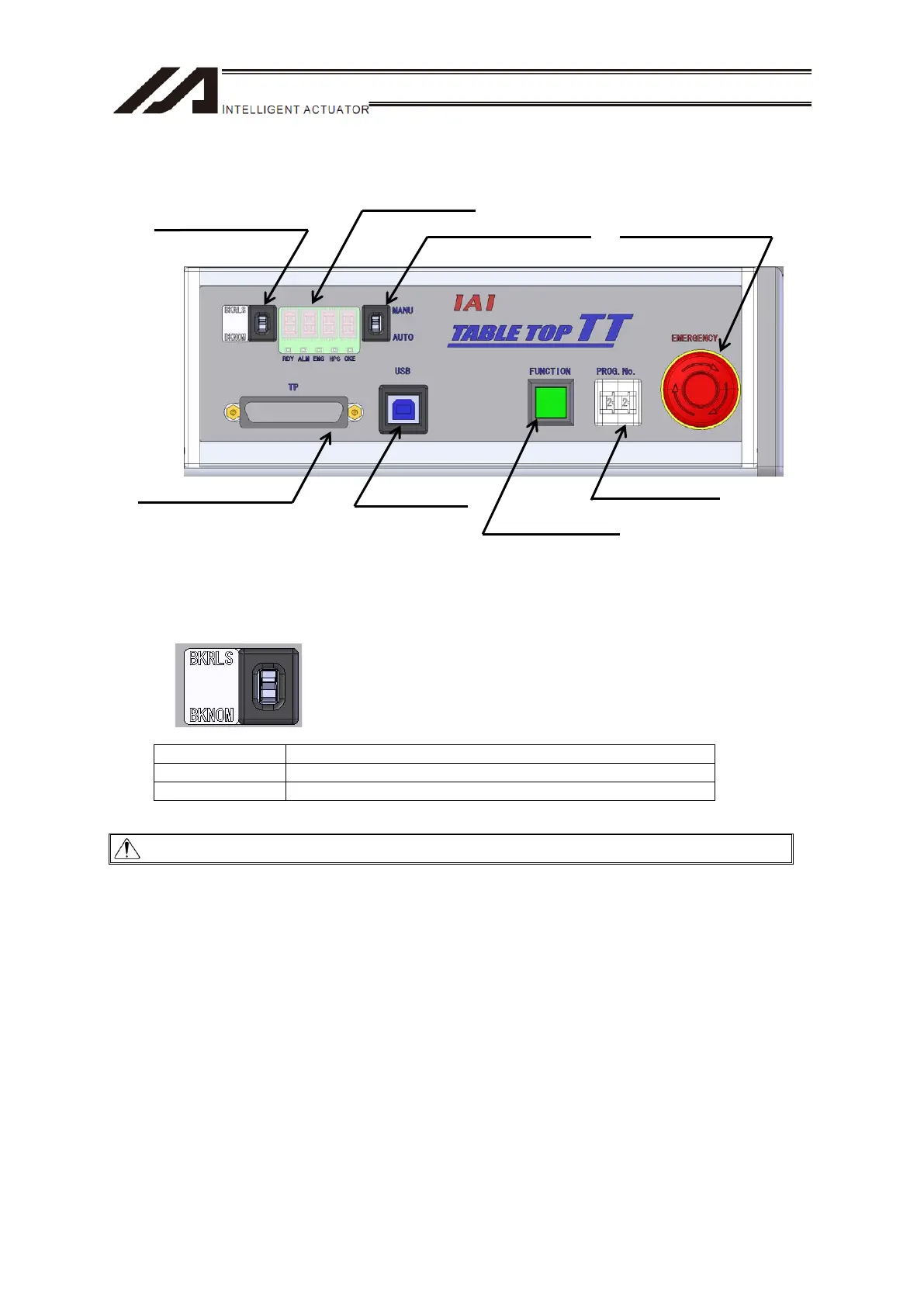

<Details of Front Panel>
1)
Brake Releasing Switch (3rd axis)
It is a switch to release the Z-axis brake.
It is set to the compulsory brake release by putting it upside (BKRLS side), and automatic control by
controller by putting it downside (BKNOM). It should be set downside (BKNOM) in ordinary use.
Switch Condition Description
BKNOM Brake control by controller internal process. Ordinary setting
BKRLS Electromagnetic Brake Compulsory Release
Caution: This switch will not be activated unless the main power is turned on.
1) Brake Releasing Switch
(3rd axis)
3) Operation Mode Switch
6) Function Switch
(Start Switch)
5) Program Switch
2) Panel Window
7) USB Connector
8) Teaching Tool Connector
4) Emergency Stop Switch
