30

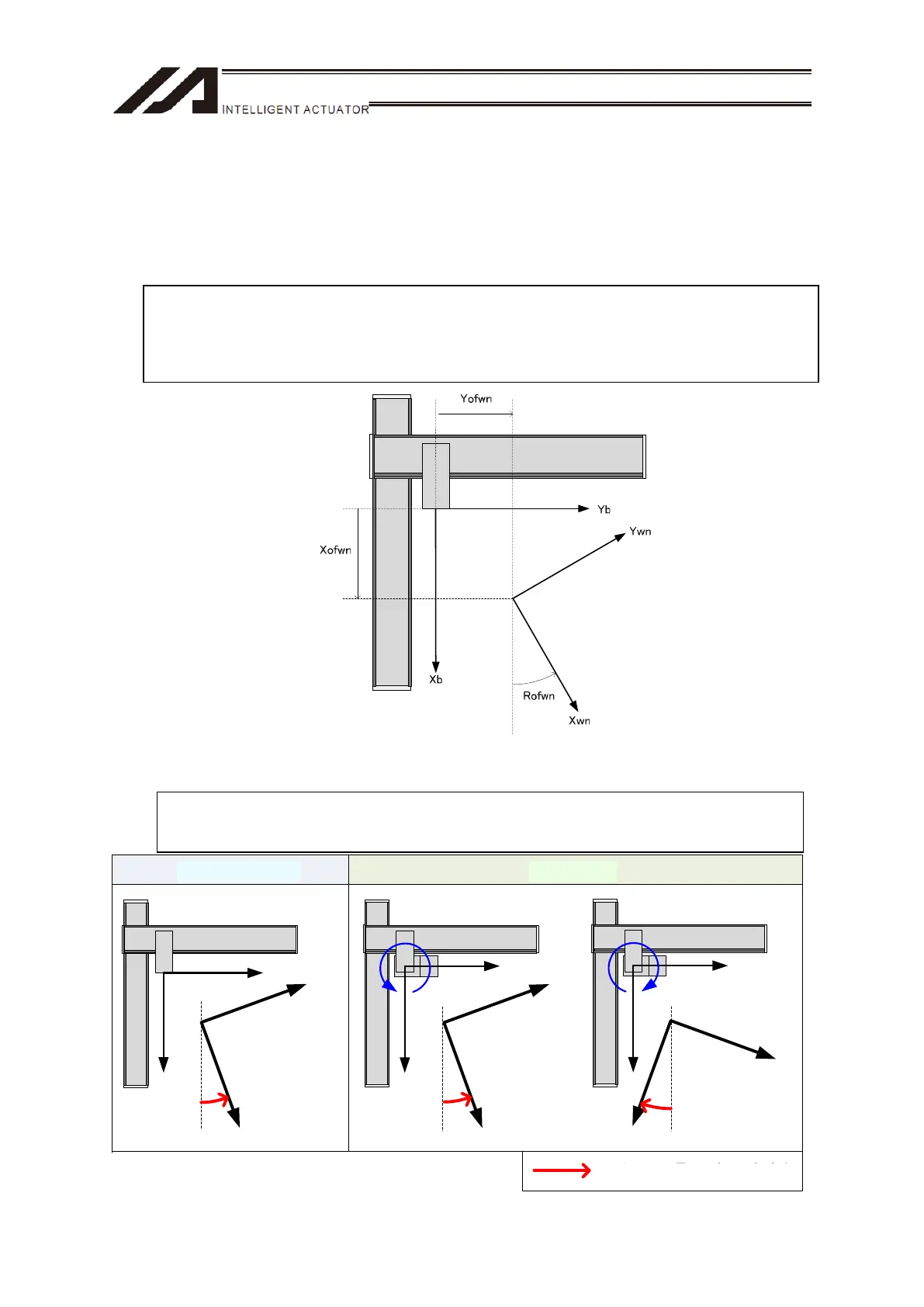

3. Work Coordinate System
It is the 32 kinds of coordinate systems defined by the offset of each axis against the base
coordinate system.
Work Coordinate System No. 0 is reserved as Base Coordinate System (= Work Coordinate
System Offset = 0) by the system.
Set the offset of each axis as described below.
Also, the direction of the coordinate system rotation (positive direction of R offset) is defined as
described below by the axis structure of the coordinate system definition unit.
Xb
Yb
Xb
Yb
Rb
Xwn
Ywn
Xwn
Ywn
： Rオフセット量 > 0時の回転方向
R軸なし R軸あり
Xb
Yb
Rb
Xwn
Ywn
When no R-axis in constructing axes Rotating Direction from Xb positive direction
to Yb positive direction
When there is R-axis in constructing axes Rb + Direction
X, Y, Z Offset
Distance from the base coordinate system home to the work coordinate system home along
Xb, Yb and Zb directions
R Offset
Amount of work coordinate system rotation when base coordinate system taken as the datum
Without R-Axis With R-Axis
R Offset > Direction of Rotation at 0
To Next Page
