9-26 FLIGHT CONTROLS / ROLL CONTROLS
ICON A5 / MAINTENANCE MANUAL CHANGE C3

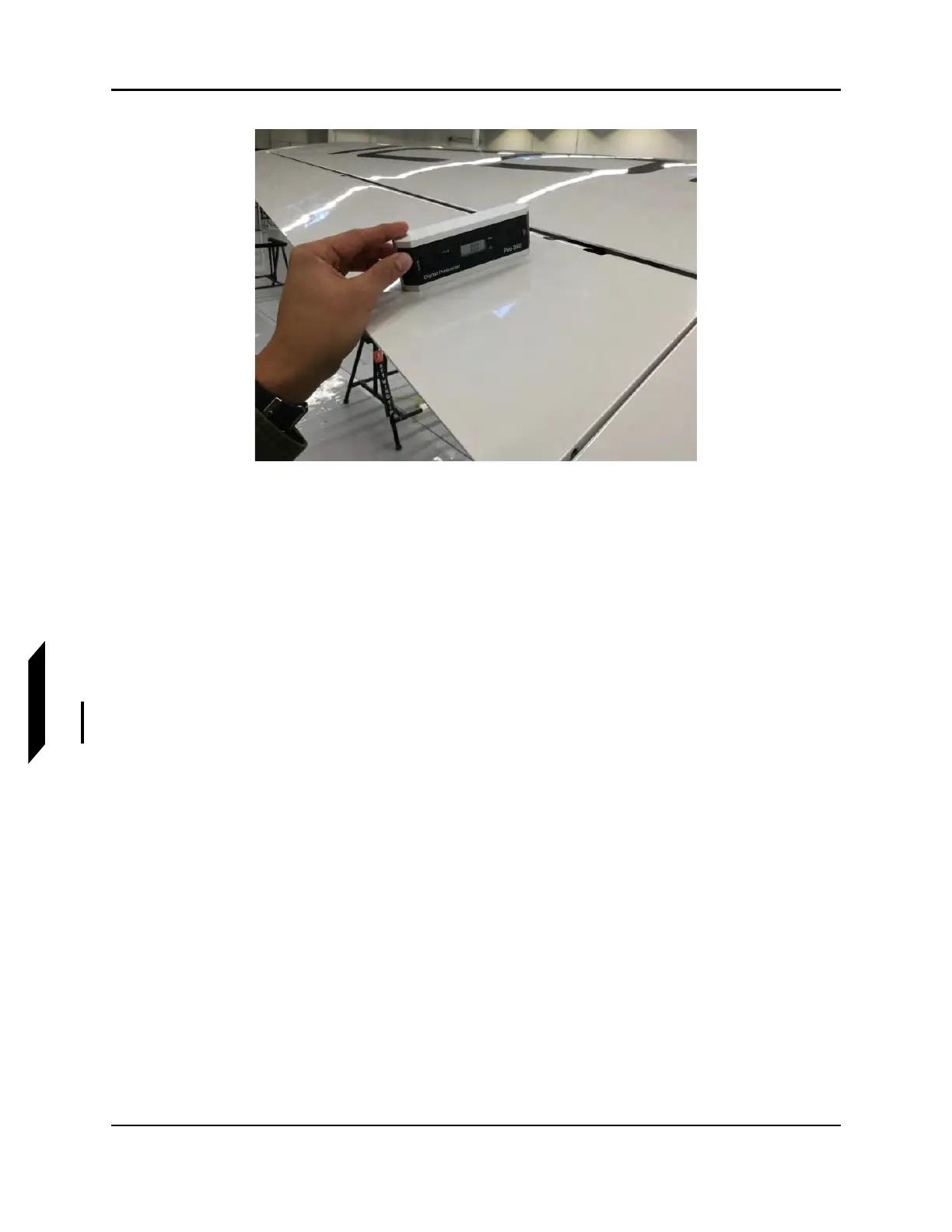

FIGURE 9-19
AILERON DIGITAL PROTRACTOR
17. Remove all rig pins that have been installed.
a. 2X Wing socket bellcrank rig pins
b. 2X Outboard roll bellcrank rig pins
c. Control stick rig pin
18. Ensure ailerons maximum travel limits are set as specified.
a. Trailing Edge Down: 15°+/-2°
b. Trailing Edge Up: 25°+/-2°
19. Check the LH and RH roll secondary stop. (See “Inspect Roll Rigging” on page 9-17. Step 4.)
20. Remove FWD pitch sector rig pin.
