FLIGHT CONTROLS / ROLL CONTROLS 9-27
CHANGE C3 ICON A5 / MAINTENANCE MANUAL

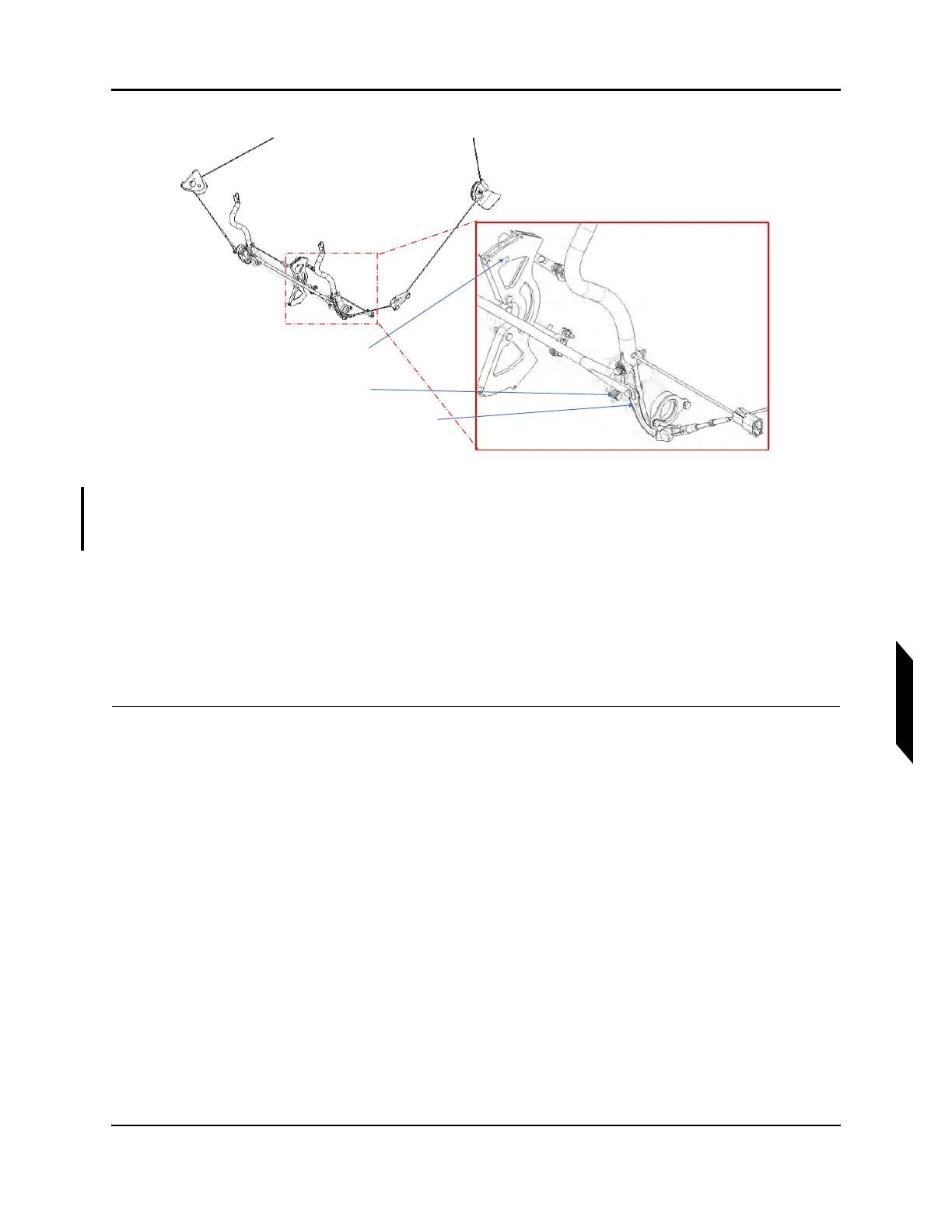

FIGURE 9-20
LOCATION OF SECONDARY ROLL STOP
21. Install seatbelt reel cover, left hand and right hand baggage sidewalls, and baggage headliner. If
the overhead console was removed, re-install.
22. Install baggage floor boards using hardware retained during removal. (See “Baggage Floor Instal-
lation” on page 3-42.)
23. Install seat back and seat pan using hardware retained during removal.(See “Seat Back Installa-
tion” on page 3-51.)(See “Seat Pan Installation” on page 3-53.)
24. Install cockpit floor boards.(See “Cockpit Floor Board Installation” on page 3-47.)
25. Install aileron access panel using retained fastening hardware.
VERIFICATION METHOD:
Conduct the Inspect Roll Rigging procedure (See “Inspect Roll Rigging” on page 9-17.) to verify proper
rigging.
FWD Pitch Sector Rig Pin Hole
Secondary Stop
Control Stick Rig Pin Hole
