To install ELT ANTENNA, see Figure 13-13 below:
5. Ensure its seal is in its groove.
6. Insert antenna through noted hole in cowl. Ensure antenna is oriented as shown.
7. If no ground wires are in place:
a. Install ground wires (4 terminals) on lower unpainted side of cowl and secure using star
washer and nut. Ensure that each ring terminal is at a 90° angle from one another.
b. Orient the four ground wires 90° from one another as shown. (See Figure 13-14.)
c. Temporarily secure ground wires using tape.
d. Add Loctite 243 and torque nut to 13-15 in-lbs. Ensure ground wire terminals do not rotate.

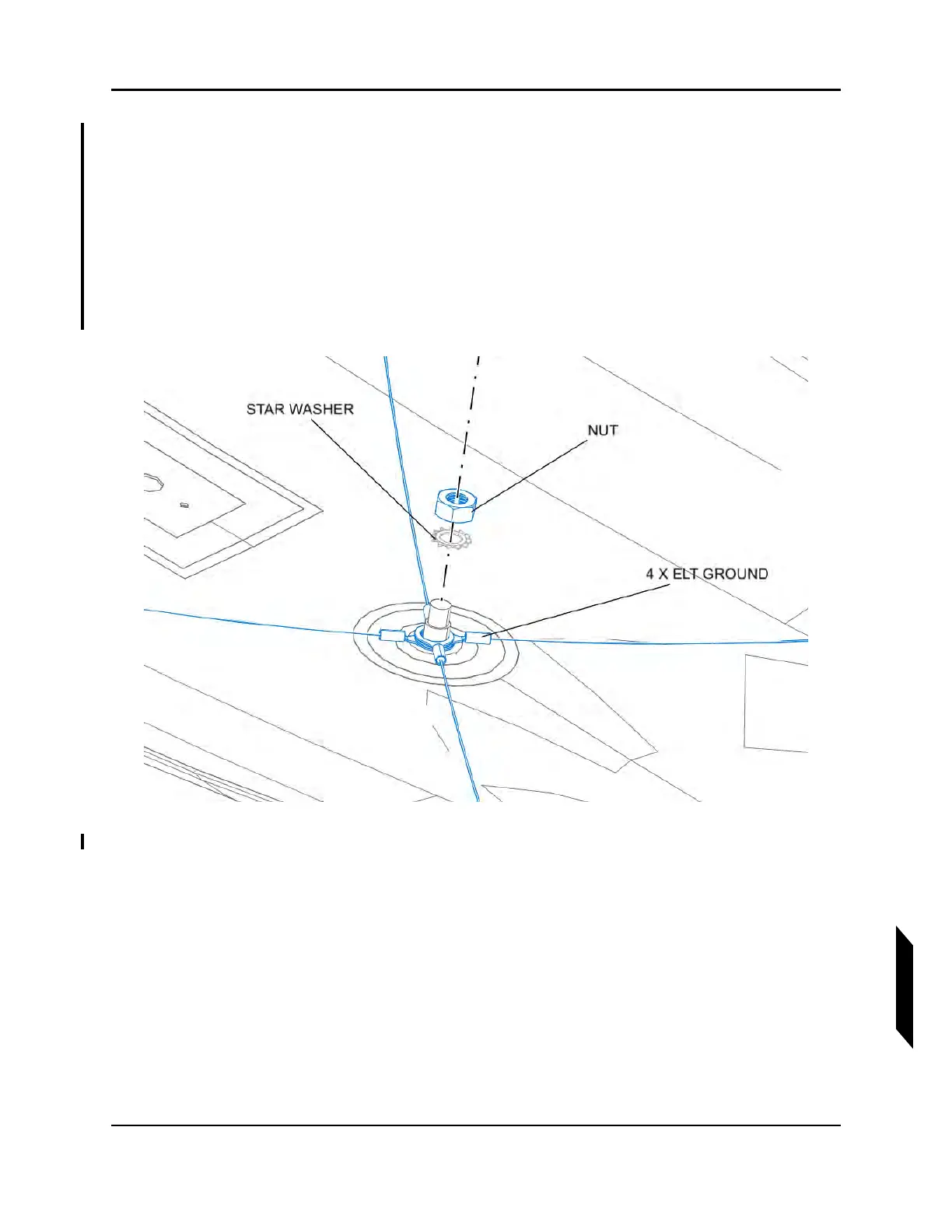

FIGURE 13-13
INSTALL ELT ANTENNA
