14-30 LANDING GEAR / BRAKE LINE
ICON A5 / MAINTENANCE MANUAL CHANGE C2
HEA12 Olive (compression sleeve)
Appropriate Fitting (HYD-008P Straight B-nut, HEA01 Banjo, etc.)
Aircraft System and Number
11—Landing Gear
Consumables
Tef-Gel
®
1. Cut hose to length with a pair of sharp hose or wire cutters.
2. Clean any debris from cut end and gently reshape back to circular section with a pair of pliers
(see Figure 14-13).

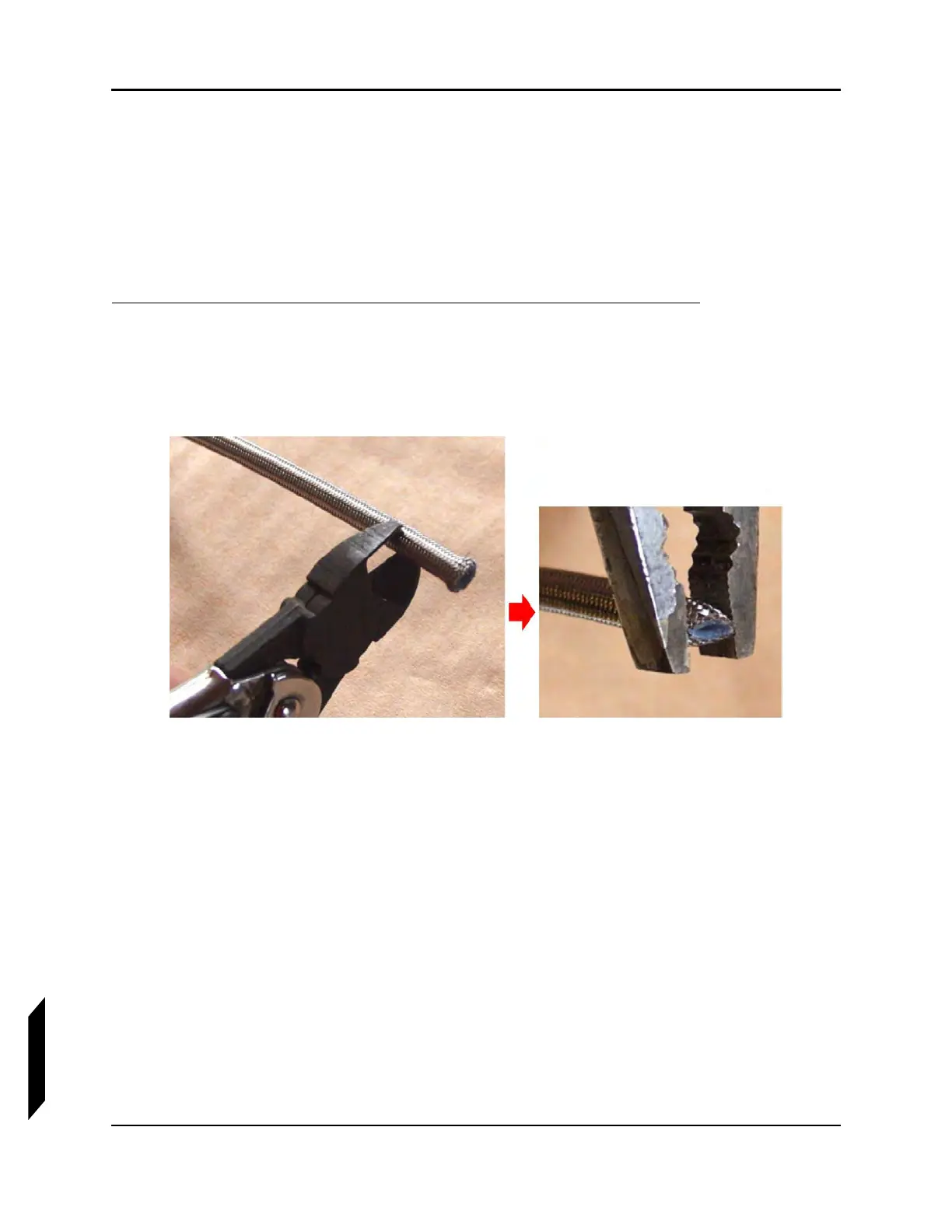

FIGURE 14-13
GENERAL BRAKE LINE TERMINATION
3. Disassemble hose end fitting into its component parts, socket, olive, and main body (see Figure
14-14 for example using a banjo fitting).
