LANDING GEAR / BRAKE LINE 14-31
CHANGE C2 ICON A5 / MAINTENANCE MANUAL

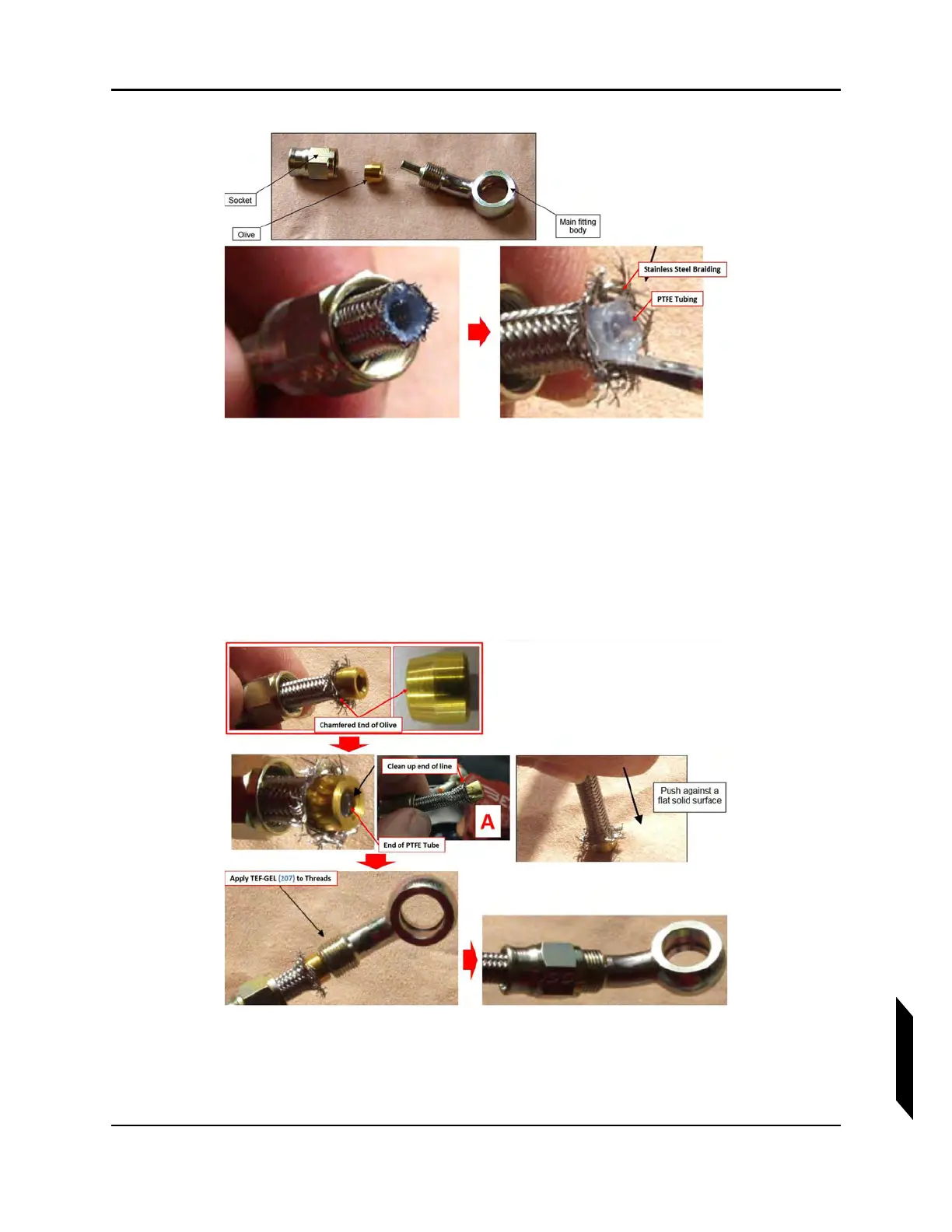

FIGURE 14-14
GENERAL BRAKE LINE TERMINATION
4. Place the socket over the end of the hose, orienting it as shown, with the female threaded end
towards the end of the hose.
5. Use a small slot-head screwdriver to flare out the stainless steel braid at the end of the hose,
separating them from the hose’s PTFE inner liner for a length of .2 inches minimum (see Figure
14-14).
6. Push the chamfered end of the olive onto the PTFE inner liner and under the stainless steel braid,
making sure that all stainless strands are outside of the olive (see Figure 14-15).
FIGURE 14-15
GENERAL BRAKE LINE TERMINATION
7. Grasp the hose and push the olive against a flat surface until the PTFE liner contacts the
shoulder inside the olive.
