14-32 LANDING GEAR / BRAKE LINE
ICON A5 / MAINTENANCE MANUAL CHANGE C2
8. Apply Tef-Gel
®
to the threads of the main body of the fitting.
9. Insert nipple end of the main body of the fitting into the brake hose.
10. Tighten the socket onto the fitting by hand while pushing the hose towards the fitting.
11. If using a banjo fitting, clamp the bango end in a vise, using wood or plastic jaw covers to prevent
damage to the fitting. For B-nut fittings, use a 1/2 inch wrench to hold the fitting.
12. Use an 11mm wrench to torque the socket to 110 in-lb
f
, allowing the hose to spin to avoid kinking it.
VERIFICATION METHOD:
The procedure is complete when all steps are done.
RELATED INFORMATION:
"Brake Line Replacement Procedure" on page 14-21
"Rudder Pedal Connector Lines Replacement" on page 14-21
"Forward Lines Replacement" on page 14-23
"Aft Lines Replacement" on page 14-25
"Parking Brake Valve Replacement Procedure" on page 14-32
14.5.1.3 Parking Brake Valve Replacement Procedure
Use the following procedure to replace the parking brake valve.

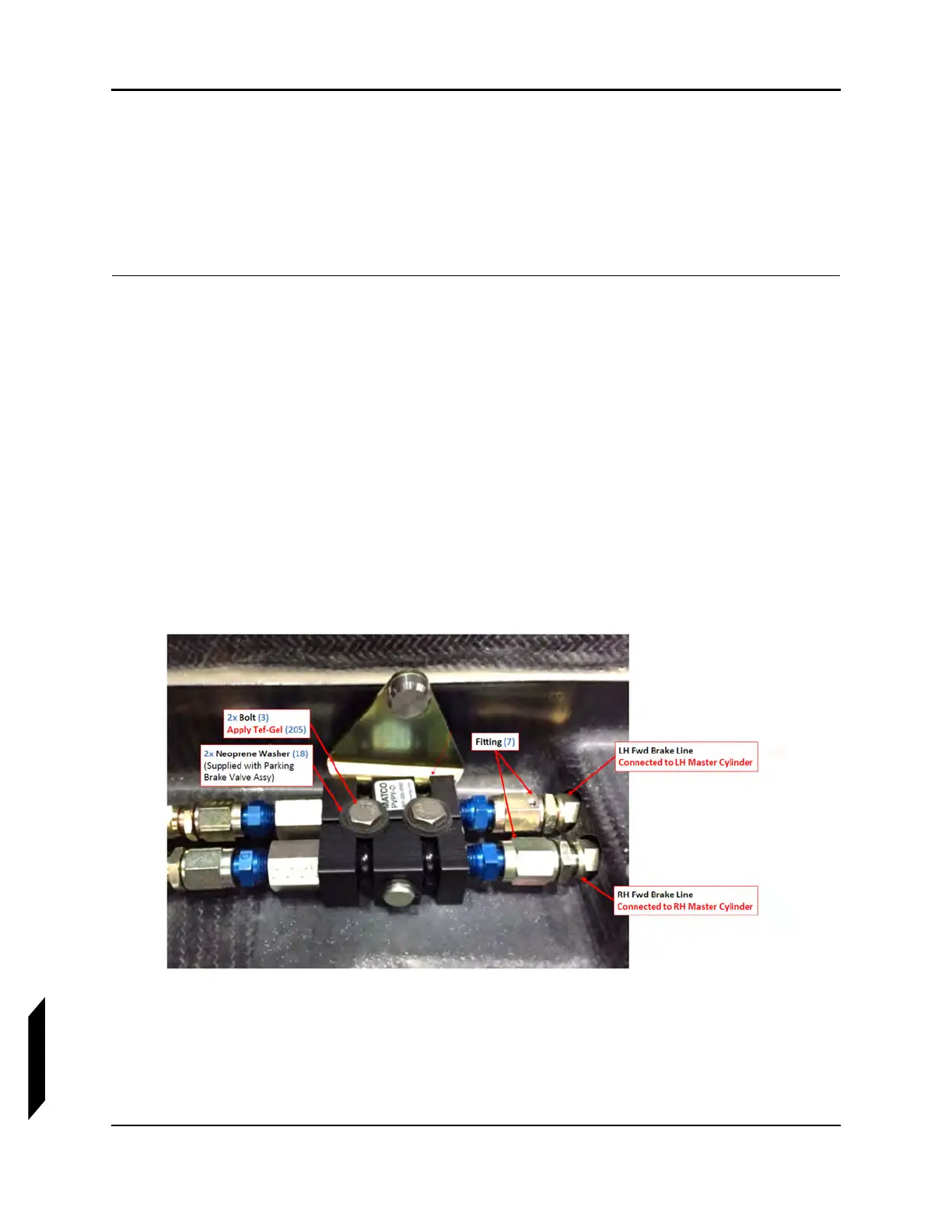

FIGURE 14-16
PARKING BRAKE VALVE AND COMPONENTS
