16-22 PROPULSION / ENGINE
ICON A5 / MAINTENANCE MANUAL CHANGE C2
ICA012983 OR 4CMPD150G TUBE (GREASE, DIELECTRIC, DC4)
1. Verify the orientation on the oil return line fitting at the engine prior to installation. (See Figure
16-9.) The fitting should be roughly parallel with the engine oil pan.
NOTE: The orientation will be checked again with the engine installed.
2. Verify the torque value on the oil return line fitting. Torque oil return line fitting to 300-350 in-lb
if using Method A or 290-330 in-lb if using Method B. (See Figure 16-10.)

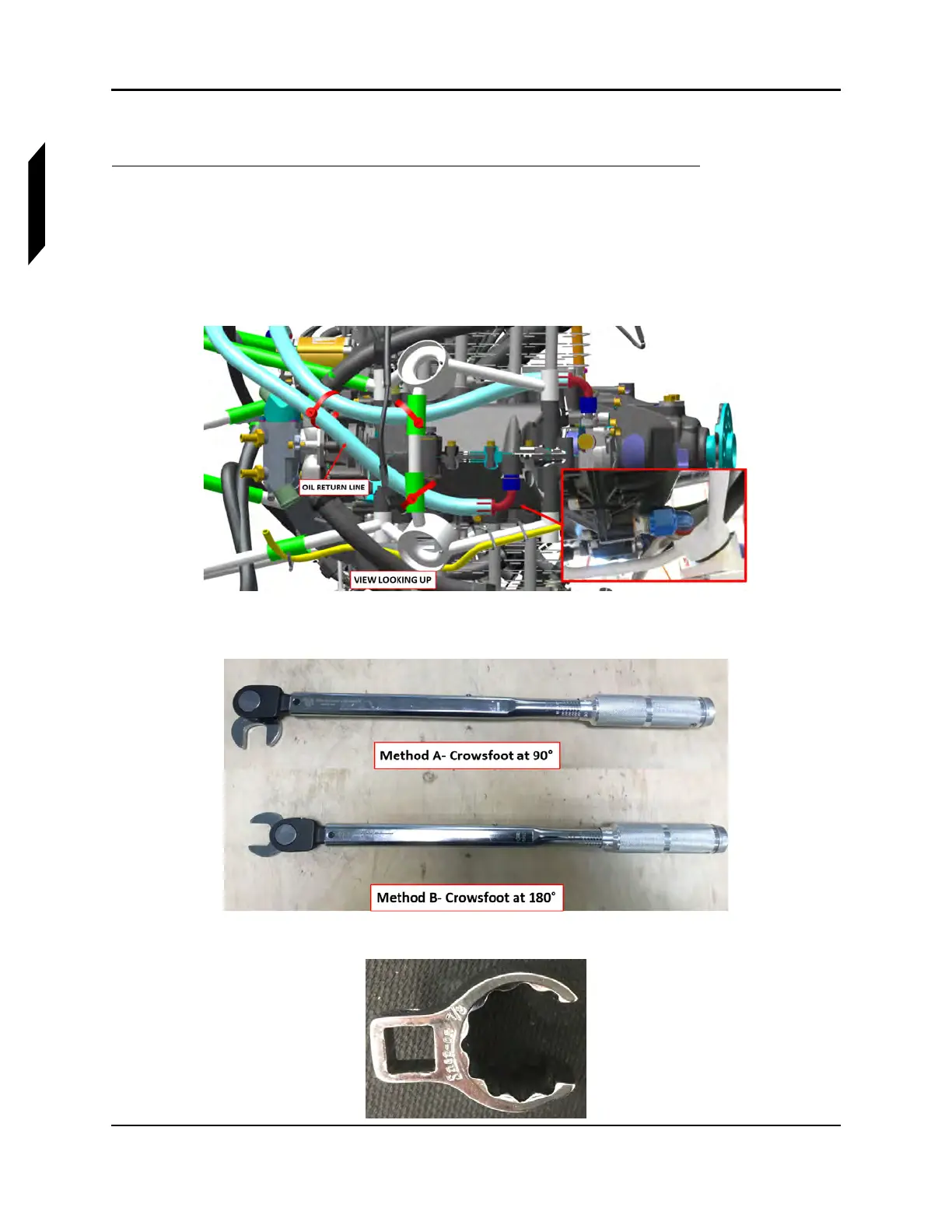

FIGURE 16-9
OIL RETURN LINE FITTING LOCATION
FIGURE 16-10
METHOD A VS. METHOD B (TOP) 7/8” 12-POINT CROWS FOOT WRENCH (BOTTOM)
