16-40 PROPULSION / ENGINE
ICON A5 / MAINTENANCE MANUAL CHANGE C2

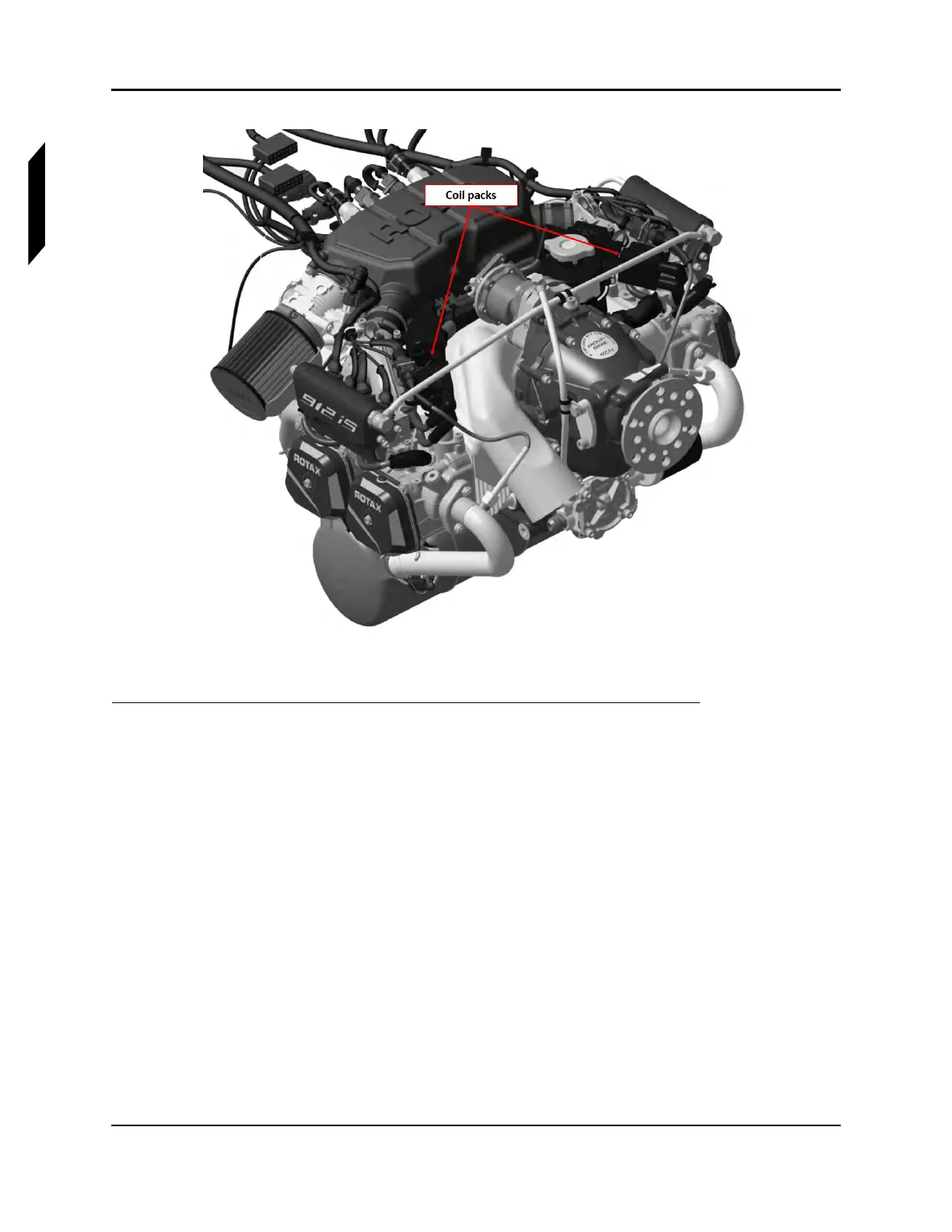

FIGURE 16-25
ROTAX 912IS SHOWN WITH IGNITION COIL PACKS IDENTIFIED.
1. Turn master switch OFF. Remove ignition key.
2. Remove engine cowl. (See “Remove Engine Cowlings” on page 16-13.)
3. Remove two M5 Allen mounting screws on each engine ignition coil pack as shown in Figure
16-26.
