PROPULSION / ENGINE 16-41
CHANGE C2 ICON A5 / MAINTENANCE MANUAL

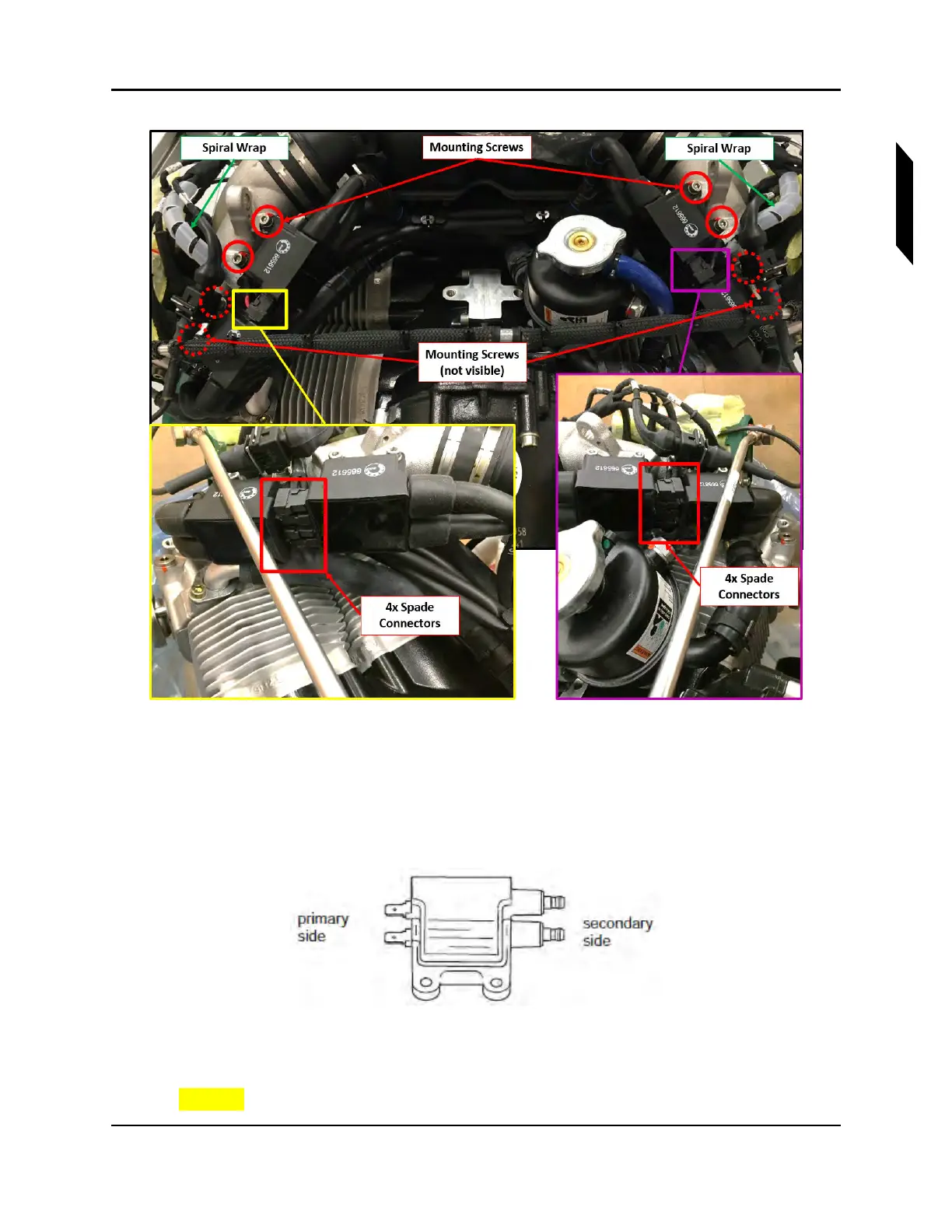

FIGURE 16-26
TOP VIEW OF ROTAX 912IS
4. Remove all four engine ignition coil packs enough to gain access to the primary side of the coil
pack (Figure 16-27). Remove spiral wrap as necessary.
NOTE: The secondary side may not need to be disconnected to perform
this operation.
FIGURE 16-27
ENGINE IGNITION COIL PACK.
5. Use a flat head screwdriver to push the connectors out of the coil pack terminals (Figure 16-28).
CAUTION: Take extreme caution not to damage the connectors.
