PROPULSION / ENGINE 16-87
CHANGE C2 ICON A5 / MAINTENANCE MANUAL

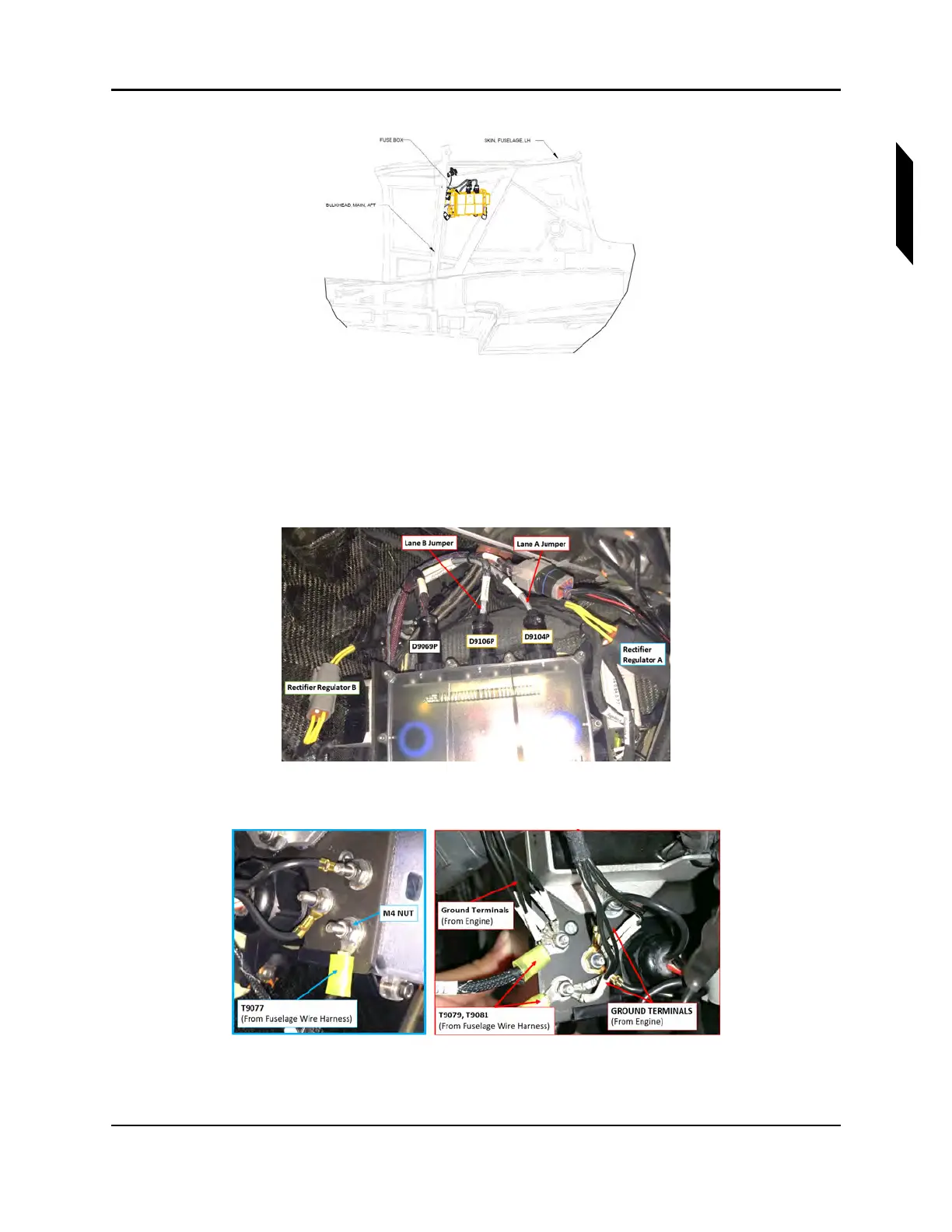

FIGURE 16-51
LEFT VIEW OF FUSELAGE, FUSE BOX, AND AFT BULKHEAD
3. Disconnect the three connectors as shown in Figure 16-52. Retain O-rings.
• Connector D9069P from fuselage wire harness
• Connector D9106P from engine LANE B extension wire harness
• Connector D9104P from engine LANE A extension wire harness
FIGURE 16-52
FUSE BOX AND CONNECTORS
FIGURE 16-53
REGULATOR B SIDE GROUND TERMINALS (LEFT). REGULATOR A SIDE GROUND
TERMINALS (RIGHT).
