PROPULSION / PROPELLER 16-101
CHANGE C2 ICON A5 / MAINTENANCE MANUAL

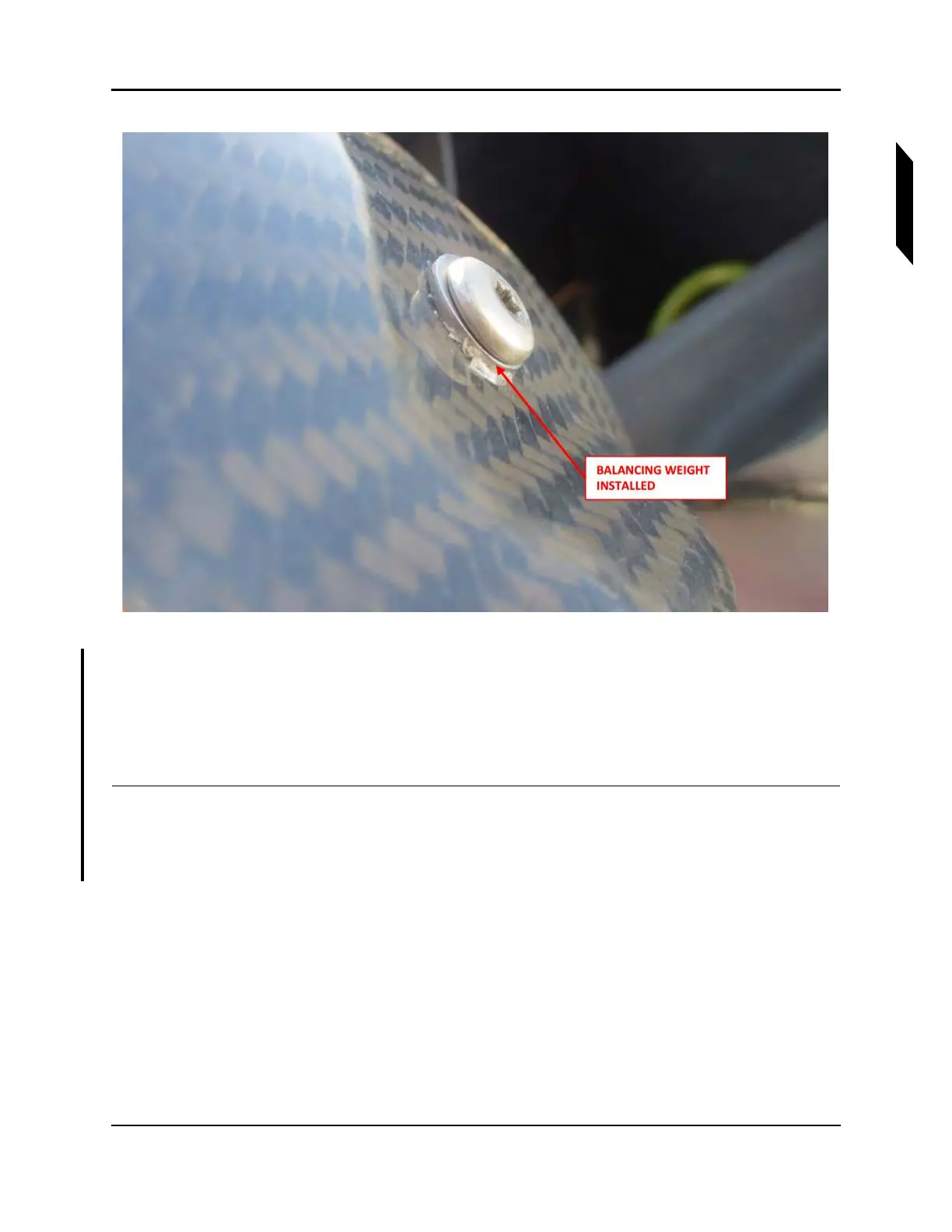

FIGURE 16-64
BALANCING WEIGHT (WASHER) INSTALLED ON SPINNER DOME
14. Repeat Steps 9 through 13 until the vibration magnitude is less than 0.08 IPS.
15. Remove all sensors, wires, and test equipment from the aircraft. Remove the top engine cowl.
16. Reinstall any screws that may have been used to mount the accelerometer.
17. Reinstall the engine cowl and connect antennas. (See “Install Engine Cowlings” on page 16-16.)
VERIFICATION METHOD:
Ensure the spinner dome screws are torqued to spec and the vibration magnitude is less than 0.08 IPS.
