Design Guide 45
Platform Clock Routing Guidelines
4.1.3 CLK33_ICH3-S Clock
In the CLK33_ICH3-S case, the driver is the clock synthesizer 33 MHz clock output buffer, and the
receiver is the 33 MHz clock input buffer at the ICH3-S.

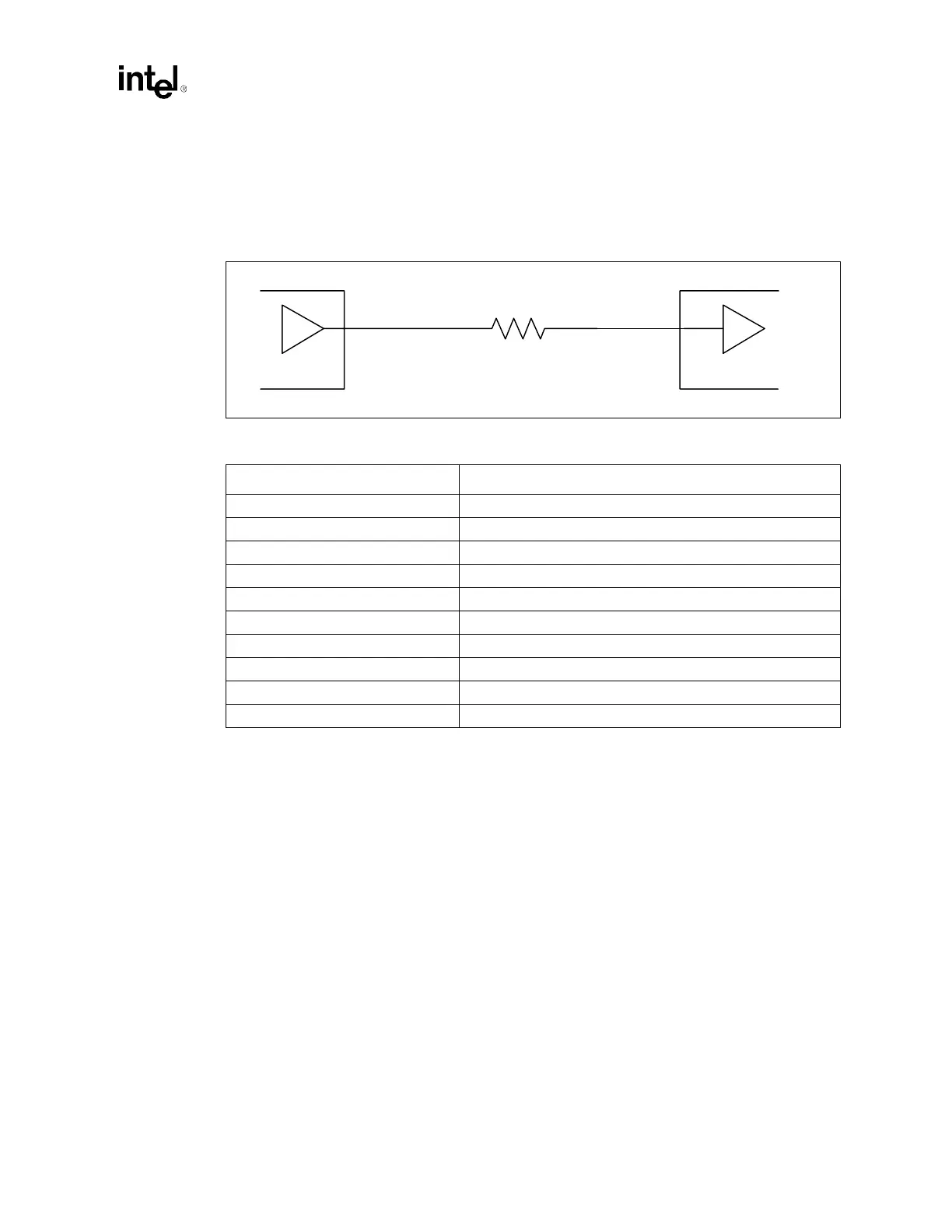

Figure 4-10. Topology for CLK33_ICH3-S
Table 4-5. CLK33_ICH3-S Routing Guidelines
Parameter Routing Guidelines
Clock Group CLK33_ICH3-S
Topology Point-to-Point
Reference Plane Ground referenced (contiguous over entire length)
Characteristic Trace Impedance (Z
0
) 50 Ω ± 10%
Trace Width 5 mils
Trace Spacing 25 mils
Trace Length – L1 0.00” – 0.50”
Trace Length – L2 3.00” – 9.0”
Resistor R1 = 33
Ω ± 5%
Skew Requirements Must be matched to ± 100 mils of CLK66
R1
L1 L2
Intel
®
ICH3-S
Clock
Driver
