Memory Interface Routing Guidelines
6.3 Command Clock Routing
Only one differential clock pair is routed to each DIMM connector because the MCH only supports
registered DDR DIMMs. All CMDCLK/CMDCLK# termination is on the DIMM modules. Route
each clock and its compliment adjacent to each other. The two complimentary signals (e.g.,
CMDCLK0 and CMDCLK0#) must be length matched to each other within ± 2 mils. Excluding
breakout, the maximum recommended layer changes is one. Ensure that the reference plane does
not change when switching layer.
NOTES:
1. CMDCLK/CMDCLK# must be matched to within ± 2 mils using package trace length
compensation
.
2. The total trace length difference of any two CMDCLK/CMDCLK# pairs cannot exceed 4 inches for timing
reasons.
3. For 3-DIMM solutions, treat the CMDCLK3/CMDCLK3# pair as a no connect.
4. Indicated lengths measure from the MCH pin to the DIMM connector pin.
Table 6-4. Command Clock Pair Routing Guidelines
Parameter Intel
®
E7500 Reference
Signal Group CMDCLK[3:0], CMDCLK[3:0]#
Topology Point to point Figure 6-7
Reference Plane Ground Figure 6-8
Differential Trace Impedance (Zo) 100
Ω ± 10% Figure 6-8
Nominal Trace Width 5 mil Figure 6-8
Trace Spacing to Complement 5 mil Figure 6-8
Trace Spacing to Other Traces 20 mil Figure 6-8
Trace Length – MCH to DIMM1 2.1” to 10.0” Figure 6-7
Trace Length – MCH to DIMM2 2.1” to 10.0” Figure 6-7
Trace Length – MCH to DIMM3 2.1” to 10.0” Figure 6-7
Trace Length – MCH to DIMM4 2.1” to 10.0” Figure 6-7
MCH Breakout Guidelines 5/5, < 500 mil
Length Tuning Requirements CMDCLK to CMDCLK#: ± 2 mil
CMDCLK pair to pair: within ± 4.0 in.
CMDCLK pair to DQS pair: ± 1.75 in.
CMDCLK pair to Source Clocked Signal: ± 2.0 in.
Figure 6-7
Figure 6-6
Figure 6-9

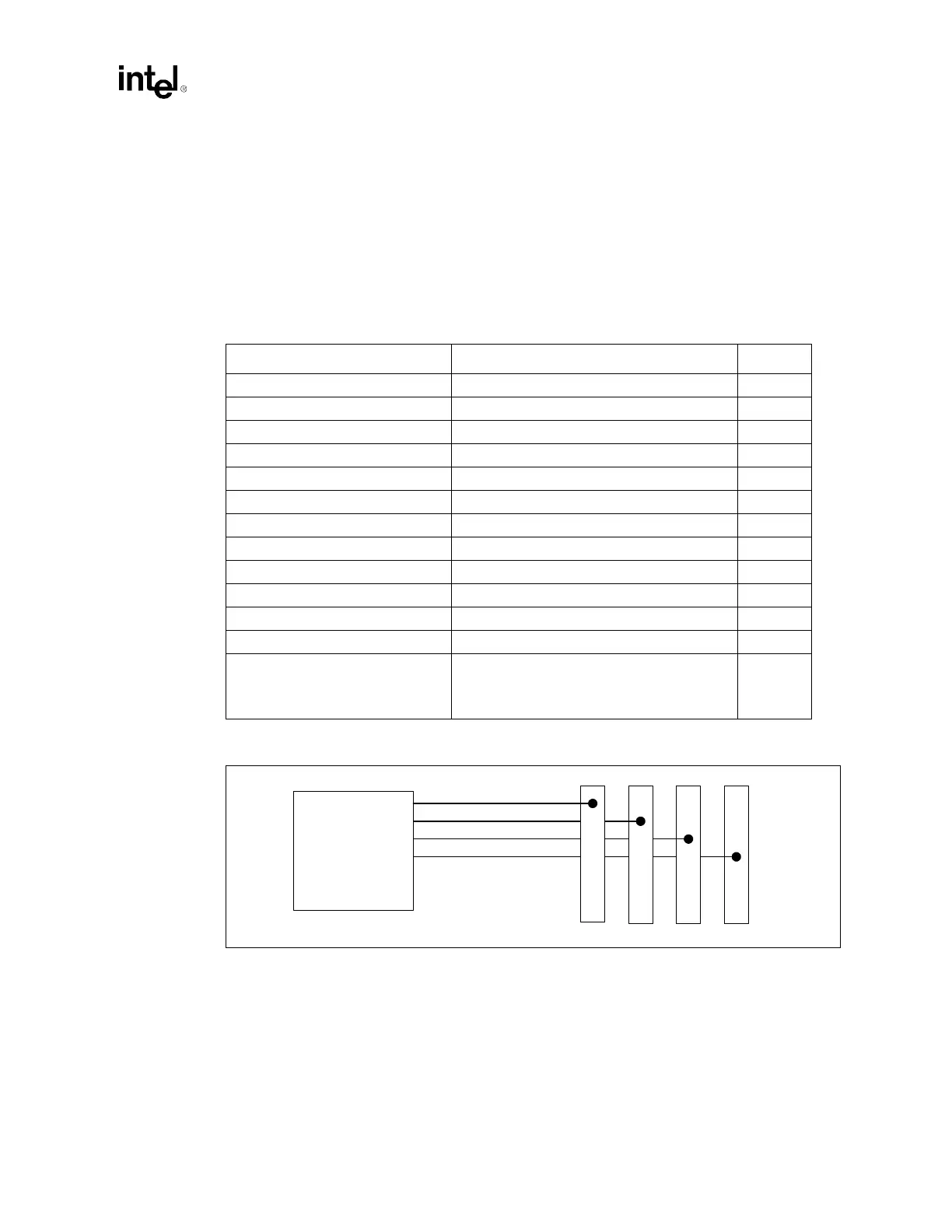

Figure 6-7. Command Clock Topology
DIMMs
CMDCLK0 & CMDCLK0#
MCH
CMDCLK1 & CMDCLK1#
CMDCLK2 & CMDCLK2#
CMDCLK3 & CMDCLK3#
