7.11.6.2Servopumpspeedramps
These settings are active and have priority for every control mode.
Pump acceleration (max. acceleration = 0 = default = without a limit)
ID Index Name Unit Description
2855 HYD_PumpAcc Hydraulic:Accelerationofthepumpspeed
2855 0to15 HYD_PumpAcc rpm/s
Table 7.65: “Hydraulic - Pump acceleration” parameters
Pump deceleration (max. acceleration = 0 = default = jump)
ID Index Name Unit Description
2856 HYD_PumpDec Hydraulic:Decelerationofthepumpspeed
2856 0to15 HYD_PumpDec rpm/s
Table 7.66: “Hydraulic - Pump deceleration” parameters
7.11.6.3Hydraulicmotionblocktable
The motion block table contains 16 motion blocks which can be parametrized (Index
0 to 15). The control mode, reference values and ramps as well as the valve
positions and switching conditions can be specified in each motion block.
If the drive controller is to be used as a stand-alone device, it is possible to set up a
type of sequence control using the motion block table. To activate the transition of
the motion block via the motion block table, the operating mode Tab(2) must be
selected in the motion profile P 2862[0] - HYD_OpMode. This allows switching
between the motion blocks to be control by either timing or an event. This function is
enabled in the Tab(2) operation mode.
As an option, it is also possible to use operation mode CTRL2 to switch the motion
blocks via a higher-order control system. These can be configured in advance for
different control tasks so that during the process only setpoints and the respective
table index must be selected or specified by the control system.
ID No.: 0842.26B.5-01Date: 09.2020
ServoOne- Device Help
195
7 Control

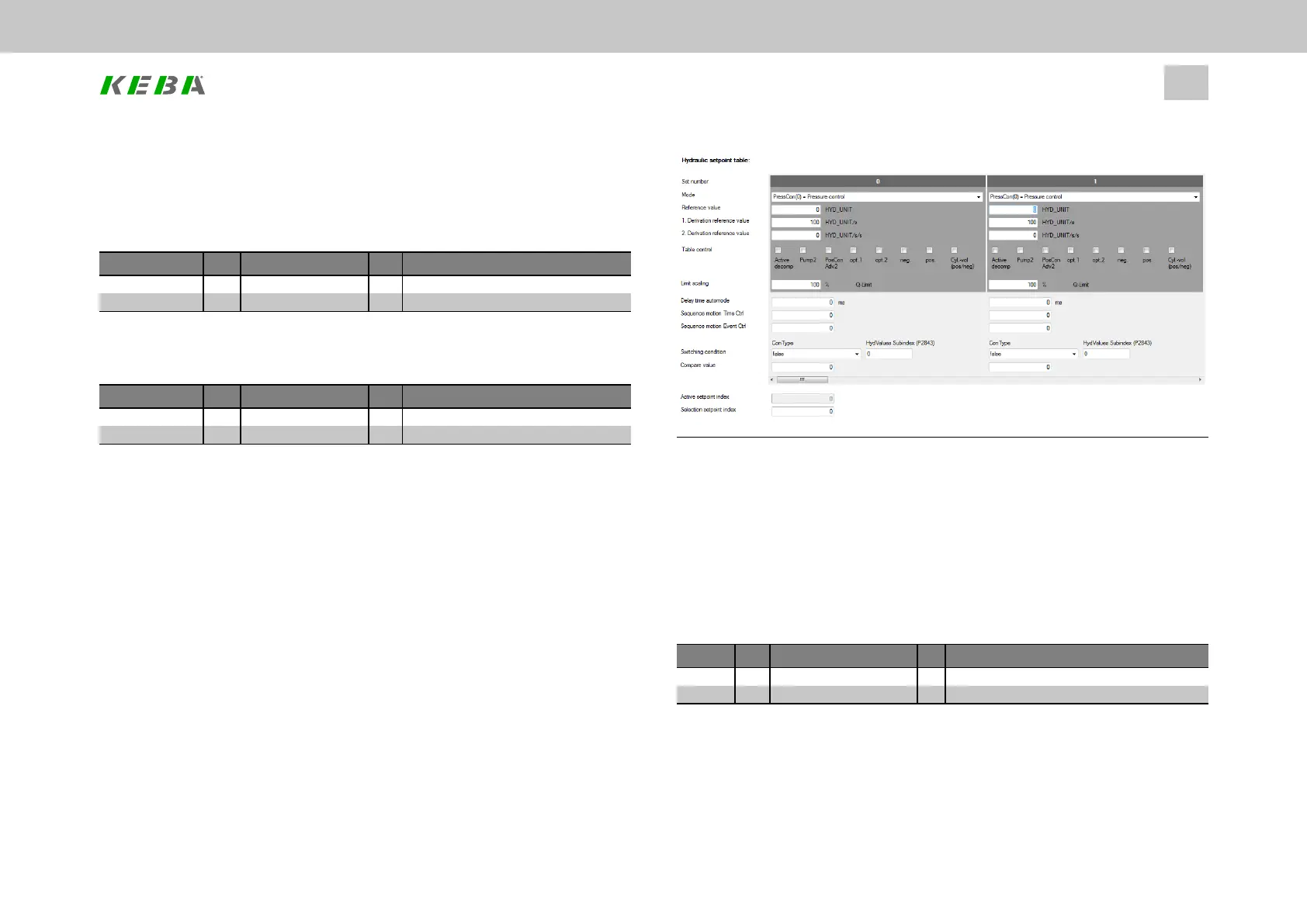

Image 7.66: “Hydraulic motion block table” screen
Selecting the hydraulic control mode (Para 2860 HYD_TabConMode):
PressCon(0)=pressurecontrol
VolConPlim(1)=volumetric flow rate control (pressure limited)
SpeedCon(2)=speed control
PosCon(3)=position control
NPumpCon(4)=pump speed control
VolCon(5)=volumetric flow rate control (without pressure control)
ID Index Name Unit Description
2860 HYD_ConMode (HydraulicControlMode)
2860 0...15 HYD_ConMode (HydraulicControlMode)
Table 7.67: “Hydraulic - Control mode” parameters
Hydraulic setpoint
