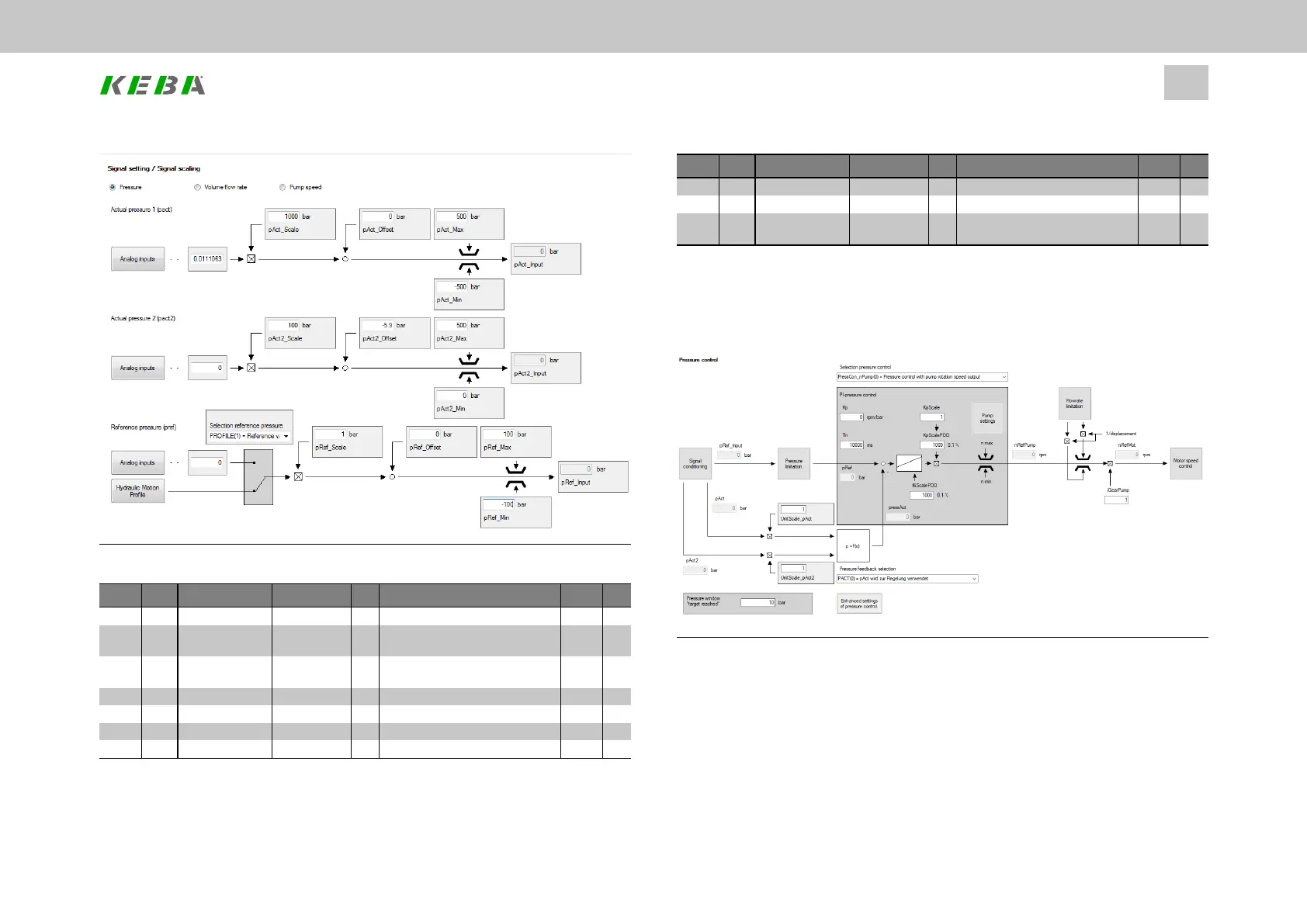

Image 7.85: Signal settings screen
ID Index Name Value Unit Description Type PDO
2840  HYD_Cfg   ConfigureHydraulicSystemControl  
 1 pRefSrc PROFILE(1)  Hydraulics:Selectionofpressure
referencesource
uint16 
 3 pActCalc PACTSEL(5)  Hydraulic:Pressureactualvalue
calculationmethod
uint16 
 4 pMinSrc PressCon(0)  Minimumpressuresourceselector uint16 
 5 pMaxSrc PressCon(0)  Maximumpressuresourceselector uint16 
 6 QMinSrc PressCon(0)  Minimumflowratesourceselector uint16 
 7 QMaxSrc PressCon(0)  Maximumflowratesourceselector uint16 
Table 7.91: Selectors settings
ID No.: 0842.26B.5-01Date: 09.2020
ServoOne- Device Help
213
7 Control
ID Index Name Value Unit Description Type PDO
 8 QActCalc NONE(0)  Flowratecalculationmethod uint16 
 9 QLeakEst MEAS(0)  Flowrateleakageestimationmethod  
 10 nRefSrc PROFILE(1)  Pumpspeedreferencesource
selector
uint16 
Table 7.91: Selectors settings (continue)
The control dynamic performance and the pressure and volumetric flow rate limits for
the pressure control are configured in P2850-HYD_PressCon.
Image 7.86: “Pressure control” screen
