Keysight U8480 Series - Memory:table:sparam <S11|S12|S21|S22>,<Numeric_Value>,<Numeric_Value> {,<Numeric_Value>}{,<Numeric_Value

MEMory Subsystem 6
U8480 Series Programming Guide 167
MEMory:TABLe:SPARam
<S11|S12|S21|S22>,<numeric_value>,<numeric_value>
{,<numeric_value>}{,<numeric_value>}
This command sets the magnitude-phase pairs for the selected S-Parameter type;
for the currently selected S-Parameter table. The maximum number of
magnitude-phase pairs is 1024.

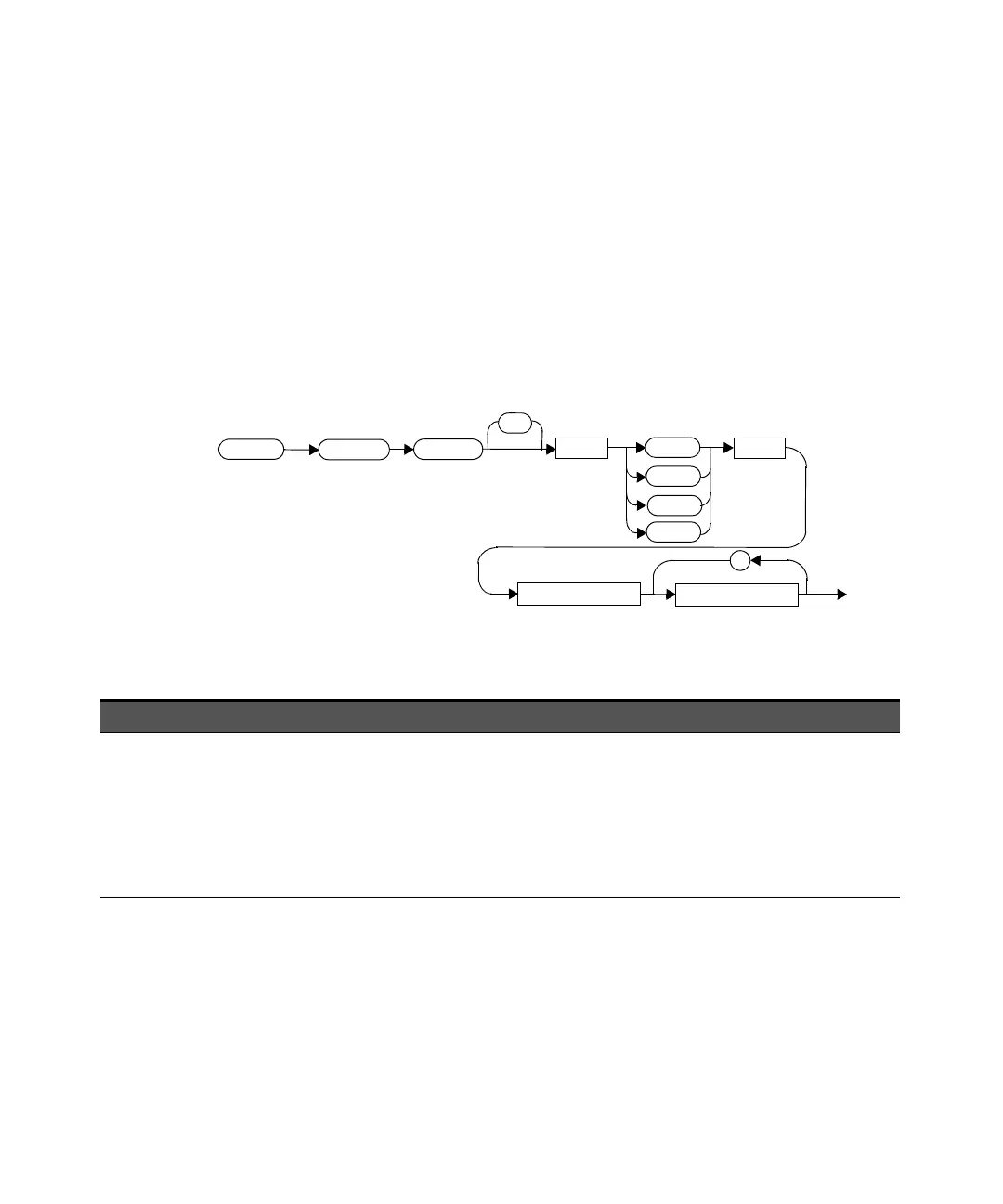

Syntax
Parameters
Item Description/Default Range of values
numeric_value Sets the magnitude-phase pair values.
For S11, S22
– Magnitude: (0.0 to 0.999)
– Phase: (–180.0
o
≤ p < +180.0
o
)
– For S12, S21
–Magnitude: (1.0 × 10
–5
to 1.0 × 10
+5
)
– Phase: (–180.0
o
≤ p < +180.0
o
)
:TABL
:SPAR
S11
numeric_value
Space
,
MEM
?
S12
S21
Space
numeric_value
S22
