MD-11 Flight Crew Operations Manual
k
Aircraft General -
Controls and Displays
Agen.30.26

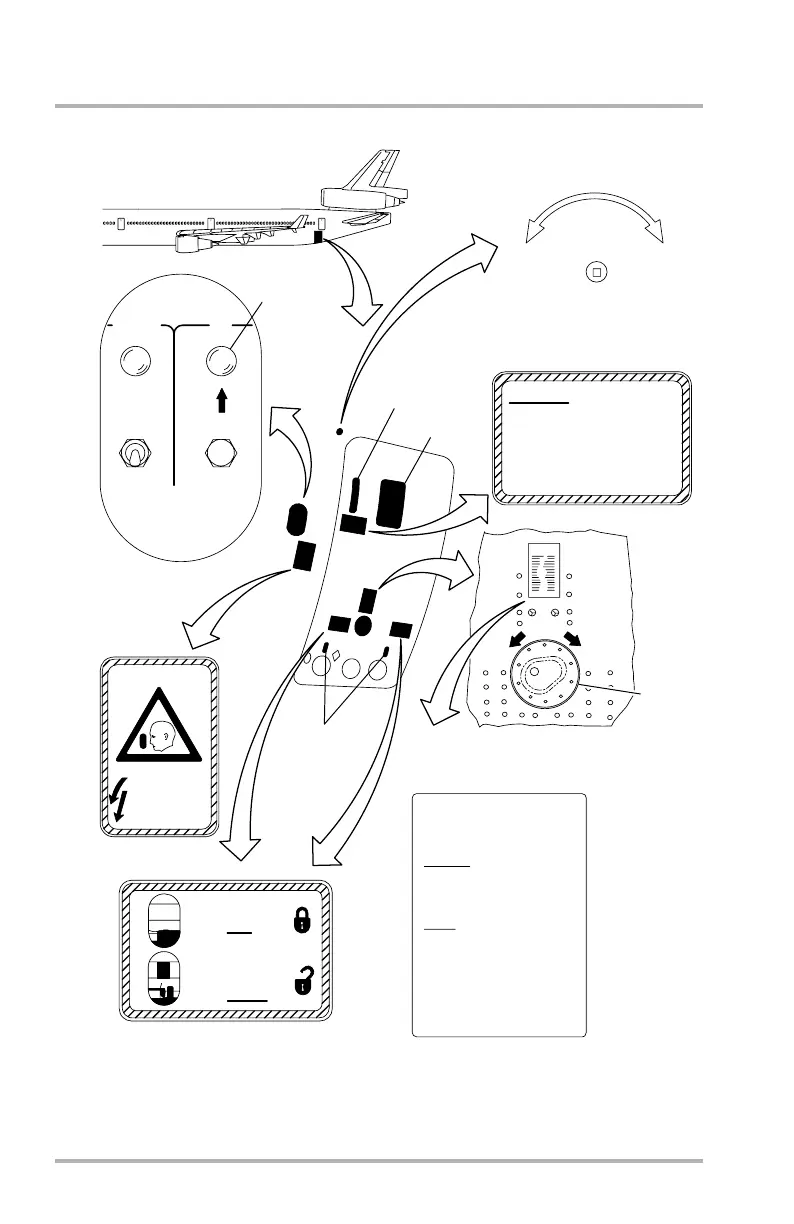

Lower Cargo Doors - Aft
DB1-2-1654
CLOSE OPEN
CAUTION:
AFTER CLOSING
LOCK LATCHES
CAUTION:
BEFORE OPENING
RELEASE LATCHES
DOOR ACTUATOR
MANUAL DRIVE FITTING
FOR
MANUAL
OPERATION
MAX TORQUE 200 LB-IN
MAX SPEED 150 RPM
CAUTION
DO NOT FORCE HANDLE
IF HANDLE WILL NOT OPERATE
RESTORE POWER TO DOOR AND
HOLD DOOR CONTROL SWITCH
TO DOOR CLOSE POSITION FOR
ADDITIONAL THREE SECONDS
MOVE HANDLE TO CLOSE POSITION
LOCK PIN ENGAGED
SYSTEM SAFE
LOCK PIN
NOT ENGAGED
SYSTEM UNSAFE
CAUTION
ENGAGED
BE SURE LOCKPINS
CHECK BOTH
VIEWPORTS
MANUAL OPERATION
WARNING:
DOOR MAY SPRING OPEN
PRIOR TO MANUALLY UNLATCHING,
MANUALLY CRANK DOOR ACTUATOR
TO THE FULLY CLOSED POSITION.
DO NOT ATTEMPT TO PRY DOOR
OPEN, OR OPEN DOOR ELECTRICALLY
IF DOOR IS COVERED WITH ICE.
DO NOT USE POWER TOOLS.
TO UNLOCK AND UNLATCH DOOR:
1. PLACE VENT DOOR HANDLE IN
OPEN POSITION.
2. TURN ACTUATOR DRIVE UNTIL
LATCHES ARE OPEN.
TO LATCH AND LOCK DOOR:
1. TURN ACTUATOR DRIVE UNTIL
VENT DOOR HANDLE CAN BE
CLOSED.
POWER & LTS
DOOR
ON
OFF
OPEN
STOP
CL OSE
HOLD SWITCH IN
CLOSE POSITION
UNTIL THE ABOVE
LIGHT COMES ON
CONTROL PANEL
READY TO
LOCK LIGHT
VENT DOOR
VENT DOOR
LATCH HANDLE
PORT
VIEWING
LOCKPIN
INSIDE
DOOR
CONTROLS
DOOR LATCH MANUAL DRIVE FITTING
(BEHIND COVER PLATE)
WARNING
LOCK
UNLOCK
COVER
PLATE
October 02, 2006
