MD-11 Flight Crew Operations Manual
k
FMS -
Controls and Displays
FMS.30.90

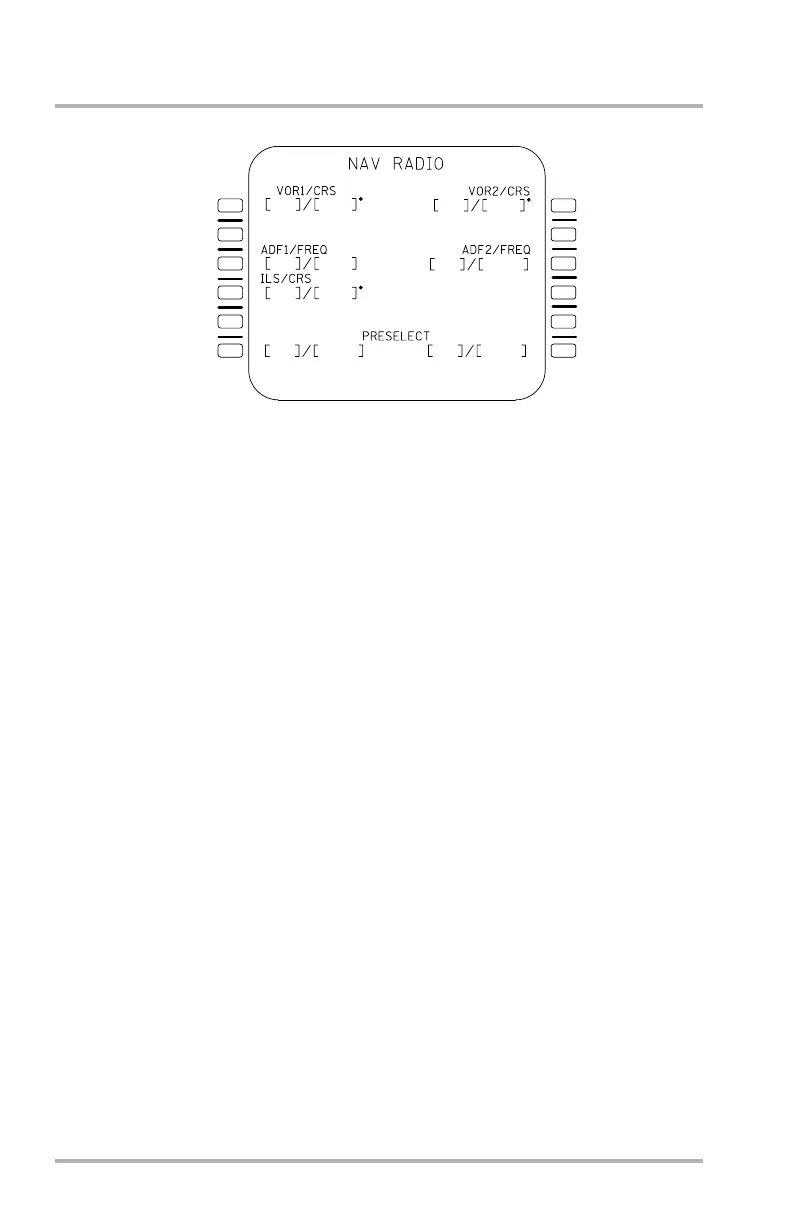

NAV RADIO Page
The ident or frequency for ADF1 and ADF2 are flight crew-enterable in 3L and
3R, respectively. Either the ident, or the frequency may be entered, but not both.
If the frequency is entered the ident is extracted from the NAV database and
displayed in the label line. If the ident is entered the frequency is extracted from
the NAV database. If both the ident and the frequency are entered, they must
match an ident/frequency pair in the NAV database and displayed in the label line.
If an ident is entered and it does not exist in the NAV database, the message NOT
IN DATA BASE is displayed in the SP.
The ILS ident (or frequency) and course are flight crew-enterable in 4L. If the
ident is entered, the frequency is displayed in small font on the label line and the
ident is displayed in large font on the data line. If the frequency is entered, the
ident is displayed in small font on the label line and the frequency is displayed in
large font on the data line. In either case, the MLS field clears to brackets (if not
already). The course field represents the runway heading derived from the runway
database (displayed in small font), but may be entered by the flight crew
(displayed in large font). If the ILS is autotuned, the ident is displayed on the label
line in small font and the frequency and course (if available) is displayed on the
data line in small font.
Once an ILS course is entered or derived from the runway database, the LOC
ONLY prompt is displayed in small font in 5L with a leading asterisk. If LSK 5L
is pushed, LOC ONLY is displayed in large font without the asterisk.
FMS LOC ONLY approach mode is explained in the Automatic Flight chapter.
FMS LOC ONLY approach procedures are described in the MD-11- Flight Crew
Operating Manual Operating Procedures.
LB1-3-0116
1L
2L
3L
4L
5L
6L
1R
2R
3R
4R
5R
6R
October 02, 2006
