Kyocera TASKalfa 8002i - Page 178

2NJ/2RK
2-129
16. Connect the connector (b) of the heater outlet
assembly (a) to the paper feeder side connector
(c).
17. Reattach with two screws (d)(M4×8) which is
detached the heater outlet assembly (a).

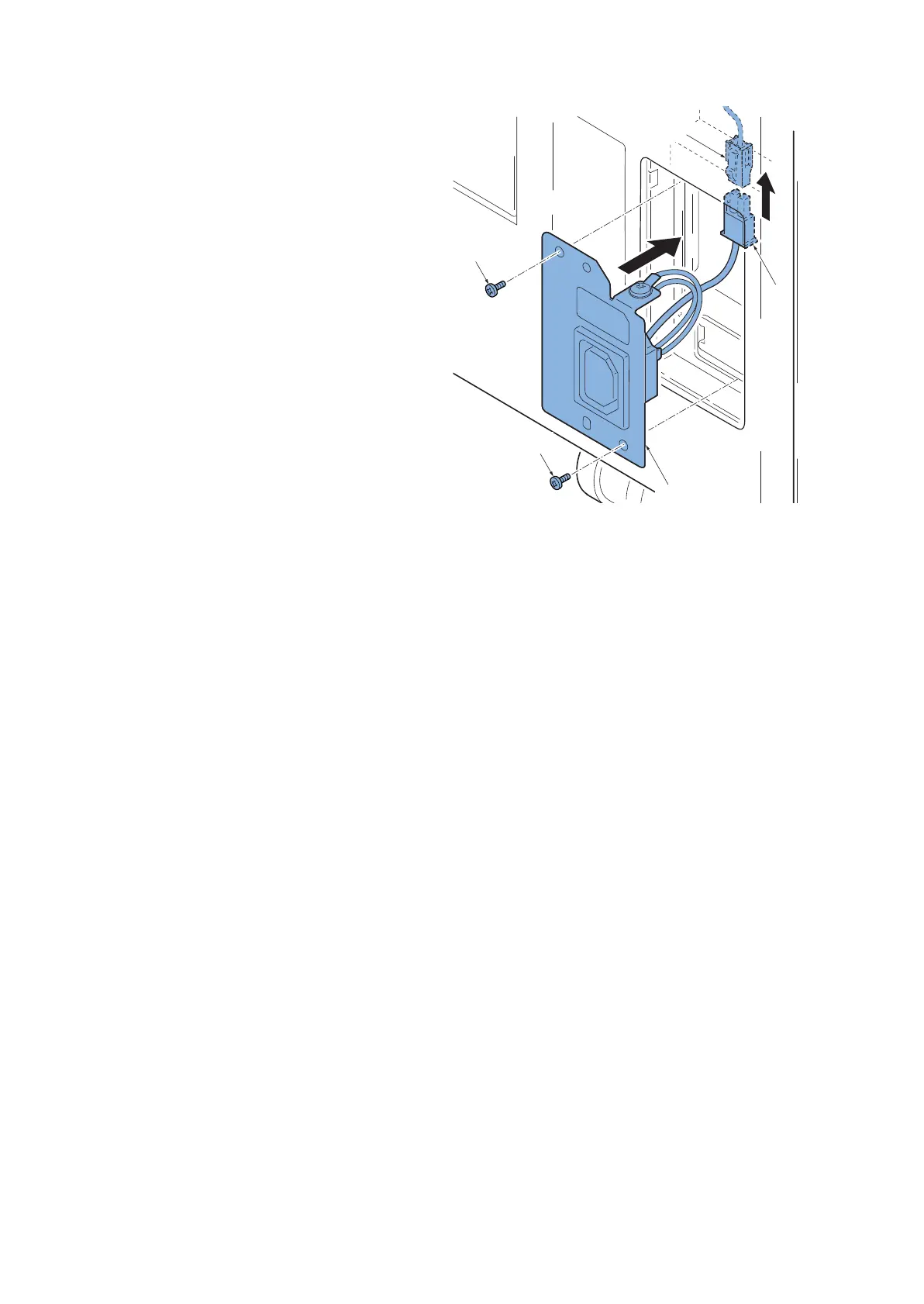

Figure 2-243
a
c
d
b
d
