II. Replacing the fuses
The fuse holder is located under the mains connecting socket.
1. Lever the fuse holder out of the fuse compartment using a flat
screwdriver.
2. Replace defective fuses with units of equivalent values.
3. Position the fuse holder so that the required operating voltage is
legible upright and push it all the way back into the fuse compart-
ment.
The arrow behind the set operating voltage points down towards the white
stripe (see Fig. 49 on page 104).
4. Plug the mains cable into the mains terminal on the circuit board
plotter.
5. Switch the main switch to position O.
[ ] Now you can mount the side wall of the acoustic cabinet.
WARNING
Risk of death!
Missing or insufficient electrical fuse protection can result in
fatal electric shocks and/or fire.
› Use only fuses of type T4L 250 V.
› Fuse holders must
NEVER be bridged.

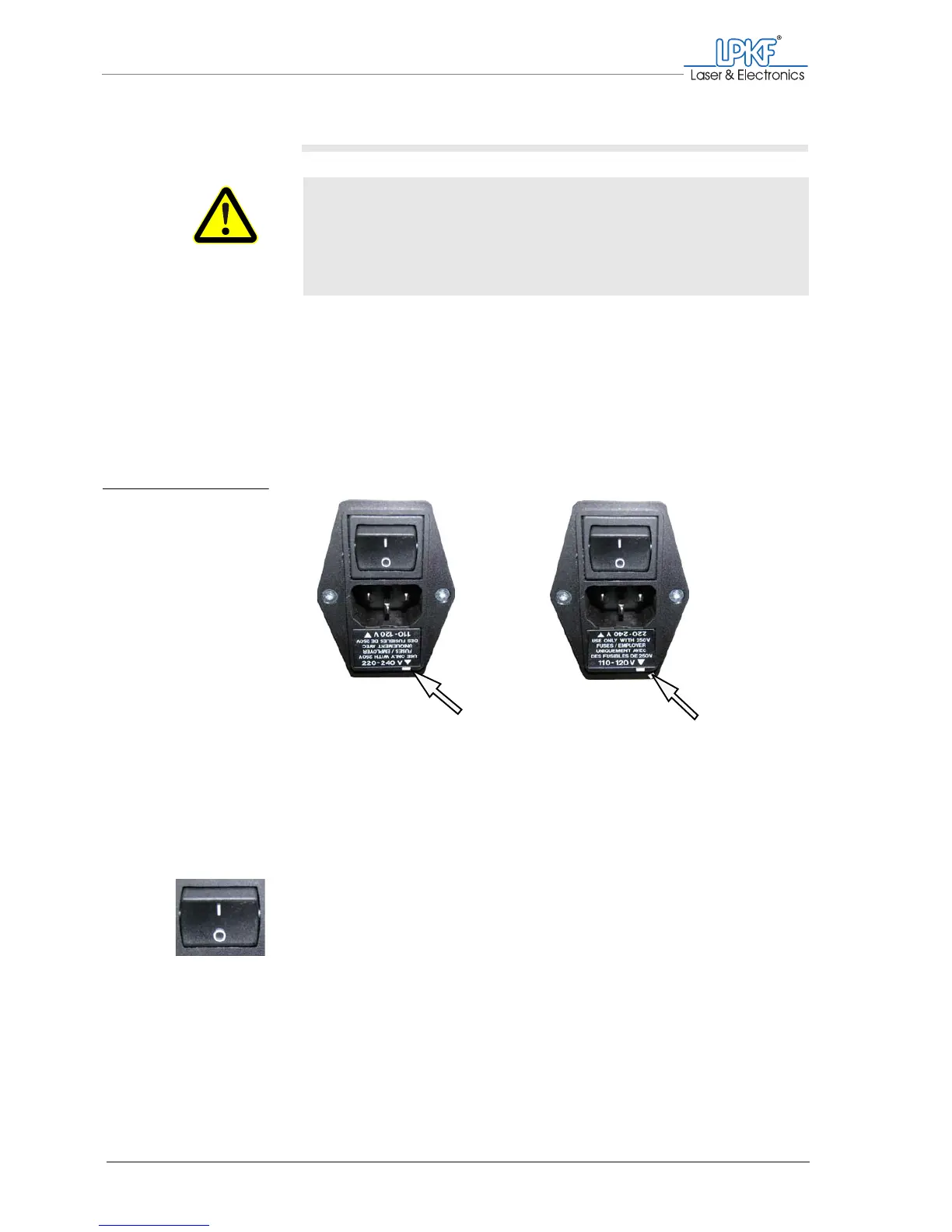

Fig. 59: Orientation of the
fuse holder
1 Orientation for 220 V – 240 V 2 Orientation for 110 V – 120 V
