Creating a pass hole system (basic equipment)
80 ProtoMat
®
S62
Drilling pass holes into the drilling underlay
To drill pass holes into the drilling underlay, the Spiral Drill 3.0 mm must
be set up and positioned accordingly in the tool magazine.
1. Mount the plastic base on the milling depth limiter (see "Mounting
the plastic base/brush head" on page 63).
2. Click on the Move to pause button.
3. Pull any existing pass hole pins out of the plastic strips in the tra-
versing table using flat nose pliers.
4. Place the base material/drilling underlay in the Y direction as cen-
trally as possible on the traversing tables mirror axis.
5. On the function bar, click on the tool selection list and select the
entry 2. Spiral Drill 3.0 mm.
6. Click on the Move to home button.
7. Click on the Motor on button.
8. Click on the Lower head button.
The pass hole is drilled.
9. Use the Move to x+ button to move the milling/drilling head to the
desired position.
Take care not to move the milling/drilling head in the Y direction.
10. Make a note of the x value.

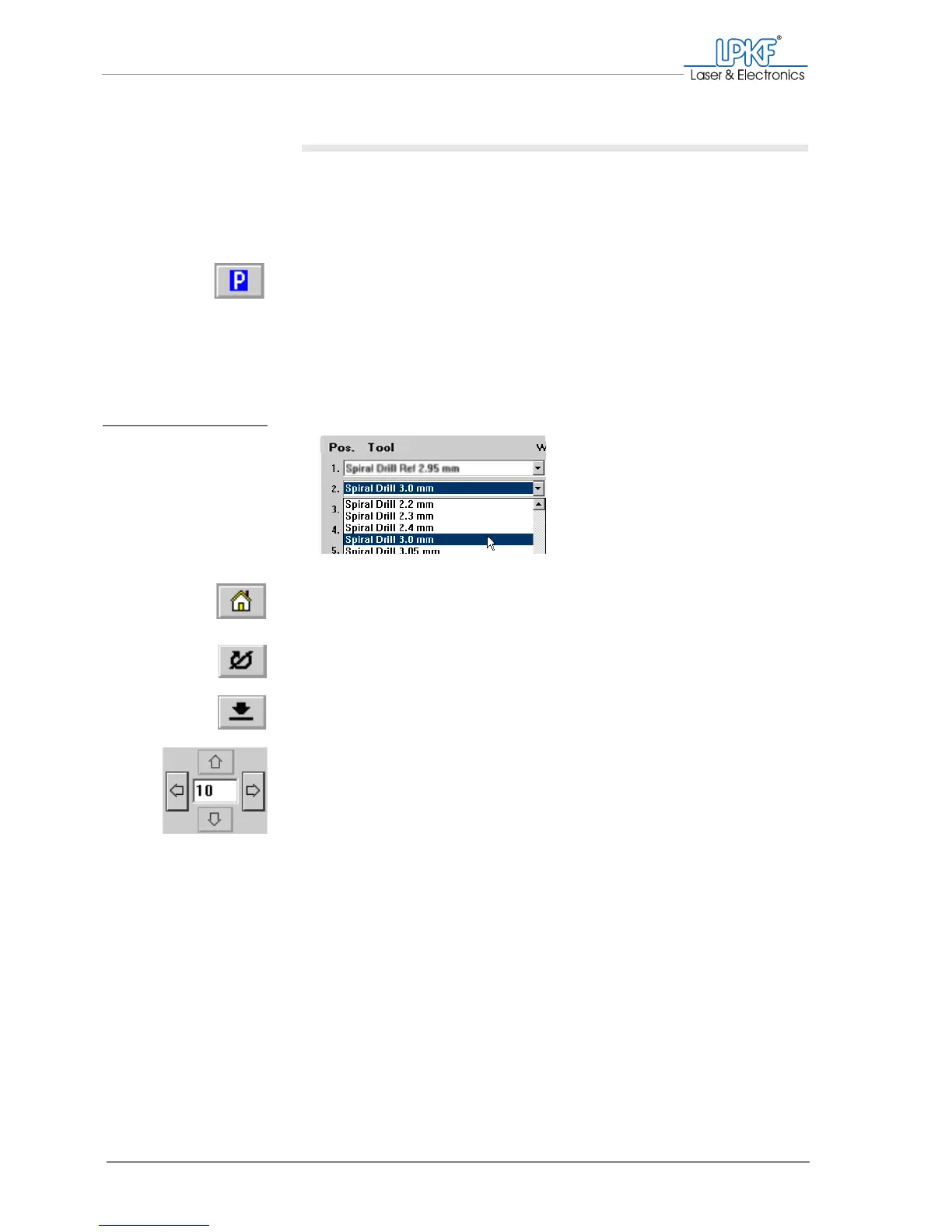

Fig. 31: Selecting pass
hole drills for base
material/drilling un-
derlay
