Manual tasks and settings
Operating Manual 7.1 Rev.: 18.06.2008 85
6. Click on Yes.
A prompt asking if the depth limiter has been removed appears.
7. Check that the plastic base has been removed from the milling
depth limiter and click on Yes.
The pass hole will be drilled.
8. Move the milling/drilling head using the Move to x+ button, so that
it is located in the desired position above the right-hand pass hole
strip.
Take care not to move the milling/drilling head in the Y direction,
otherwise the pass hole will not be positioned exactly on the mirror
axis.
9. Make a note of the x value used.
10. On the function bar, click on the Lower head button.
11. Confirm the prompts with Yes.
The pass hole will be drilled.
12. On the function bar, click on the Motor off button.
13. On the menu bar, click on the Move to pause button.
14. Remove dust and swarf with a brush.
15. Place the sinter plate on the vacuum table.
[ ] Now you can drill the pass holes into the sinter plate.

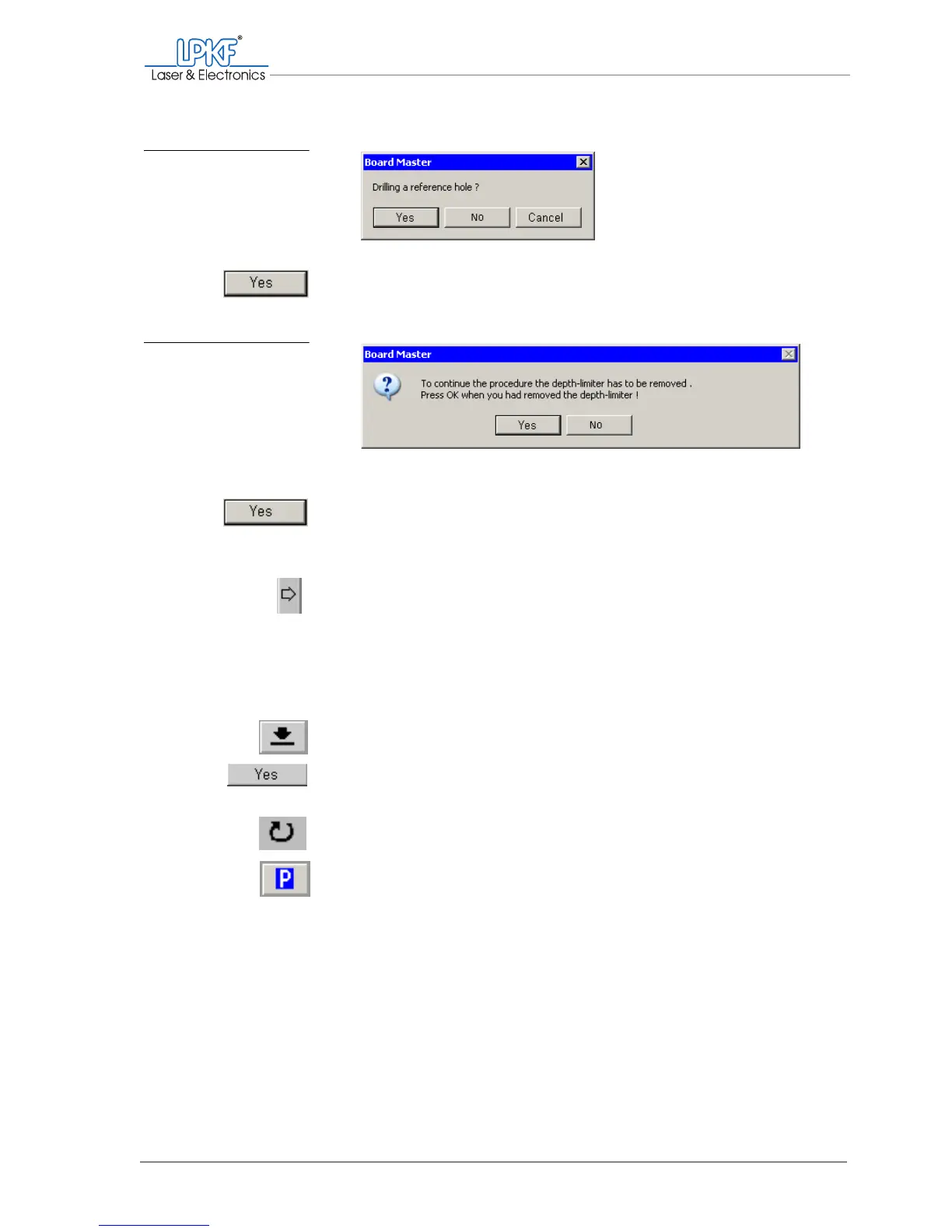

Fig. 35: BoardMaster mes-
sage "Drill pass
hole?"
Fig. 36: BoardMaster mes-
sage "Depth limit-
er removed"
