What you should know
Operating Manual 7.1 Rev.: 18.06.2008 29
3. What you should know
In this chapter you get to know the functions and operating elements of the ProtoMat
®
S62.
Prior to commencing operation, you must first familiarise yourself with the most important ele-
ments of the BoardMaster and its various operating modes.
3.1 The milling/drilling head
The milling/drilling head can be moved horizontally in the X direction only.
The traversing table must be moved in the Y direction to position the mill-
ing/drilling head in any position above the base material. The coordina-
tion of both traversing directions is controlled by BoardMaster. In the
following, this procedure will be denoted as moving the milling/drilling
head.
3.1.1 Defined positions

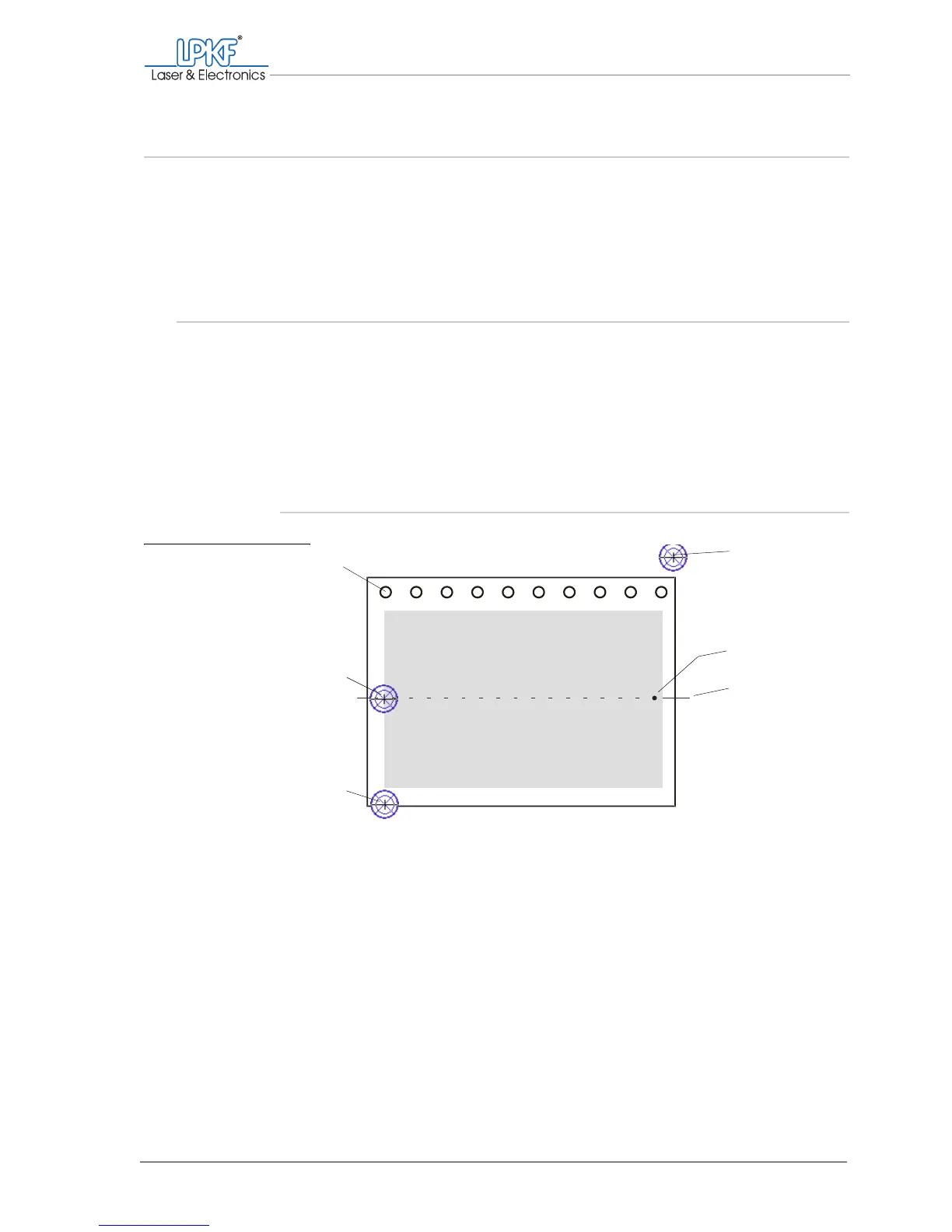

Fig. 10: Defined positions
of the milling/drill-
ing head
1 Tool magazine
(position 1)
2 Milling/drilling head in
home position
3 Milling/drilling head in
zero position
4 Milling/drilling head in
pause position
5 Right pass hole pin
6 Mirror axis
1
2
3
4
5
6
