4.12.2 Drilling pass holes into the sinter plate
Before drilling pass holes into the sinter plate, the machine parameters
have to be adjusted.
I.
Adjusting machine parameters
1. Put the the sinter plate on to the vaccum table.
2. On the menu bar, select Configuration > Settings... .
The Machine settings window opens.
3. Click on Unlock to allow the settings to be changed.
4. In the Vacuumtable height [mm] input box enter the value 13.
5. Click on OK.
[]

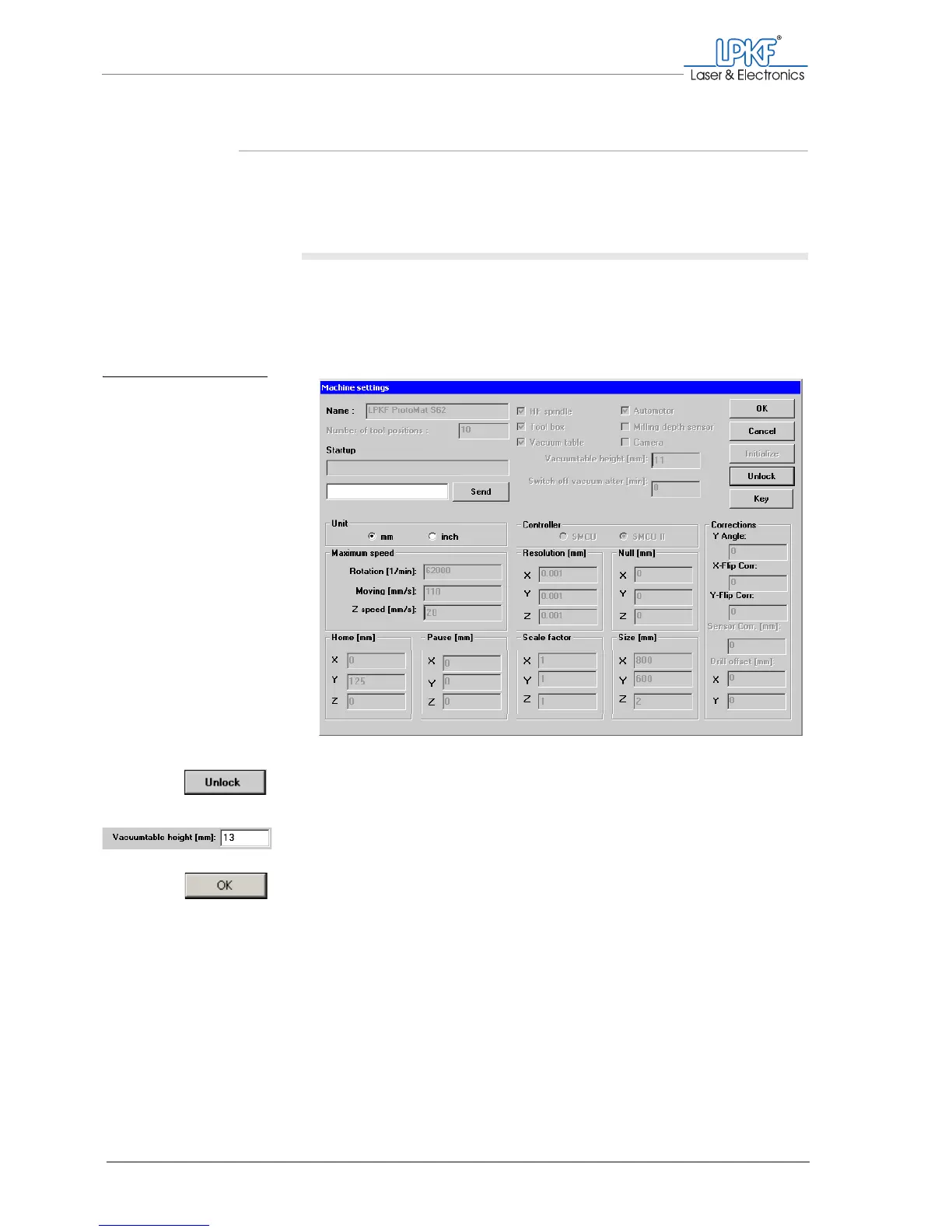

Fig. 37: Machine
parameters
