Manual tasks and settings
Operating Manual 7.1 Rev.: 18.06.2008 79
6. Check that the plastic base has been removed from the milling
depth limiter and click on Yes.
The pass hole will be drilled.
7. Using the arrow keys, move the milling/drilling head in the X direc-
tion so that it is located in the desired position above the right-hand
pass hole strip.
Take care not to move the milling/drilling head in the Y direction,
otherweise the pass hole will not be positioned exactly on the mirror
axis.
8. Make a note of the x value.
Note: LPKF base materials have a pass hole clearance of 295 mm.
9. Click on the Lower head button to drill the pass hole.
10. Click on the Motor off button.
11. If nesssescary drill new pass holes into the drill underlay
(see "Drilling pass holes into the drilling underlay").
[ ] Now you can insert the pass hole pins into the pass hole strips and
remount the plastic base on the milling depth limiter.

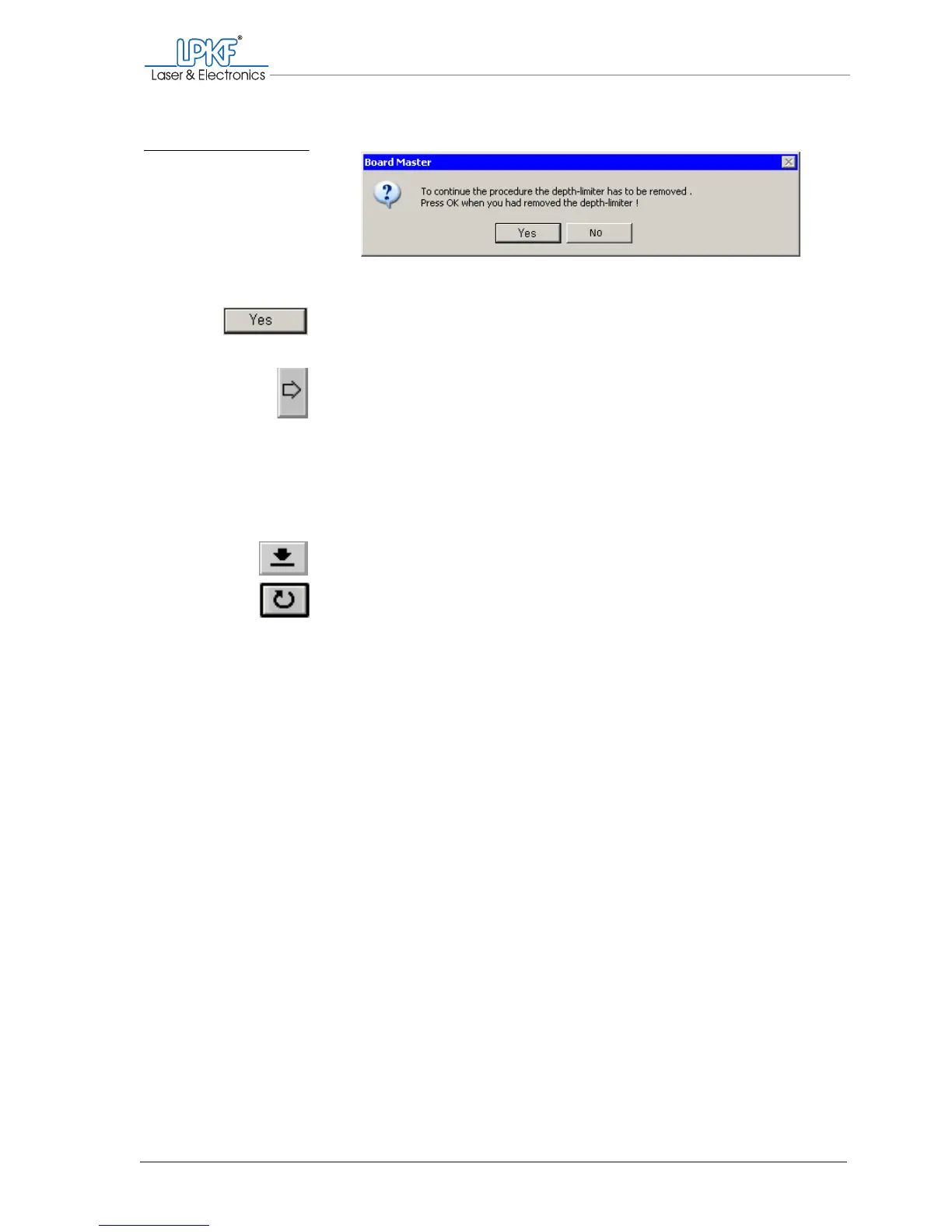

Fig. 30: BoardMaster mes-
sage "Depth limit-
er removed"
