LPKF ProtoMat S62 - Setting the Camera Offset; Fig. 69: Setting the Camera Offset

Adjusting the camera (only with VisionSystem)
132 ProtoMat
®
S62
Setting the camera offset
1. Drill a 0.8 mm hole into an unused area of the base material.
Take care not to move the milling/drilling head further, since the
current position serves as the reference point.
2. Click on Configuration > Heads... in the main menu.
The Heads window is opened.
3. In the Head selection list select Camera.
4. Click on Origin.
The reference point button will be deactivated.
5. Click on OK.
6. Click on Move to > Camera >> Head in the main menu.

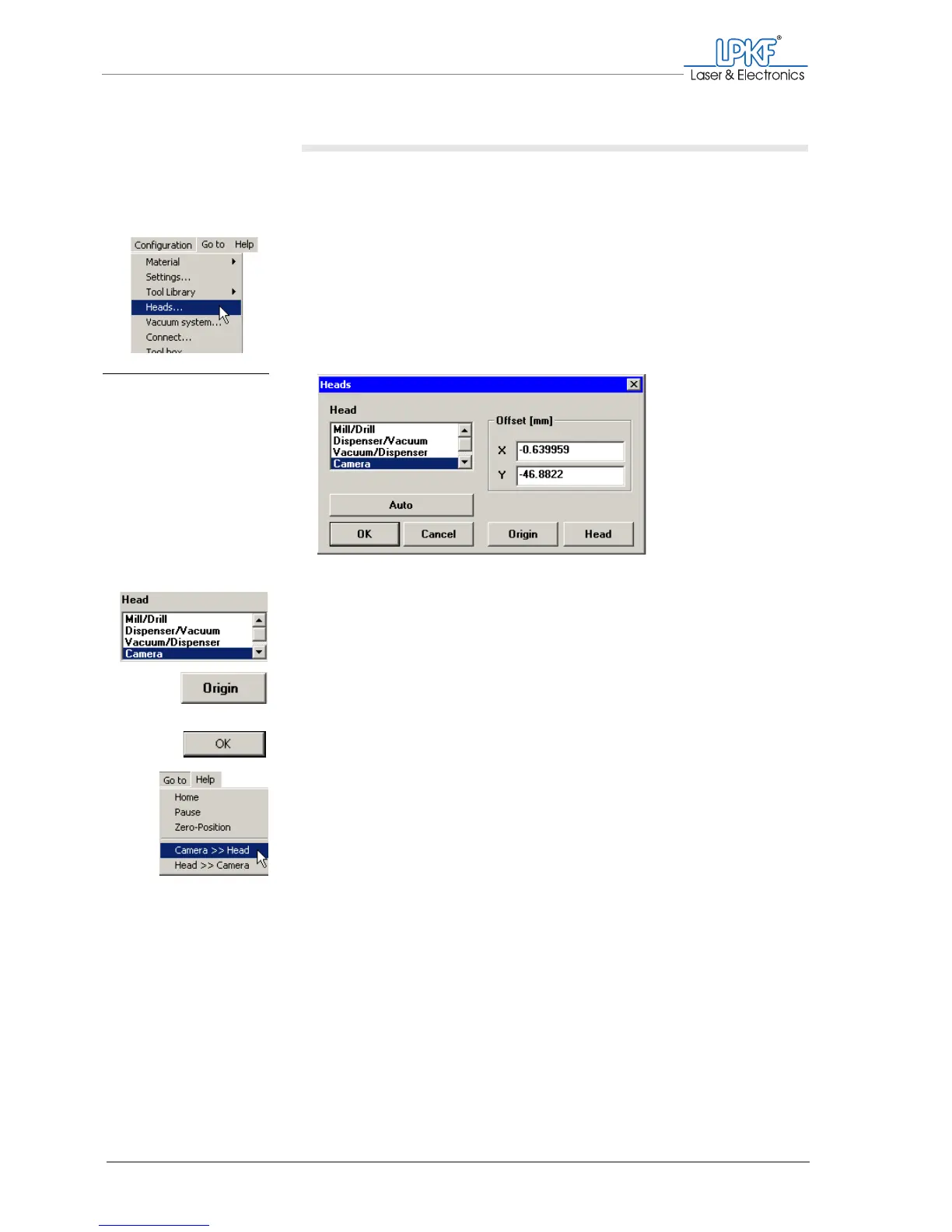

Fig. 69: Setting the camera
offset
