Connecting elements and rating plates

26 ProtoMat

S62

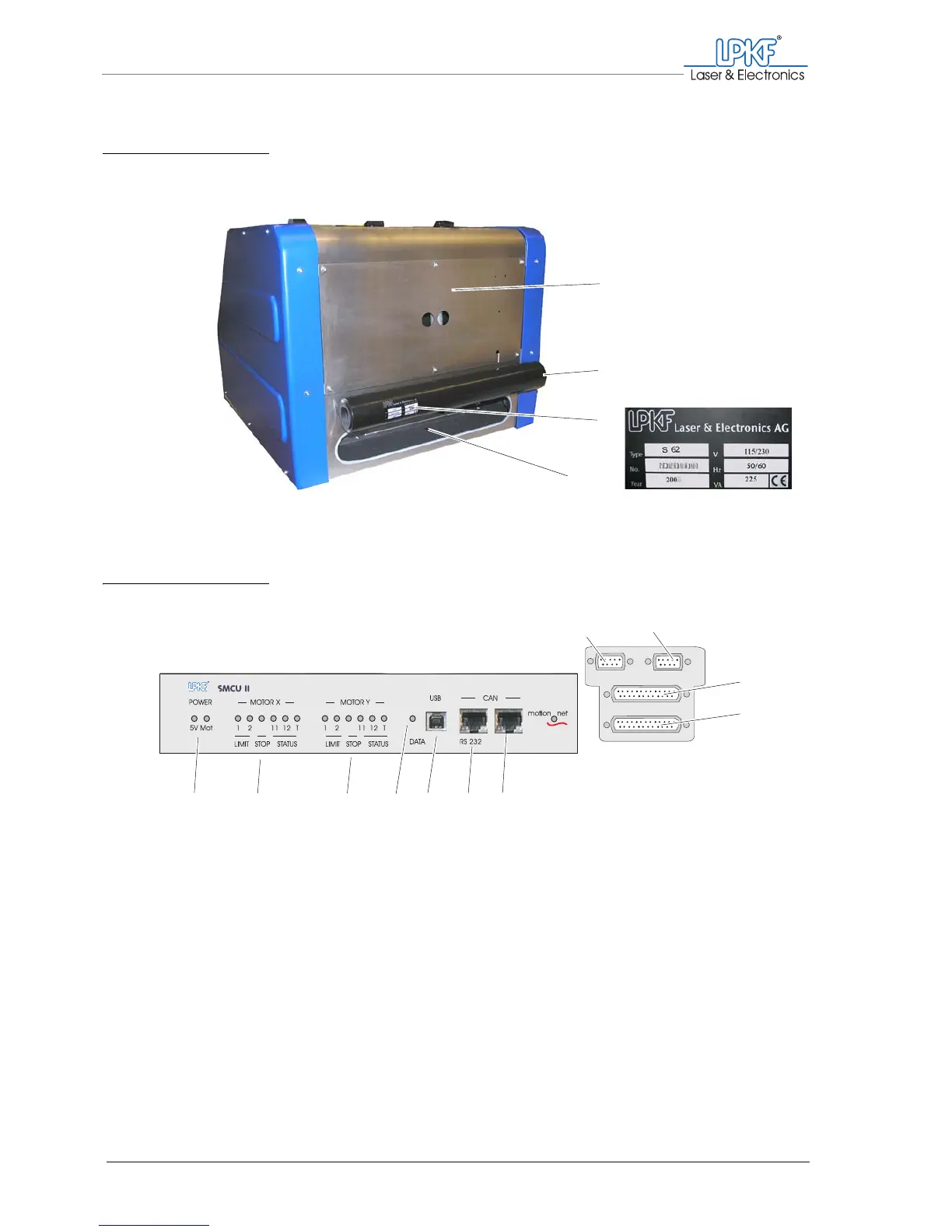

Fig. 7: Dust extraction and data connections

1 Acoustic cabinet (rear view)

2 Dust extraction

3 Rating plate

4 Control unit with data connections

Fig. 8: Control unit with data connections

1 Not used

2 StatusLight status signals (option)

3 Port 3 (dust extraction)

4 Port 4 (dust extraction)

5 RS 232

6 RS 232

7 USB (for service purposes only)

8 Data transfer indicator

9 Motor status indicator (y-axis)

10 Motor status indicator (x-axis)

11 Power indicator

(5 V electronic and motor voltage)

567891011
