3.4.1 Surface tools

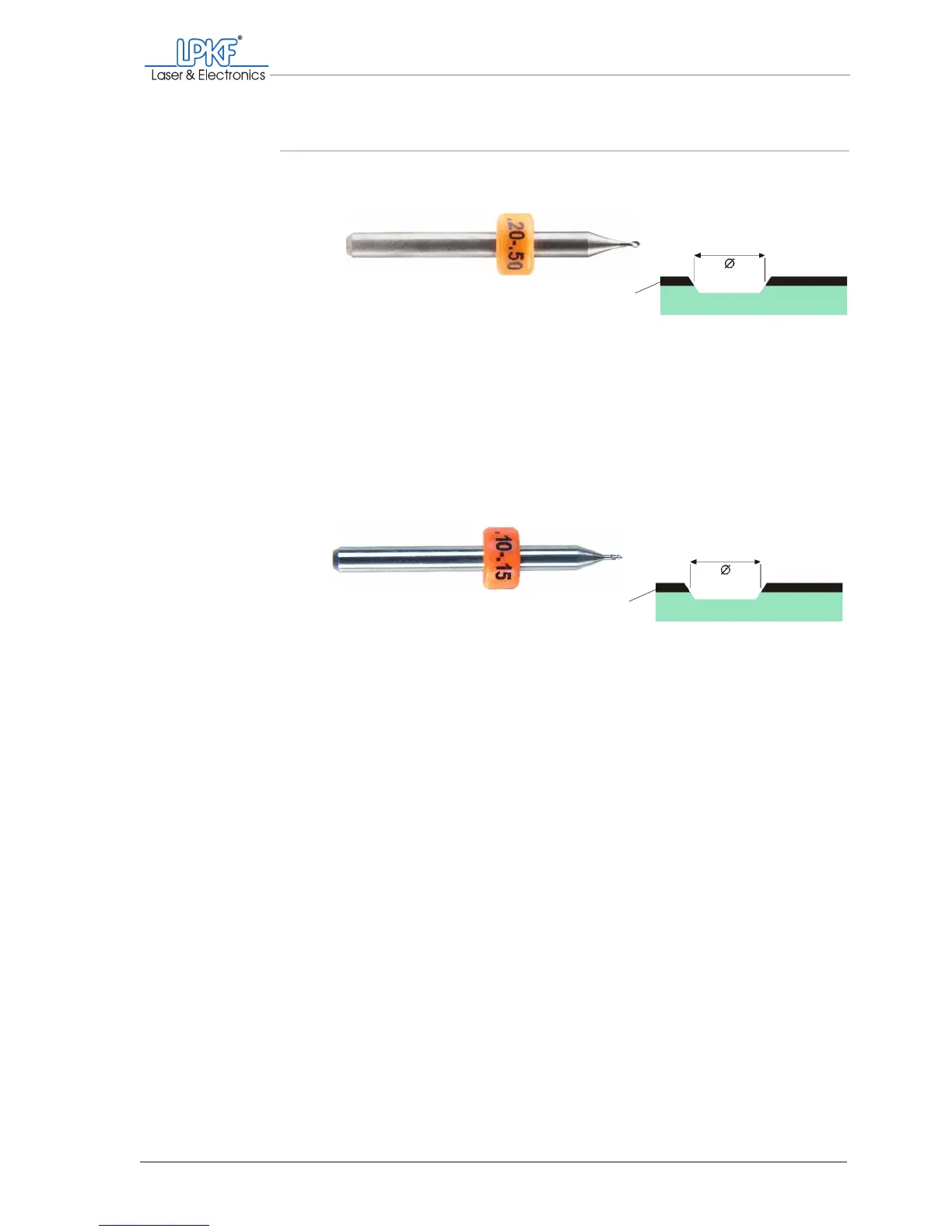

Universal Cutter 1/8"
Micro Cutter 1/8"
Application:
Milling insulation clearances of varying widths in cop-
per-plated base material. Use the milling depth setting
to define the milling width.
Colour:
Orange
Shape:
Conical
Milling widths:
0.2 mm – 0.5 mm (8 mil – 20 mil), variably adjustable
via penetration depth
0.2 - 0.5 mm
(8 - 20 mil)
Copper
Application
Fine insulation clearances with copper layer 18 µm
thick. Use the milling depth setting to define the milling
width.
Colour:
Orange
Shape:
Conical
Milling widths:
0.1 mm – 0.15 mm (4 mil – 6 mil), variably adjustable
via penetration depth
0.1 - 0.15 mm
(4 - 6 mil)
Copper
