Care and maintenance
Operating Manual 7.1 Rev.: 18.06.2008 125

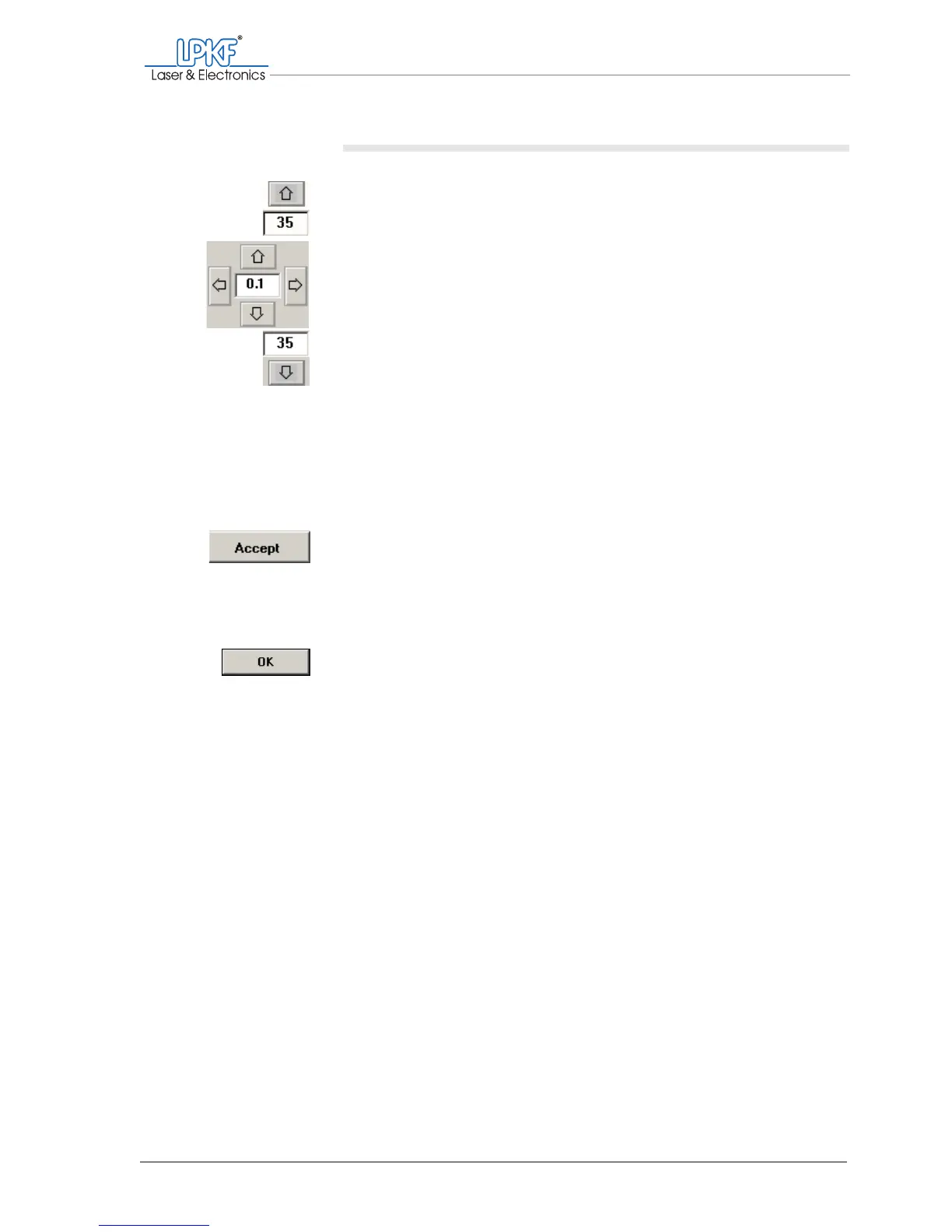

IV. Correcting the tool holder position
1. Click on Move to z+ to lift the milling/drilling head.
2. Use the Move to x/y buttons with 0.1 mm steps to correct the posi-
tion of the milling/drilling head above the tool magazine.
Click on Move to z-.
3. Correct the X/Y position until the milling/drilling head can be low-
ered without colliding with the tool.
4. Use the same procedure to make sure that the the milling/drilling
head does not take the tool out of the tool holder when it is lifted.
[ ] Once the milling/drilling head can be lowered and lifted without colliding
with the tool, the position data can be applied
5. In the Tool Box window, click on Accept .
The co-ordinates determined are applied to the changing position.
6. Repeat the test and correction functions as necessary for all tool
positions.
7. Click on OK to close the Tool magazine window.
8. Exit BoardMaster and restart the program to apply the values
saved in the INI file.
[ ] The configuration of the tool changing positions is complete.
