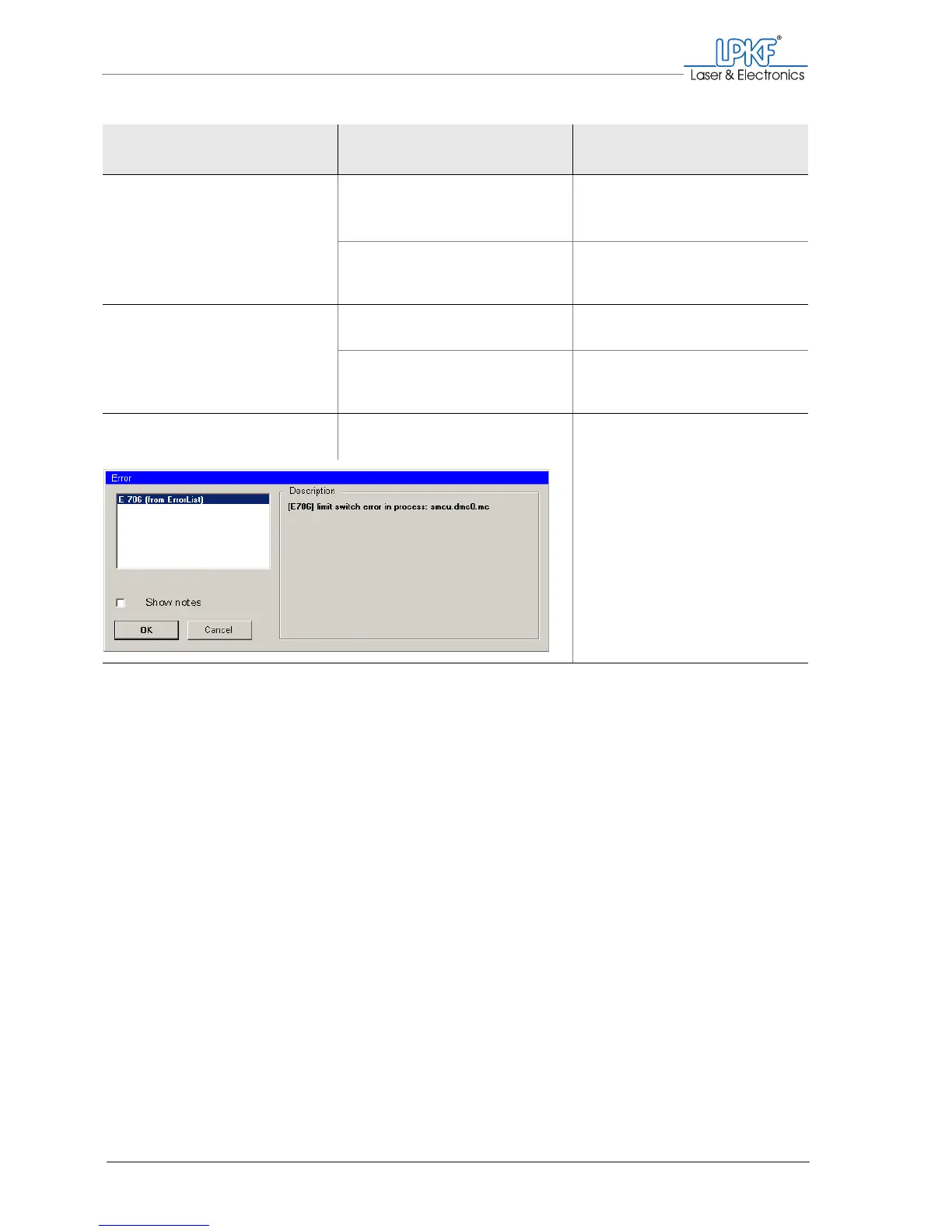

Error messages/Malfunctions

142 ProtoMat

S62

The milling/drilling head interlocks

with the tool during a tool change.

The tool has not been inserted

correctly.

The tool is loose in the tool holder.

Press the tool as far as it will go

into the tool holder.

The position of the tool holder is

not exact enough.

Read the position of the tool

holder in again (see "Care and

maintenance").

The tool is not being picked up/set

down.

Soiled collet chuck. Clean the collet chuck (see "Care

and maintenance").

Soiled tool holder. Clean the tool holder with a brush

or exhaust it with a vacuum

cleaner.

"E 706 (from ErrorList)" Milling/drilling head moved into the

limit switch

Click on OK.

Restart BoardMaster.

Error message

Fault description

Possible cause

Notes

Remedy

(Page 2 of 2)
