Usable tools

38 ProtoMat

S62

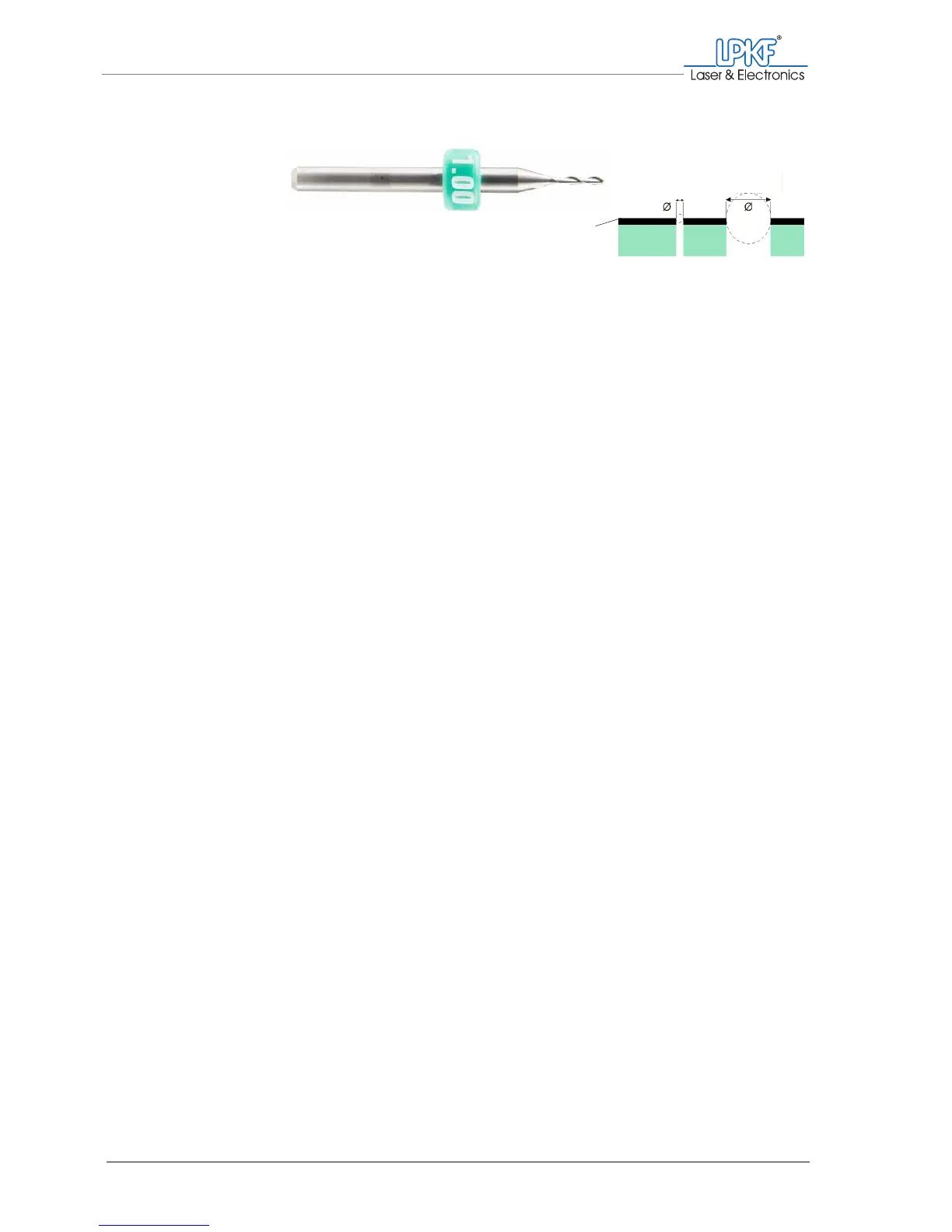

Drill (Spiral Drill)

Application:

Bores penetrating the material.

Colour:

Green

Shape:

Cylindrical

Available diame-

ters:

0.20 mm (8 mil)

0.30 mm (12 mil)

0.40 mm (16 mil)

0.50 mm (20 mil)

0.60 mm (24 mil)

0.70 mm (28 mil)

0.80 mm (31 mil)

0.85 mm (33 mil)

0.90 mm (35 mil)

1.00 mm (39 mil)

1.10 mm (43 mil)

1.20 mm (47 mil)

1.30 mm (51 mil)

1.40 mm (55 mil)

1.50 mm (59 mil)

1.60 mm (63 mil)

1.70 mm (67 mil)

1.80 mm (71 mil)

1.90 mm (75 mil)

2.00 mm (79 mil)

2.10 mm (83 mil)

2.20 mm (87 mil)

2.30 mm (91 mil)

2.40 mm (94 mil)

2.95 mm (116 mil)

3.00 mm (118 mil)

min. 0.2 mm

(8 mil)

Copper

max. 3.0 mm

(118 mil)
