106 EGR COOLER AND TUBING

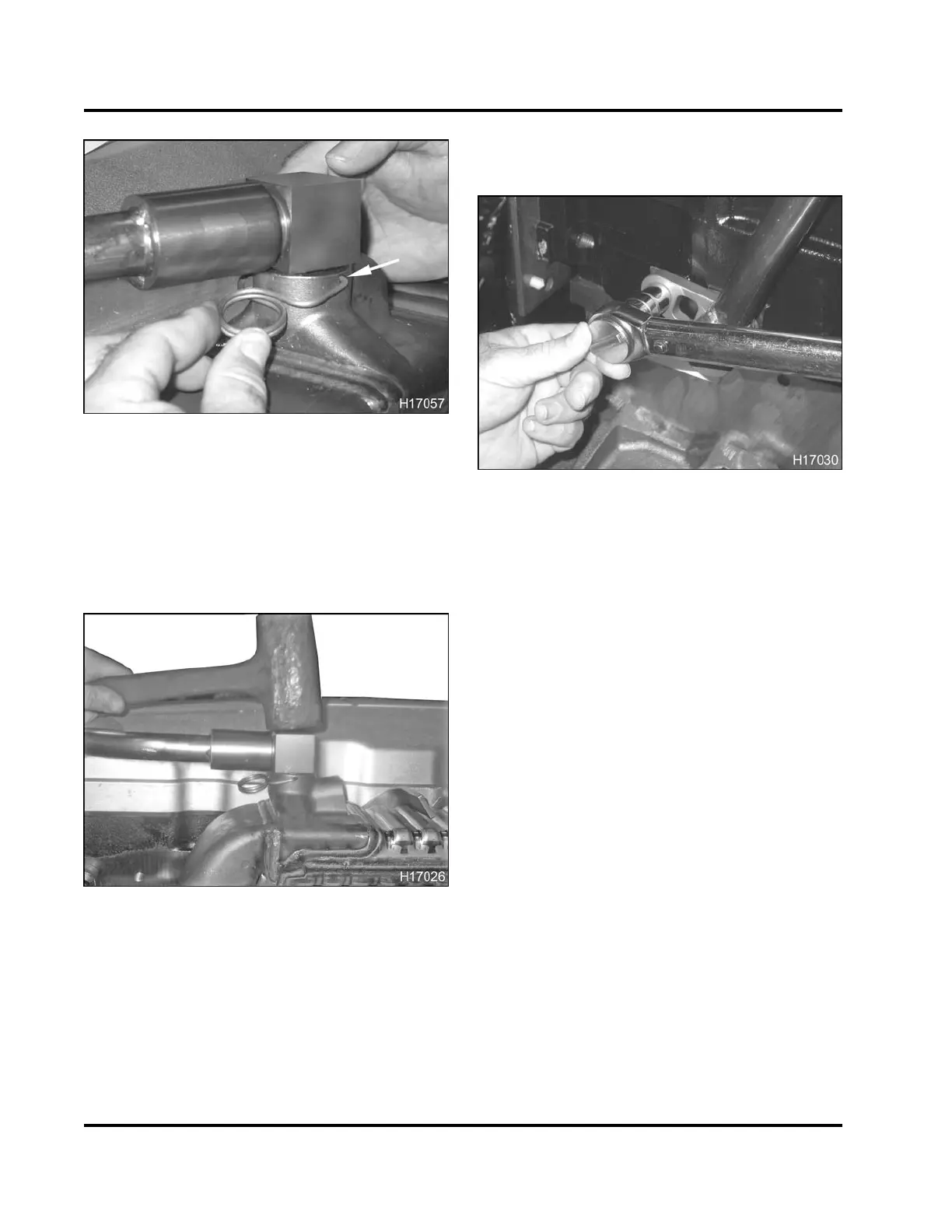

Figure 122 Installing the retaining clip (outboard
hole first)
9. Ensure that EGR cooler elbow and return tube
are straight. Hand seat elbow downward as far
as possible and install wire retaining clip into
outboard hole of EGR cooler and slide retaining
clip around into remaining hole.
Figure 123 Seating
the EGR cooler elbow and
retaining clip
10. Tap top of EGR cooler elbow with rubber mallet to
ensure retaining clip is fully engaged in elbow.
Figure 124 Torquing the EGR cooler return tube
mounting bolt
11. Torque EGR cooler return tube mounting bolt
to the standard torque value (General Torque
Guidelines, page445).
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© 2009 Navistar, Inc.
