EGR COOL ER AND TUBING 107

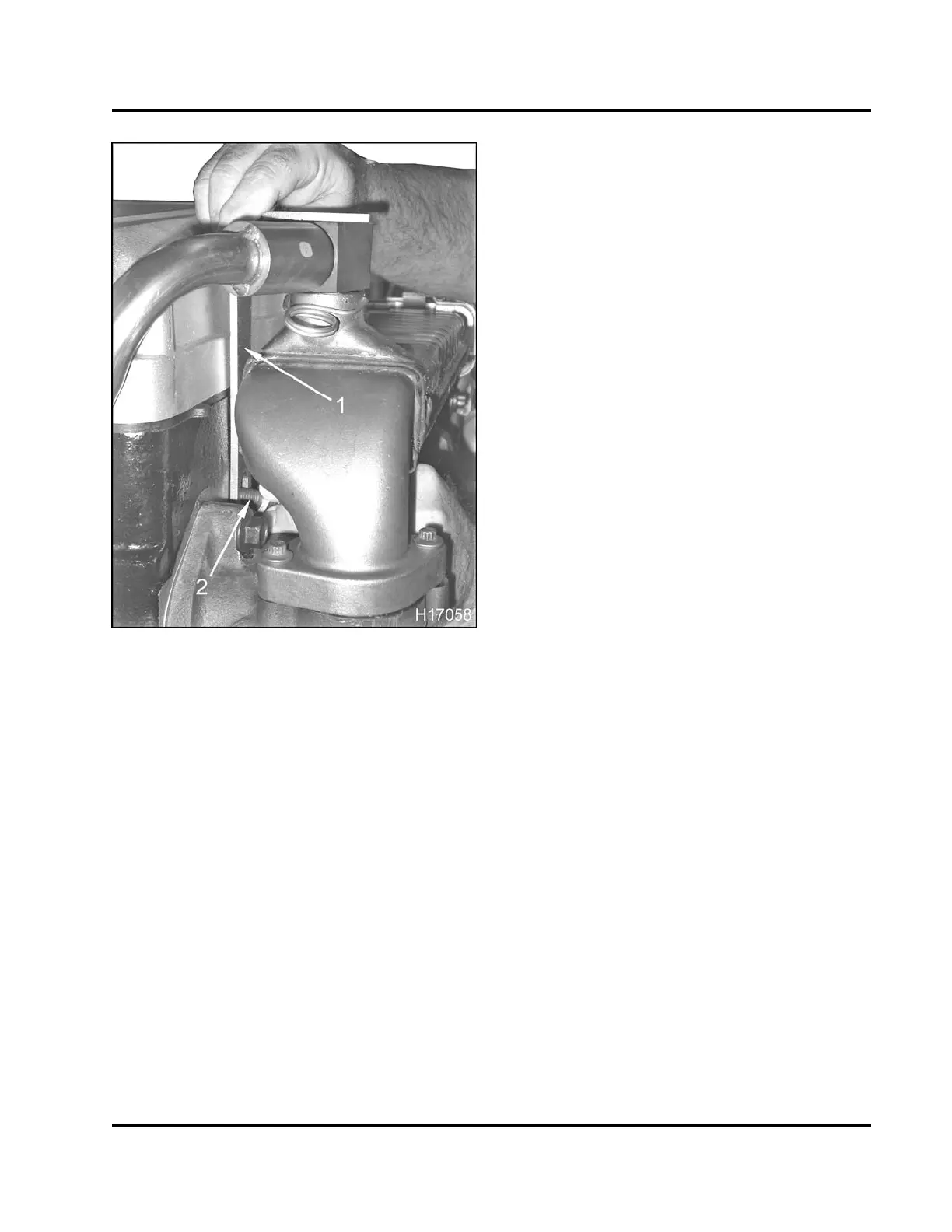

Figure 125 Installing the EGR elbow bracket and
mounting hardware
1. Bracket
2. M10 x 25 Bolt and 3/8 flat washer
12. If equipped, slide elbow retaining bracket between
cylinder head and EGR cooler assembly. Install
flat washer and M10 x 25 bolt. Tighten bolt to
the standard torque (General Torque Guidelines,
page445).
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© 2009 Navistar, Inc.
