118 CYLINDER HEAD AND VALVE TRAIN

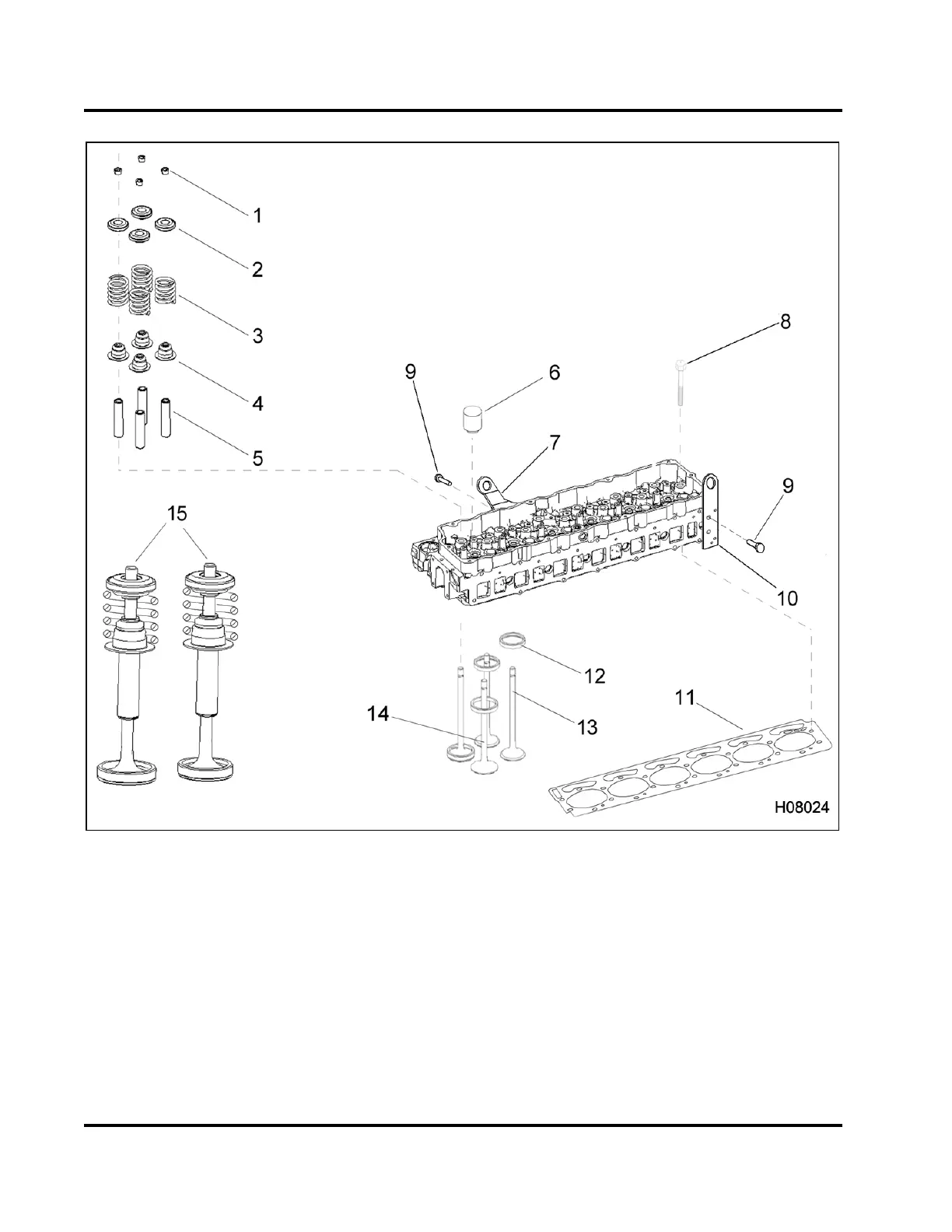

Figure 135 Cylinder head and valve train components
1. Valve spring retainer keys
2. Valve rotators
3. Valve springs
4. Valve stem seals
5. Valve guide inserts
6. Fuel injector sleeve
7. Front lifting eye
8. Cylinder head bolt, (26)
9. Bolt, M12 x 25 (4)
10. Rear lifting eye
11. Cylinder head gasket
12. Valve seat insert
13. Exhaust valve
14. Intake valve
15. Valve assemblies
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© 2009 Navistar, Inc.
