CYLINDER HEAD AND VALVE TRAIN 119

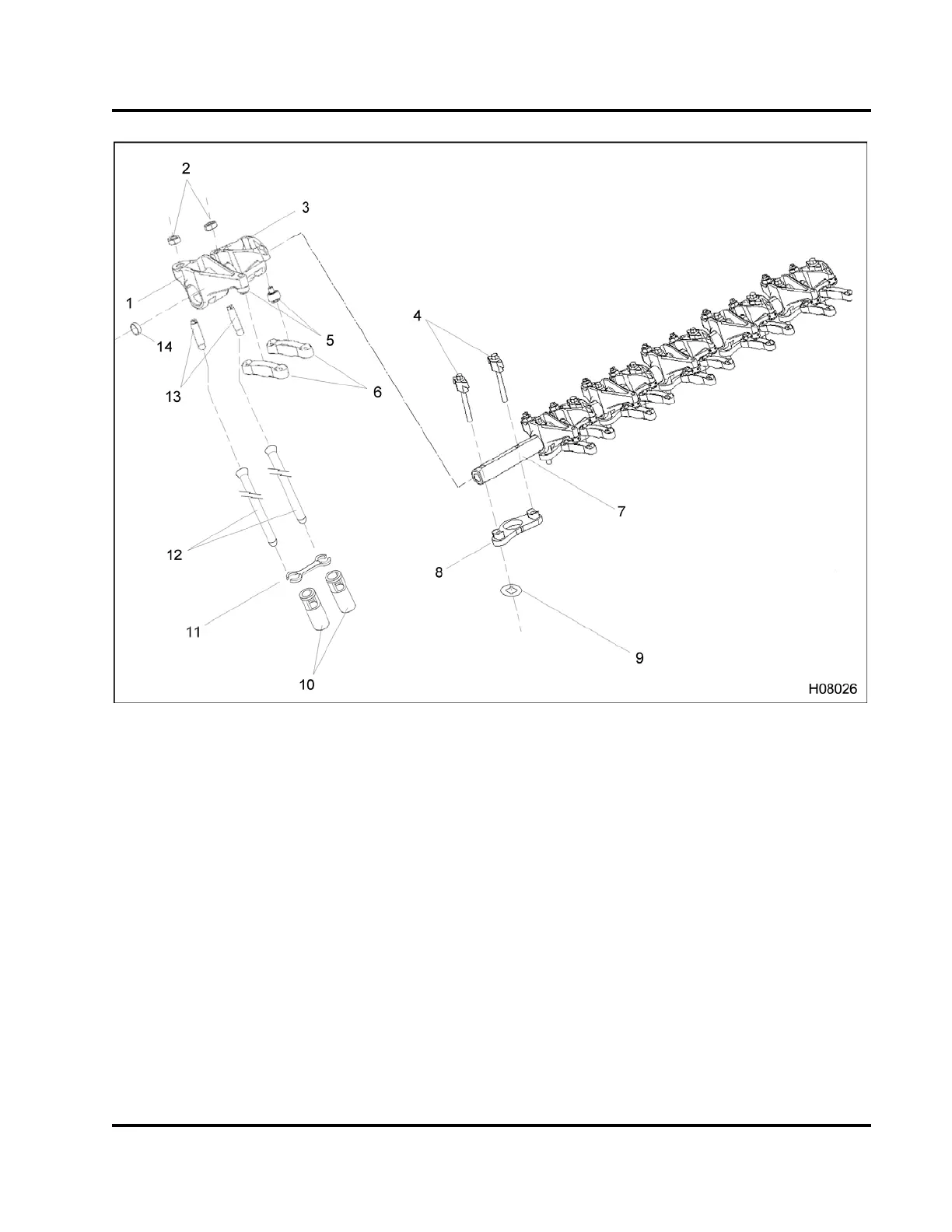

Figure 136 Valve train components
1. Intake rocker arm (6)
2. Valve lash adjustment nuts, M10
(12)
3. Exhaust rocker arm (6)
4. Rocker shaft clamp assembly
(12)
5. Rocker pivots (12)
6. Valve bridge (12)
7. Rocker arm shaft
8. Rocker shaft support (6)
9. Lower support washer (6)
10. Roller tappets (12)
11. Roller tappet guide (6)
12. Push rods (12)
13. Valve lash adjuster screw, M10
(12)
14. Rocker shaft plug (2)
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© 2009 Navistar, Inc.
