284 OIL SYSTEM MODULE ASSEMBLY AND SECONDARY FILTRATION

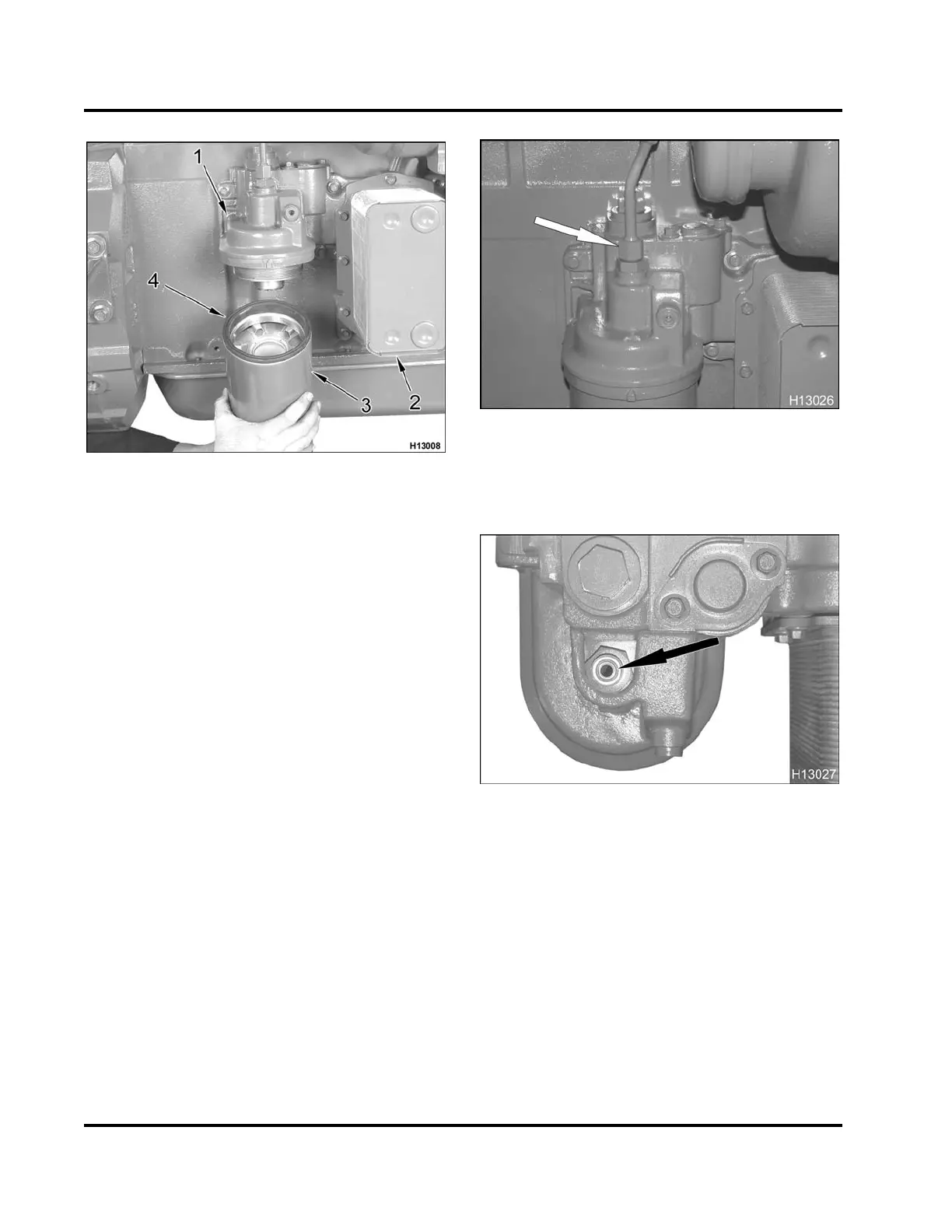

Figure 407 Removing the oil filter
1. Oil system module assembly
2. Oil cooler
3. Oil filter
4. Gasket
8. Place an oil drain pan under oil filter. After
waiting for oil to cool down, remove, drain, and
discard oil filter. Dispose or recycle oil and filter
in accordance with local regulations.
Figure 408 VGT oil supply tubing
9. Remove the VGT oil supply tube fitting from the
oil system module assembly.
Figure 409 VGT oil s upply tubing O-ring
10. Remove the VGT oil supply tube O-ring and
discard.
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
