LB9 User’s Guide 1045/1523

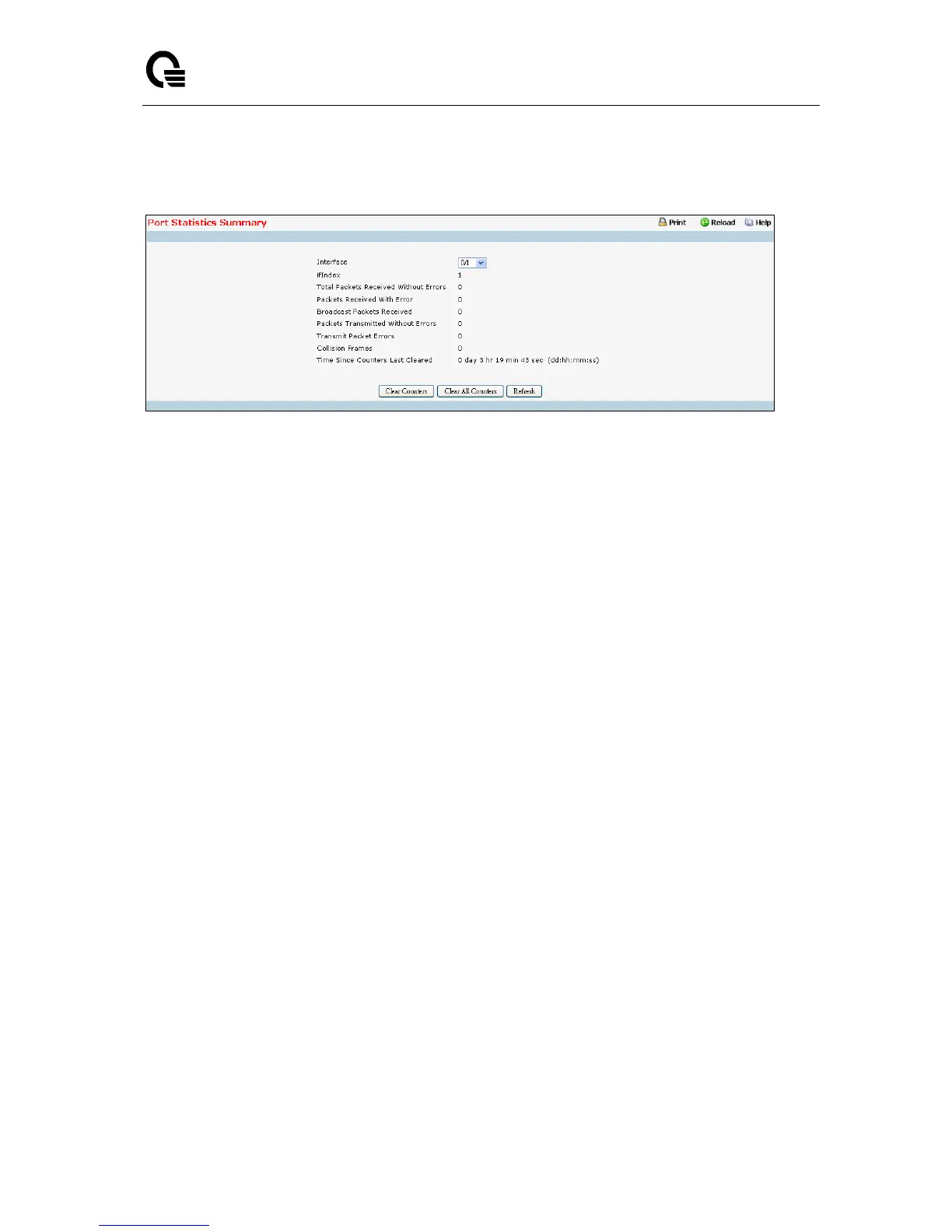

11.2.7.4 Viewing Each Port Summary Statistics Page
Selection Criteria
Interface - Selects the interface for which data is to be displayed or configured.
Non-Configurable Data
ifIndex - This object indicates the ifIndex of the interface table entry associated with this port on an
adapter.
Total Packets Received without Errors - The total number of packets received that were without
errors.
Packets Received with Errors - The number of inbound packets that contained errors preventing
them from being deliverable to a higher-layer protocol.
Broadcast Packets Received - The total number of good packets received that were directed to the
broadcast address. Note that this does not include multicast packets.
Packets Transmitted without Errors - The number of frames that have been transmitted by this
port to its segment.
Transmit Packet Errors - The number of outbound packets that could not be transmitted because
of errors.
Collision Frames - The best estimate of the total number of collisions on this Ethernet segment.
Time Since Counters Last Cleared - The elapsed time, in days, hours, minutes, and seconds since
the statistics for this port were last cleared.
Command Buttons
Clear Counters - Clears all the counters, resetting all statistics for this port to default values.
Clear All Counters - Clears all the counters for all ports, resetting all statistics for all ports to default
values.
Refresh – Refreshes the data on the screen with the present state of the data in the switch.
